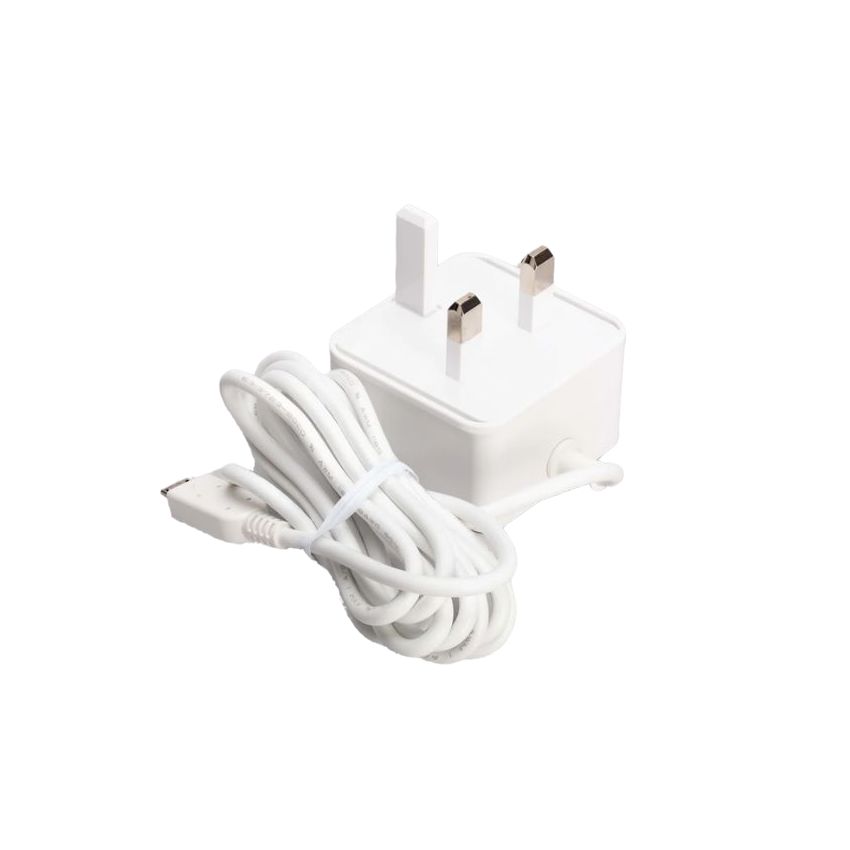

SC0625,Official Raspberry Pi Micro USB Power Supply – 5.1V 2.5A (UK Plug) for Raspberry Pi Zero & Pi 3

SKU
PPPS0298
Part Number
SC0625
Brand:
Pre-Order
Estimated Delivery: 2 - 3 Weeks
Add to Wish List

Guarantee safe & secure checkout

UK 3-pin power supply Micro-USB Output : Output voltage: 5.1V DC Minimum load current: 0.0A Nominal load current: 2.5A Maximum power: 12.5W Load regulation: ±5% Line regulation: ±2% Ripple & noise: 120mVp-p Rise time: 100ms maximum to regulation limits for DC outputs Turn-on delay: 3000ms maximum at nominal input AC voltage and full load Protection: Short circuit protection Overcurrent protection Efficiency: 80.73% minimum (output current from 100%, 75%, 50%, 25%) Output cable: 1.5m 18AWG Output connector: micro USB Input : Voltage range: 100–240Vac (rated) 96–264Vac (operating) Frequency: 50/60Hz ±3Hz Current: 0.5A maximum Power consumption (no load): 0.075W maximum Operating ambient temperature 0–40°C Inrush current: No damage shall occur and the input fuse shall not blow
