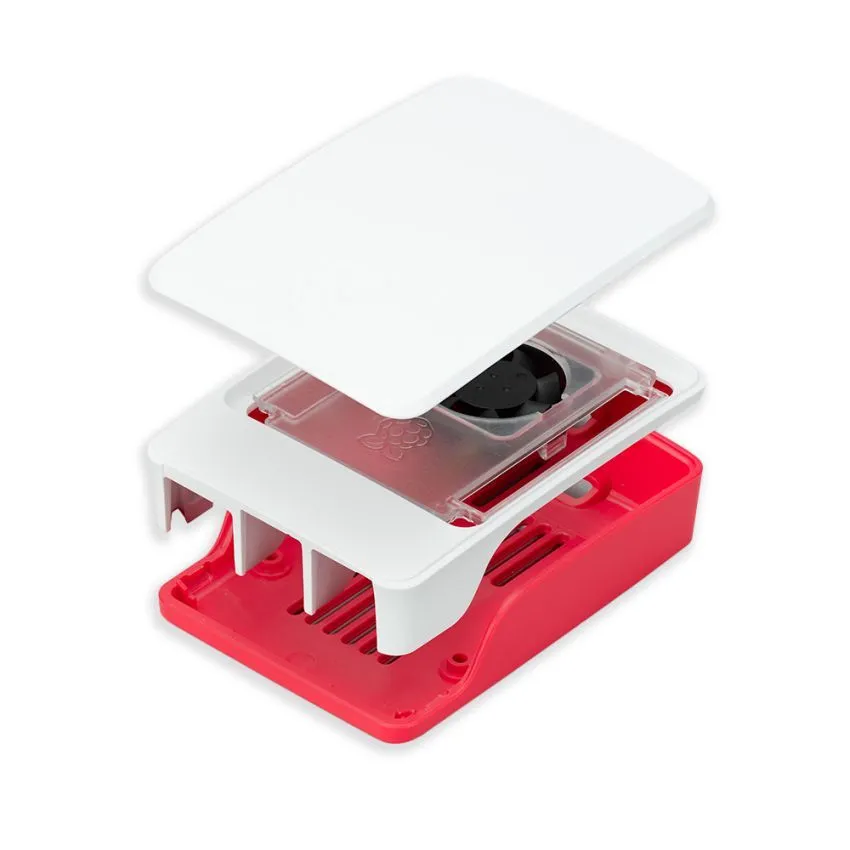

SC1159, Raspberry Pi 5 Case Red/White

Overview

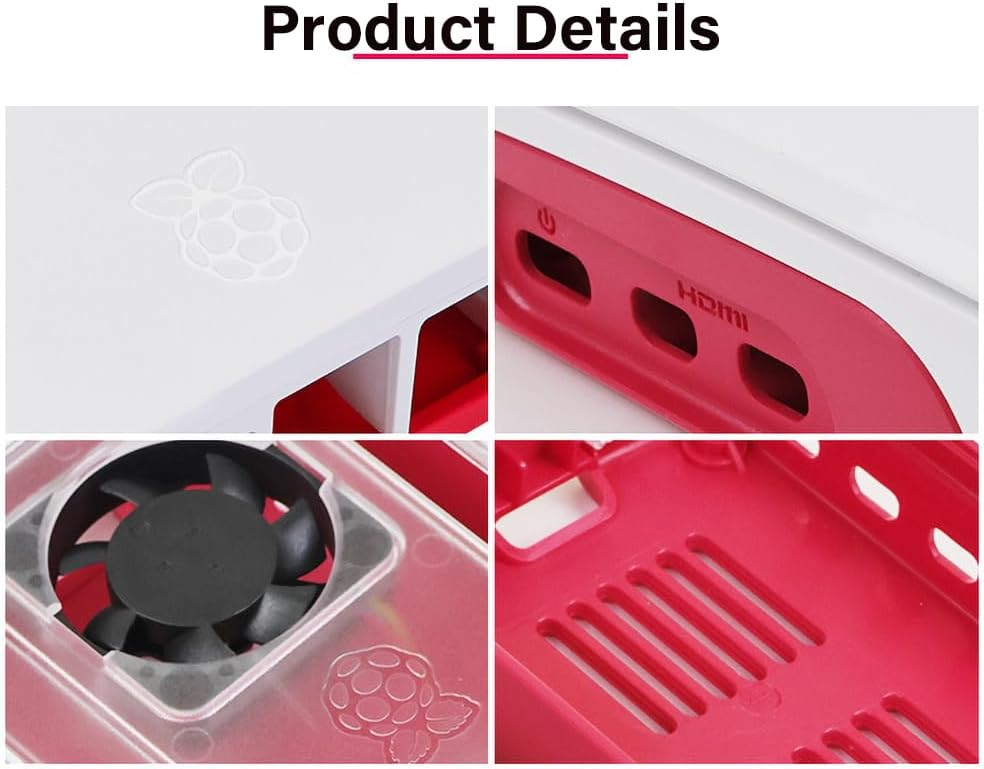

The Raspberry Pi Case for Raspberry Pi 5 is a four-part, clip-together enclosure with an integrated active cooling fan. Designed to keep the Raspberry Pi 5 running at optimal temperatures, even under heavy load.

Features

• Integrated, temperature-controlled cooling fan that connects directly to the Raspberry Pi 5's fan connector.

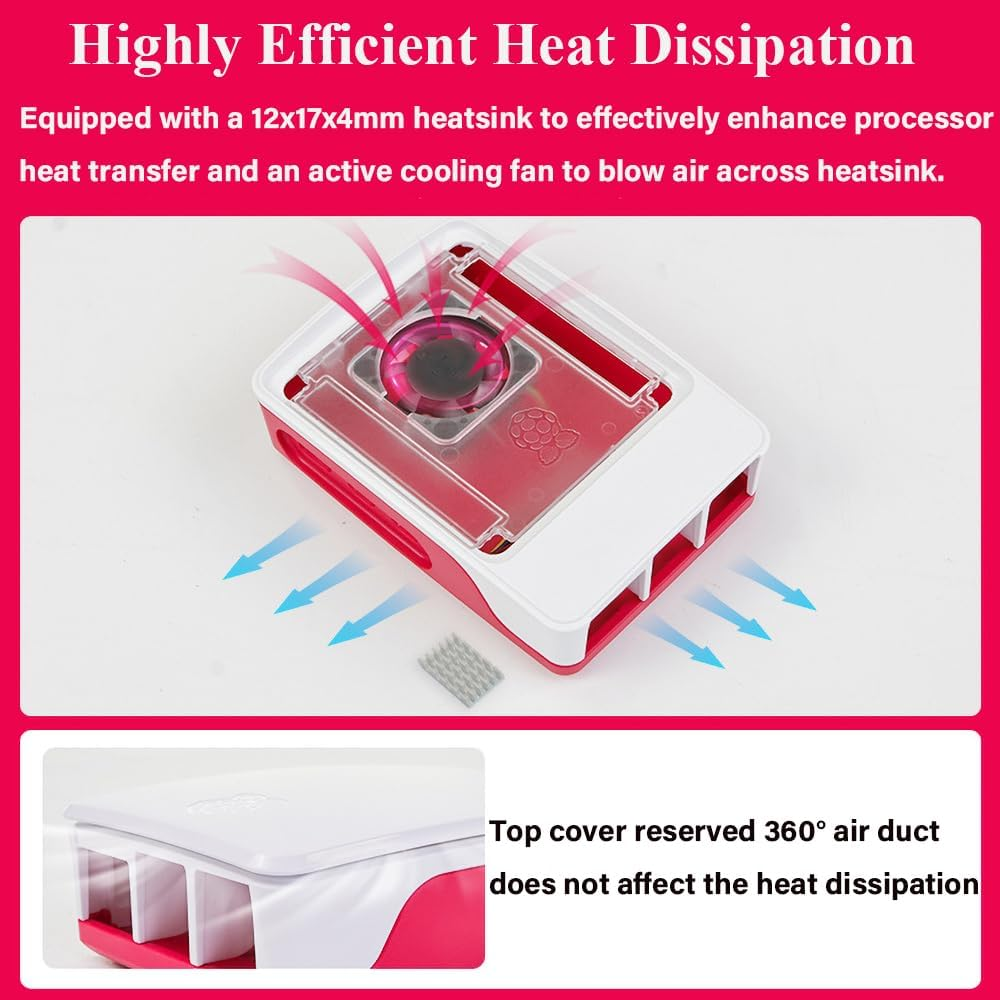

• 12mm × 17mm × 4mm heatsink with a self-adhesive pad to enhance heat dissipation from the processor.

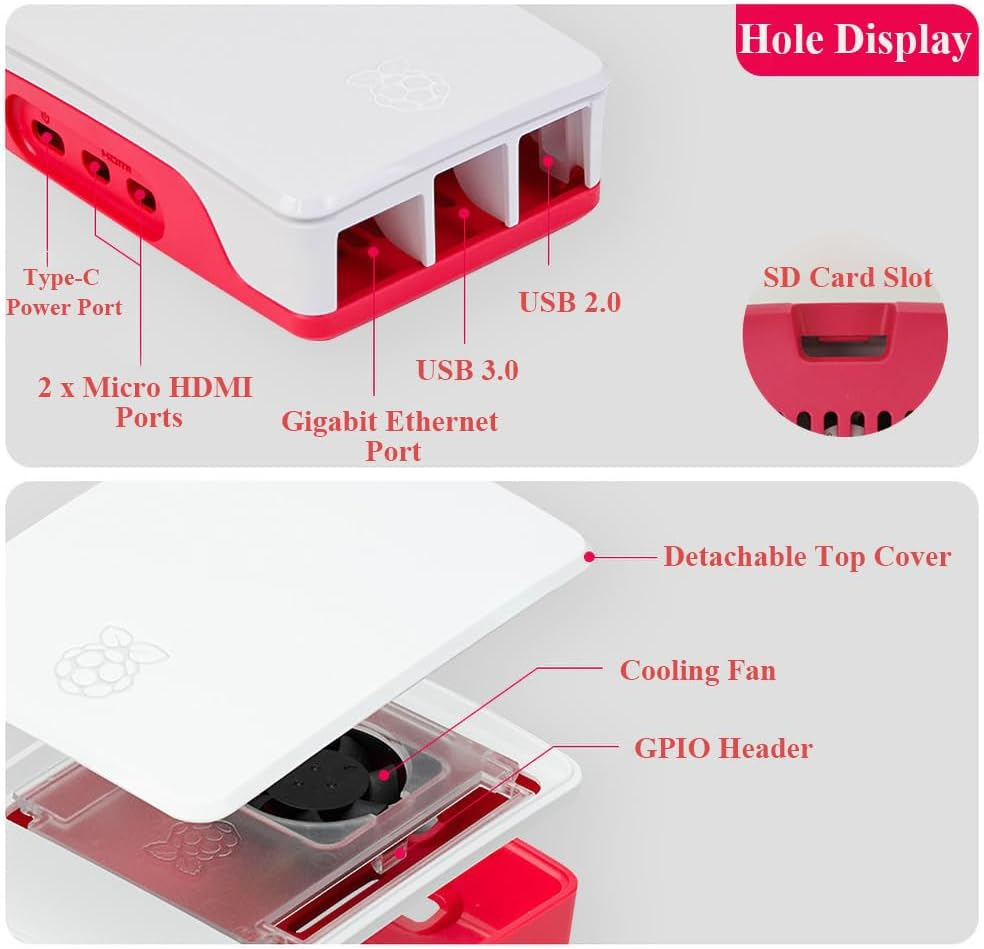

• Removable lid that allows easy access to the fan and a breakout slot for cables and GPIO.
• Built-in mounting features for case stacking, enabling easy expansion.
• HATs can be mounted to the enclosure using stand-offs and GPIO header extenders (not included).
• Includes four silicone feet to provide stability for the case.

Specifications

• Input voltage: 5V DC, supplied via the four-pin fan header on Raspberry Pi 5.
• Fan speed control: Pulse Width Modulation (PWM) with tachometer for precise control.
• Maximum airflow: 2.79 CFM.
• Maximum fan speed: 8000 RPM +/- 15%.
• Case material: ABS for the base, frame, and lid, and PC for the fan assembly.
