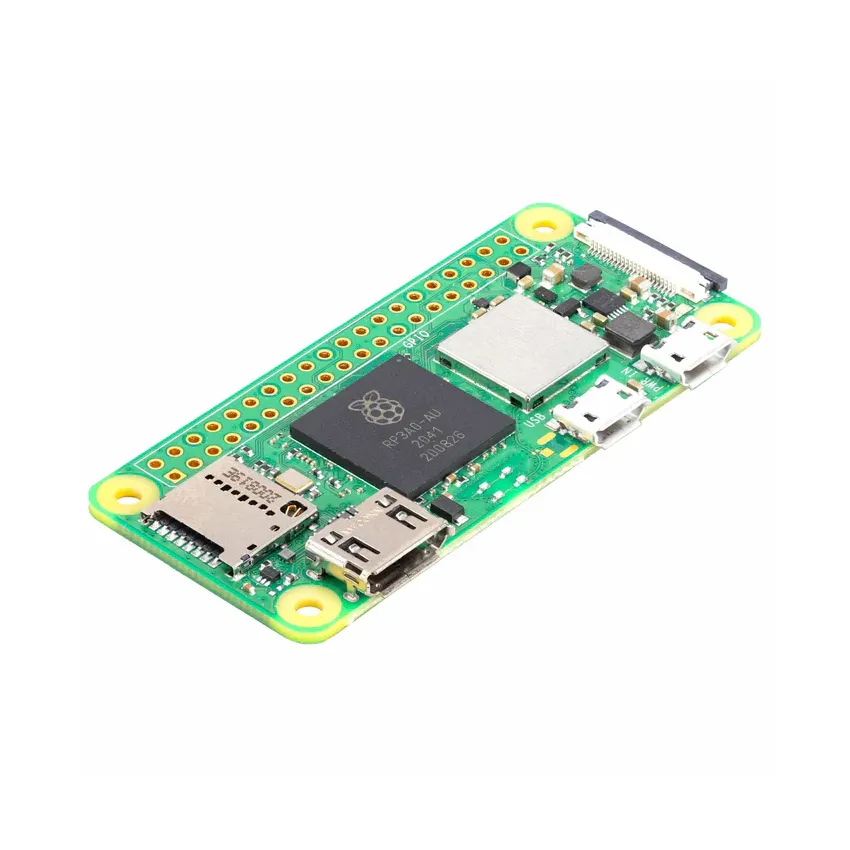

SC1146 , Raspberry Pi Zero 2 W

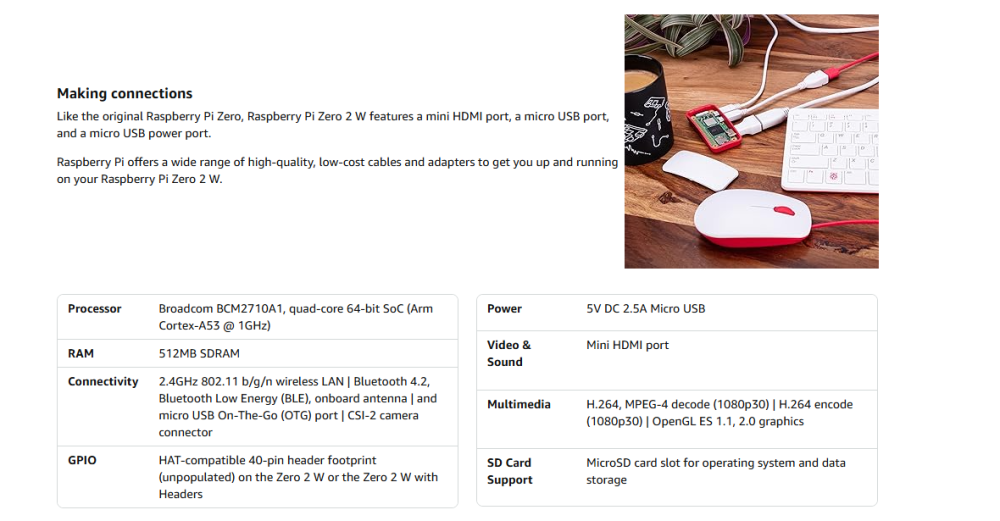

Specifications

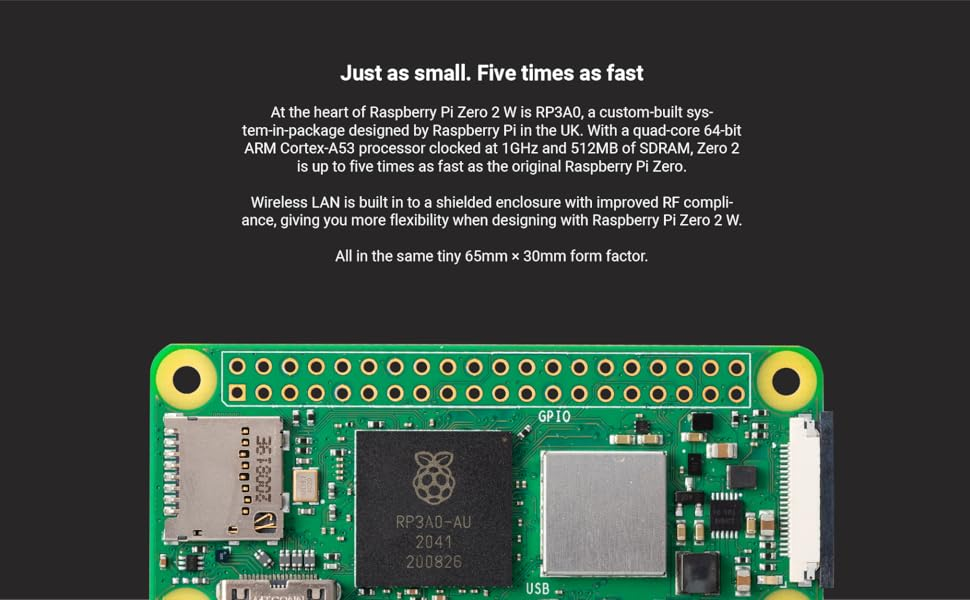

• Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
• Memory: 512MB LPDDR2

Connectivity

• 2.4GHz IEEE 802.11b/g/n wireless LAN
• Bluetooth 4.2
• Bluetooth Low Energy (BLE)
• Onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• MicroSD card slot
• Mini HDMI port
• CSI-2 camera connector

Video

• HDMI interface
• Composite video (via test points)

Multimedia

• H.264
• MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics

Power and Dimensions

• Input Power: 5V DC 2.5A
• Dimensions: 65mm × 30mm
• Operating Temperature: -20°C to +70°C

Production Lifetime

The Raspberry Pi Zero 2 W will remain in production until at least January 2028.
