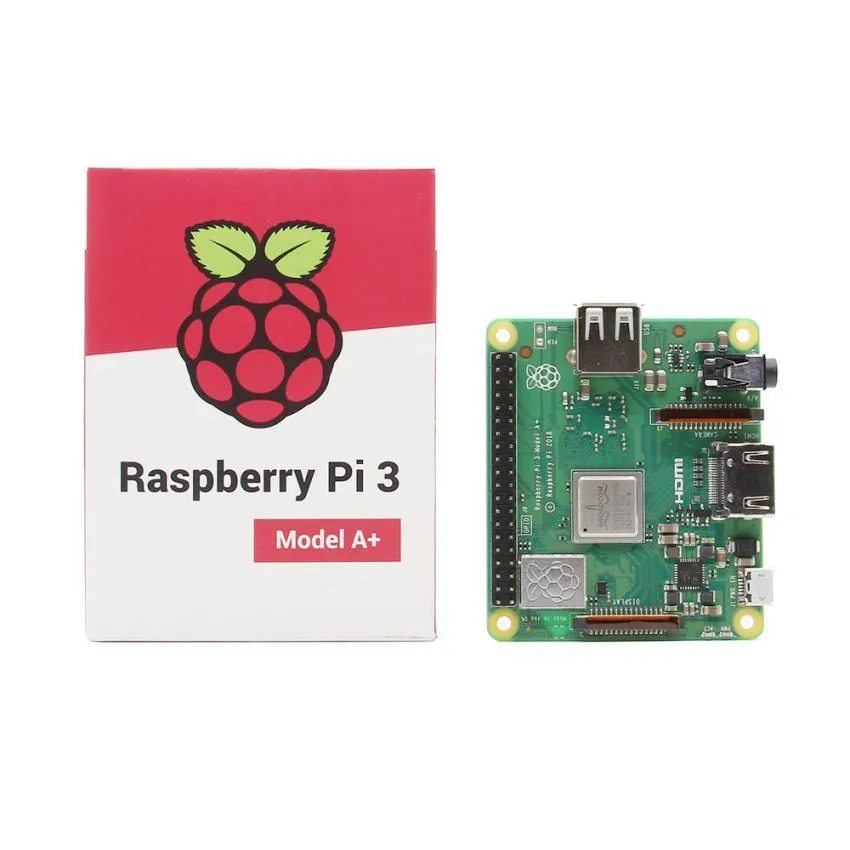

SC0130(J) ,Raspberry Pi 3 Model A+

Compact and Powerful Raspberry Pi Board

The Raspberry Pi 3 Model A+ is a streamlined yet capable member of the Raspberry Pi 3 range. Featuring a 64-bit quad-core processor, dual-band wireless LAN, and Bluetooth 4.2/BLE, it delivers robust performance in a lightweight and compact form factor. Its modular compliance certification simplifies integration into end products, reducing costs and time to market.

With a single USB port, it’s designed for minimalism. Pair it with compatible peripherals like the Official Raspberry Pi Keyboard & Mouse combo or a wireless keyboard set for efficient connectivity.

Key Features

• Broadcom BCM2837B0 64-bit quad-core Cortex-A53 processor @ 1.4 GHz.
• Dual-band 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN.
• Bluetooth 4.2/BLE for enhanced connectivity.
• Lightweight design (29g) with a compact footprint (65mm x 52.5mm).
• Modular compliance certification for seamless integration into end products.

Specifications

Processor

Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz.

Memory

512MB LPDDR2 SDRAM.

Connectivity

Dual-band wireless LAN (2.4 GHz & 5 GHz).

Bluetooth 4.2/BLE.

Access

Extended 40-pin GPIO header.

Video & Sound

• 1 × full-size HDMI.
• MIPI DSI display port.
• MIPI CSI camera port.
• 4-pole stereo output and composite video port.

Multimedia

• H.264, MPEG-4 decode (1080p30).
• H.264 encode (1080p30).
• OpenGL ES 1.1, 2.0 graphics.

SD Card Support

Micro SD format for operating system and data storage.

Input Power

5 V/2.5 A DC via micro USB connector.

5 V DC via GPIO header.
