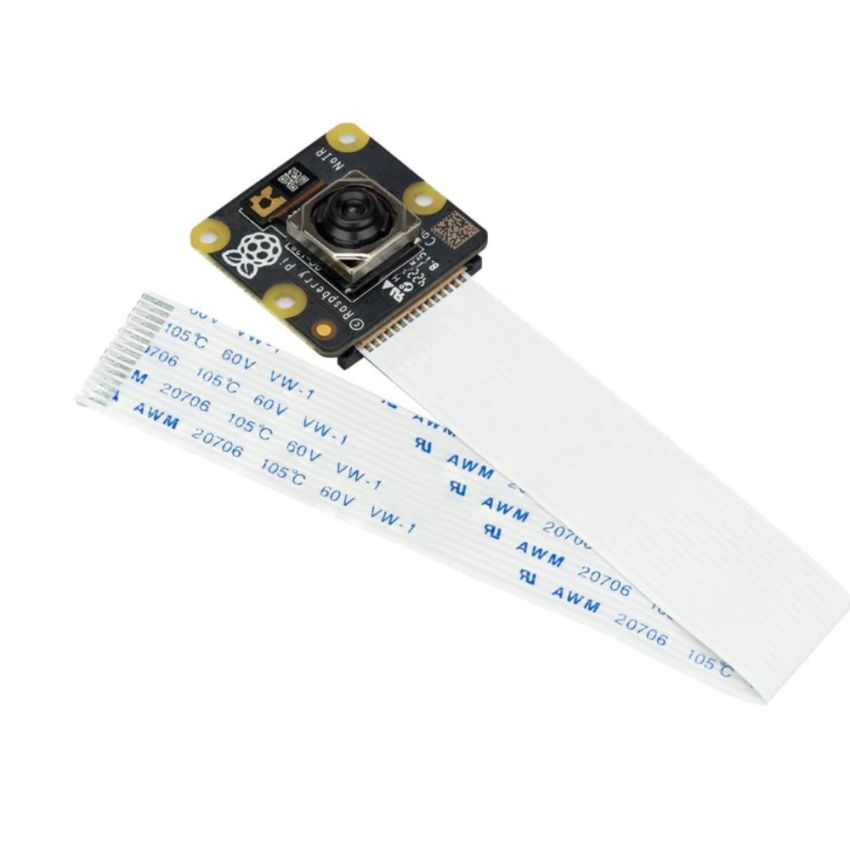

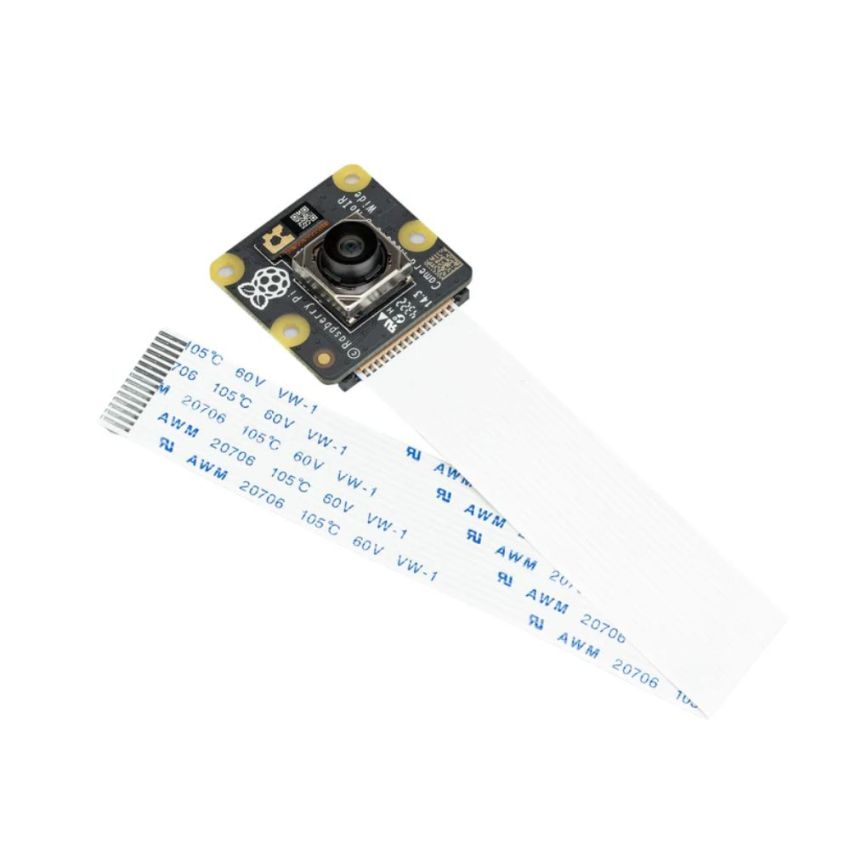

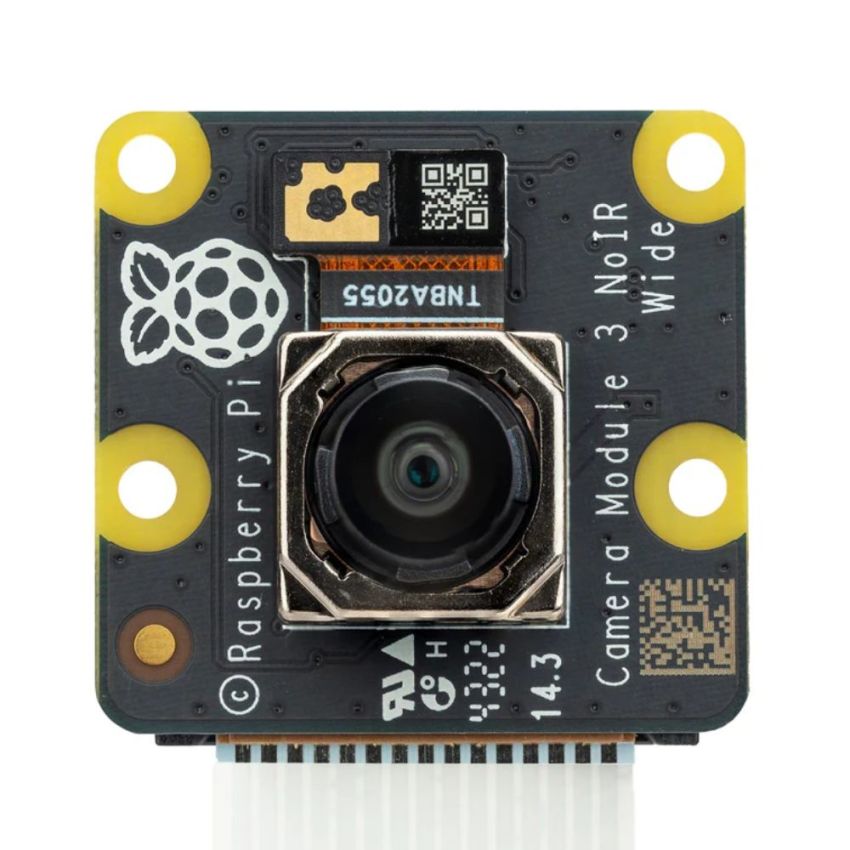

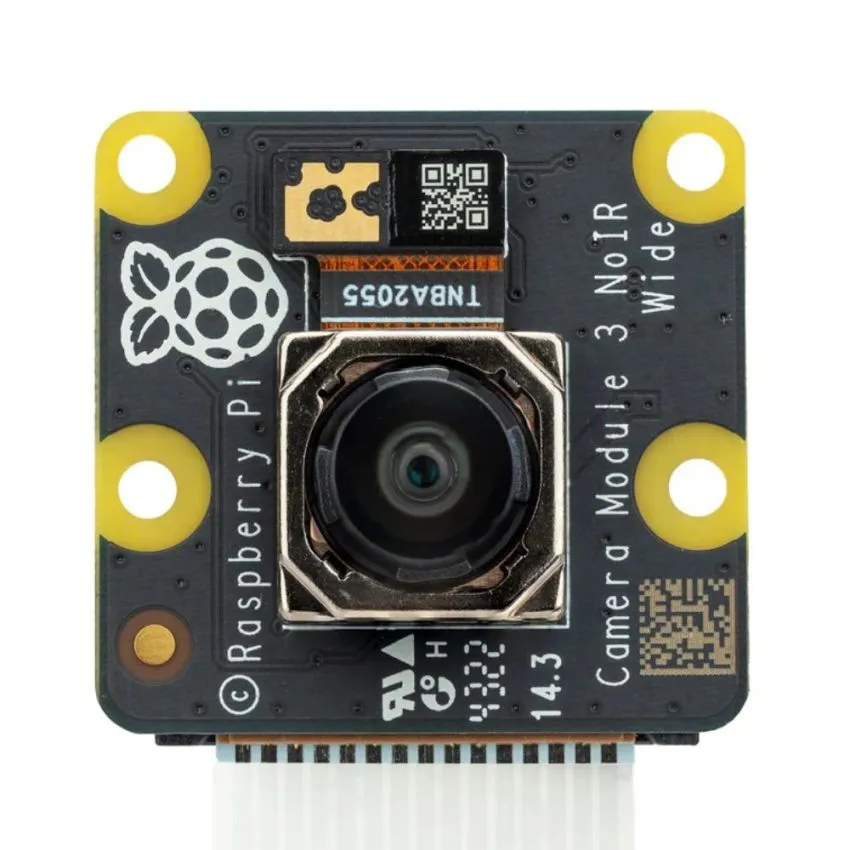

SC0875 , Raspberry Pi Camera Module 3 NoIR Wide-angle

The Raspberry Pi Camera Module 3 NoIR is a cutting-edge camera module offering advanced features like a 12 Megapixel Sony IMX708 image sensor, autofocus, HDR support, and improved low-light sensitivity. The NoIR version is infrared-sensitive, perfect for infrared photography and low-light environments. The wide-angle lens offers a 120° diagonal field of view, making it suitable for various Raspberry Pi projects. The camera is compatible with Raspberry Pi boards with a full-size camera connector, but for Raspberry Pi 5 or Zero, an adapter cable is required.

Key Features :

■ Sensor: Sony IMX708

■ Resolution: 4608 x 2592 pixels

■ Lens Types:

Standard: 75° field of view

Wide: 120° field of view

■ Autofocus: Phase Detection Autofocus (PDAF)

■ Sensor Size: 7.4mm sensor diagonal

■ Pixel Size: 1.4μm x 1.4μm

■ Video Modes: 1080p50, 720p100, 480p120

■ Data Output: RAW10, CSI-2 serial

■ Field of View:

Standard: 75° (at 16:9)

Wide: 120° (at 16:9)

■ Focus Range:

Standard: 10cm - Infinity

Wide: 5cm - Infinity

■ Lens:

Standard: Effective focal length 4.74mm, f/1.8

Wide: Effective focal length 2.75mm, f/2.2

■ Infrared Cut Filter: Not present (NoIR)

■ Autofocus System: Phase Detection Autofocus

■ Compliance: FCC, EMC, RoHS, and CE

■ Dimensions: 25mm x 24mm x 11.5mm (Wide variants: 12.4mm height)

■ Ribbon Cable Length: 150mm

■ Cable Connector: 15 x 1mm FPC

Compatibility

■ Compatible with Raspberry Pi boards with a full-size CSI connector

■ Requires an adapter cable for Raspberry Pi 5 or Raspberry Pi Zero

Additional Information

■ The Camera Module 3 is software compatible with libcamera only

■ Available for use in Raspberry Pi OS with updated drivers
