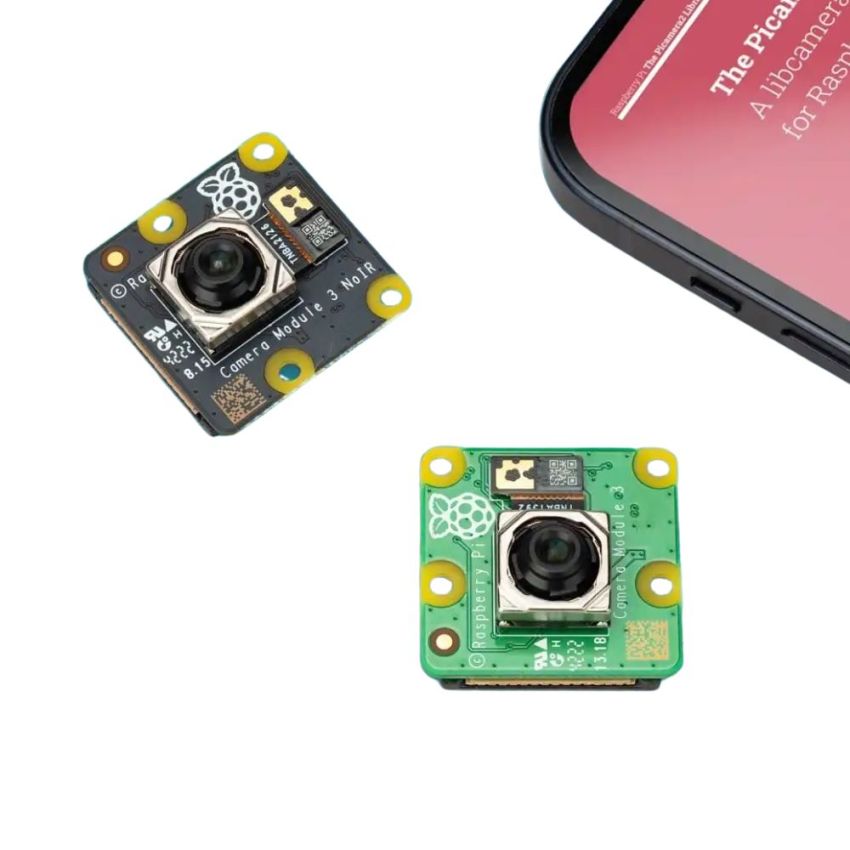

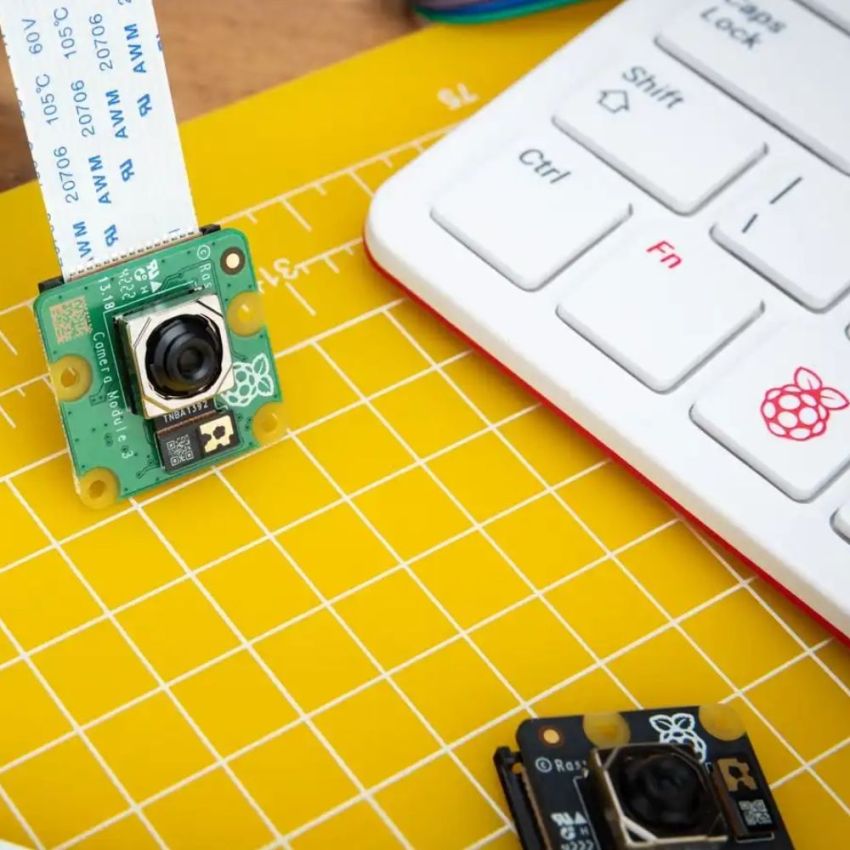

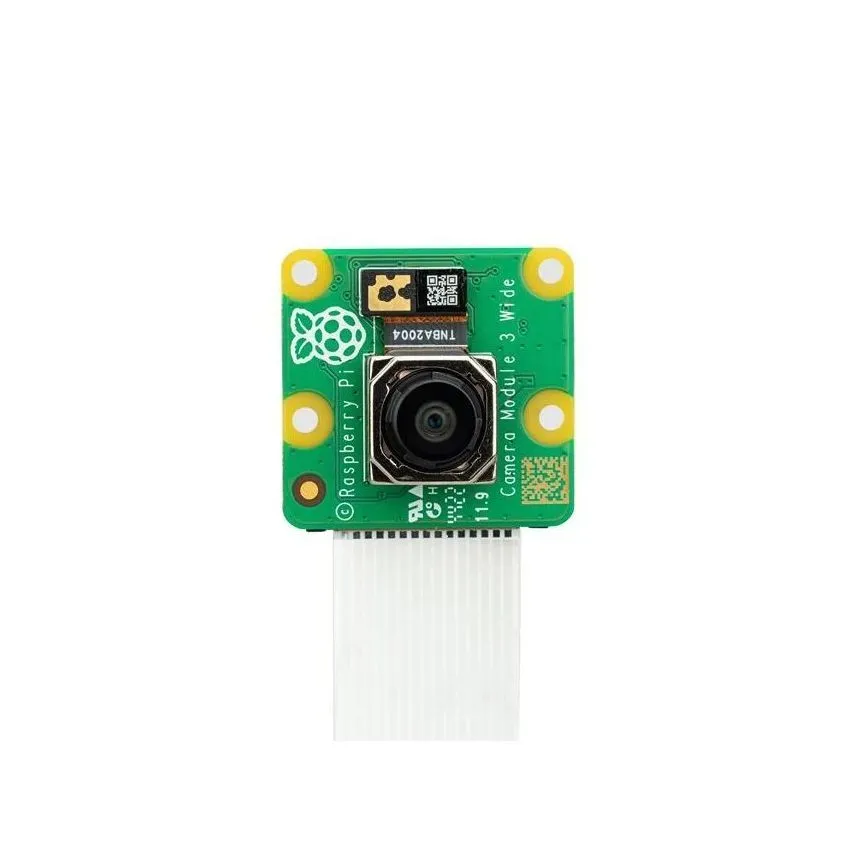

SC0874, Raspberry Pi Camera Module 3 Wide

Specification: Raspberry Pi Camera Module 3

• Image Sensor: Back-illuminated, stacked CMOS 12-megapixel Sony IMX708
• Signal-to-Noise Ratio (SNR): High
• Defect Pixel Correction: Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Autofocus: Phase Detection Autofocus (PDAF) for rapid focus
• Re-mosaic Function: QBC Re-mosaic function
• HDR Mode: Up to 3 megapixel output
• Data Output: CSI-2 serial data output
• Control Mechanism: 2-wire serial control of focus mechanism

Technical Details

• Resolution: 11.9 megapixels
• Sensor Size: 7.4mm diagonal
• Pixel Size: 1.4μm × 1.4μm
• Horizontal/Vertical Resolution: 4608 × 2592 pixels
• Field of View: ○ 75 degrees (Camera Module 3, Camera Module 3 NoIR) ○ 120 degrees (Camera Module 3 Wide, Camera Module 3 NoIR Wide)
• Video Modes: 1080p50, 720p100, 480p120
• Output Format: RAW10
• IR Cut Filter: Integrated in standard variants, absent in NoIR variants

Physical Details

• Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

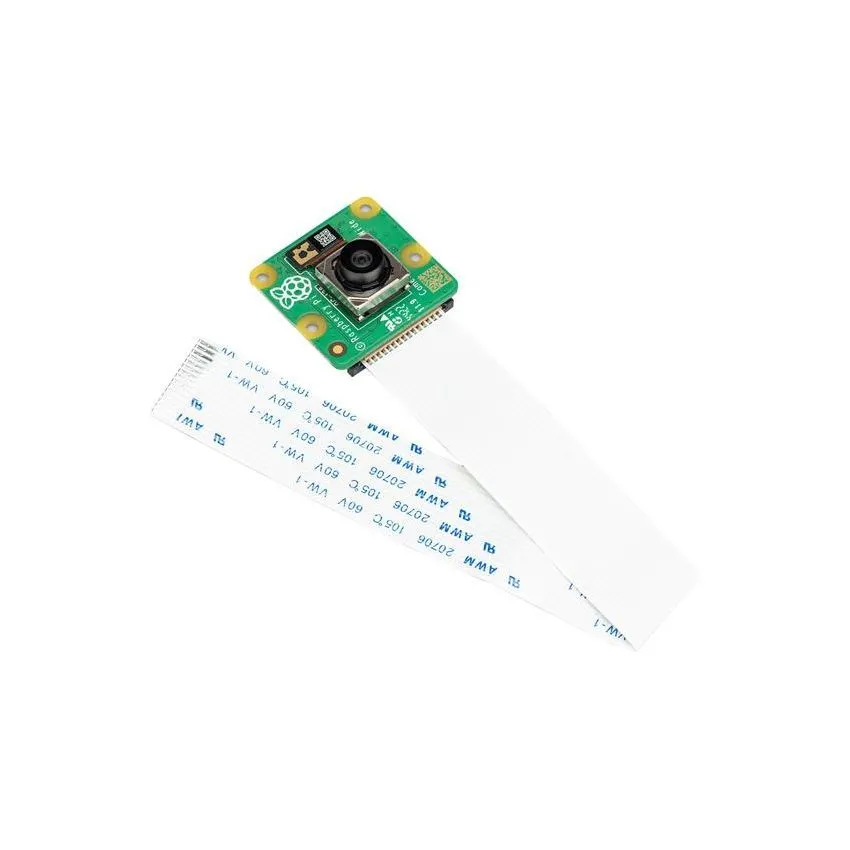

• Ribbon Cable Length: 200mm
• Cable Connector: 15 × 1mm FPC
