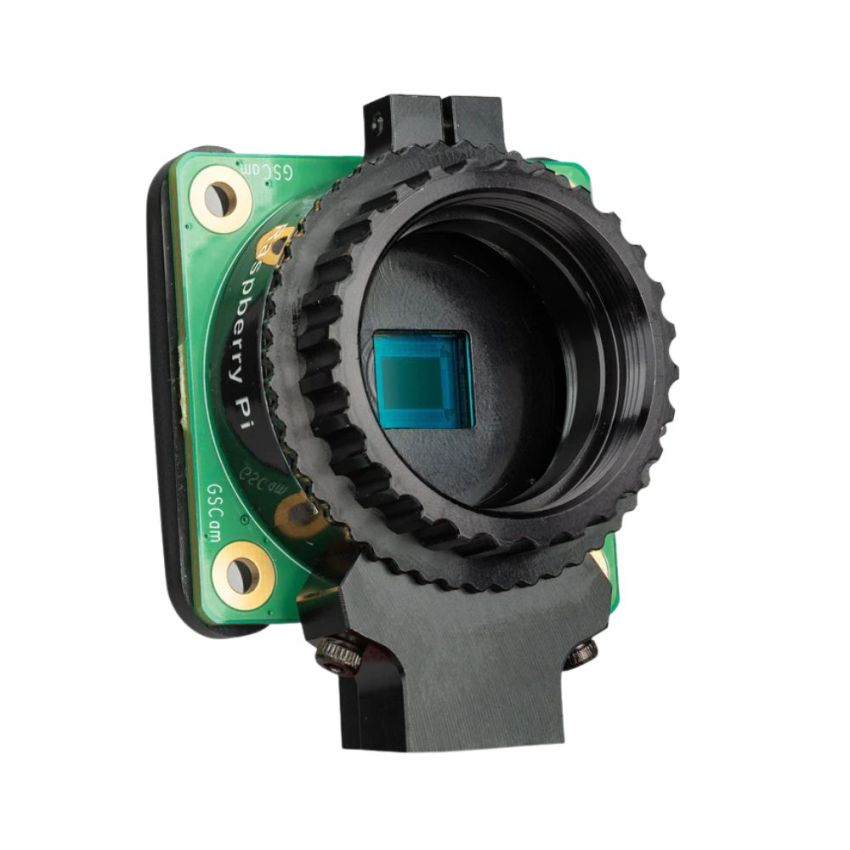

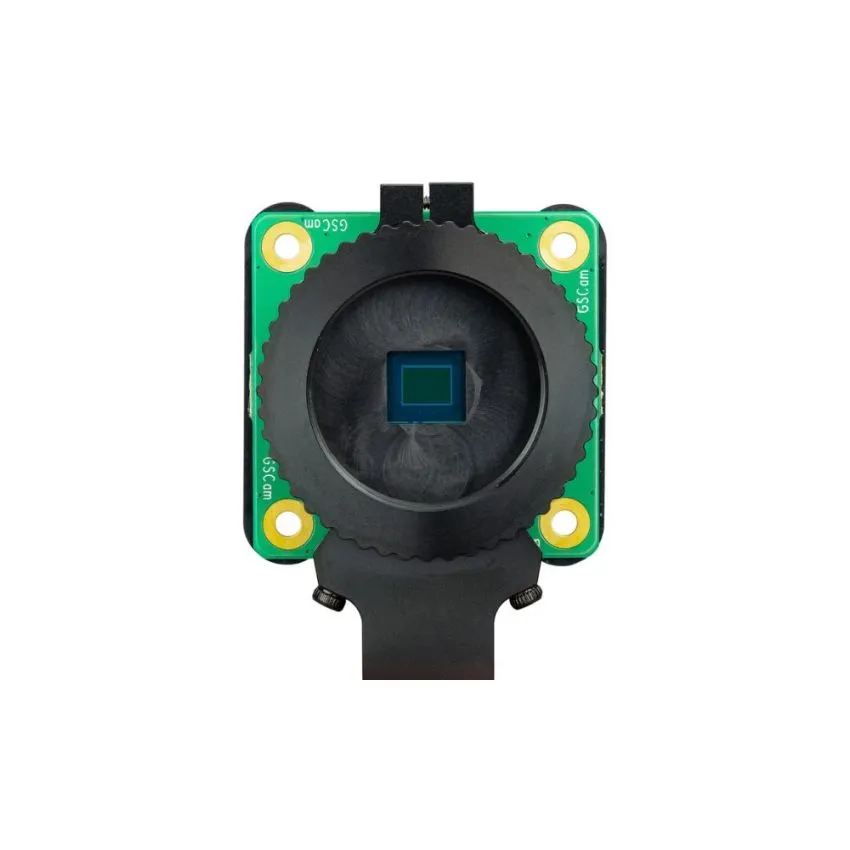

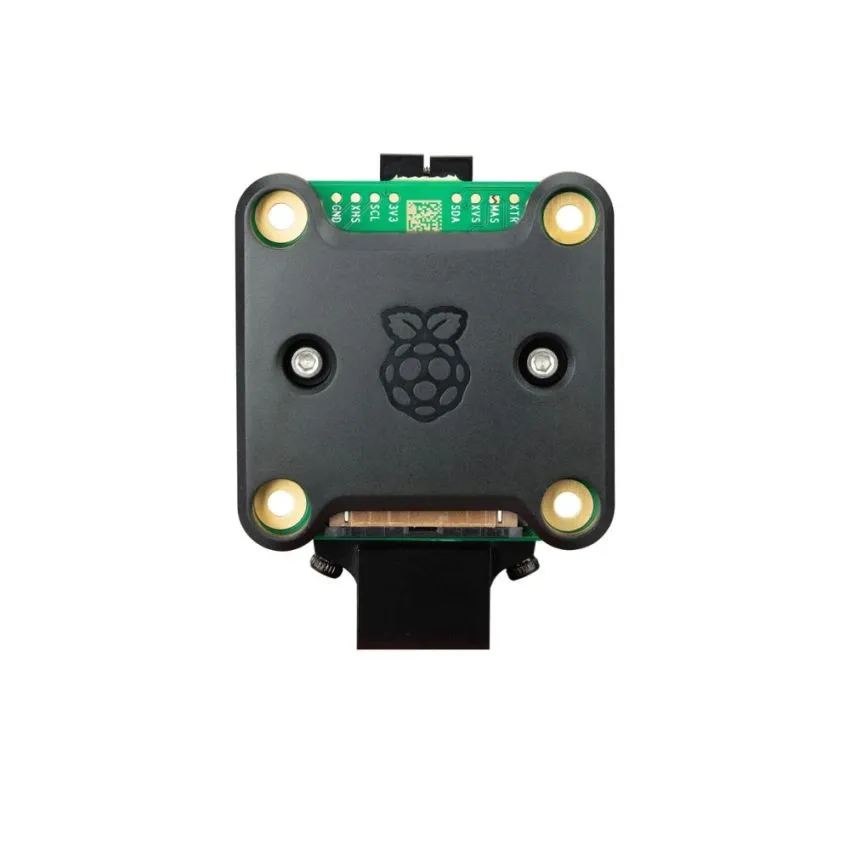

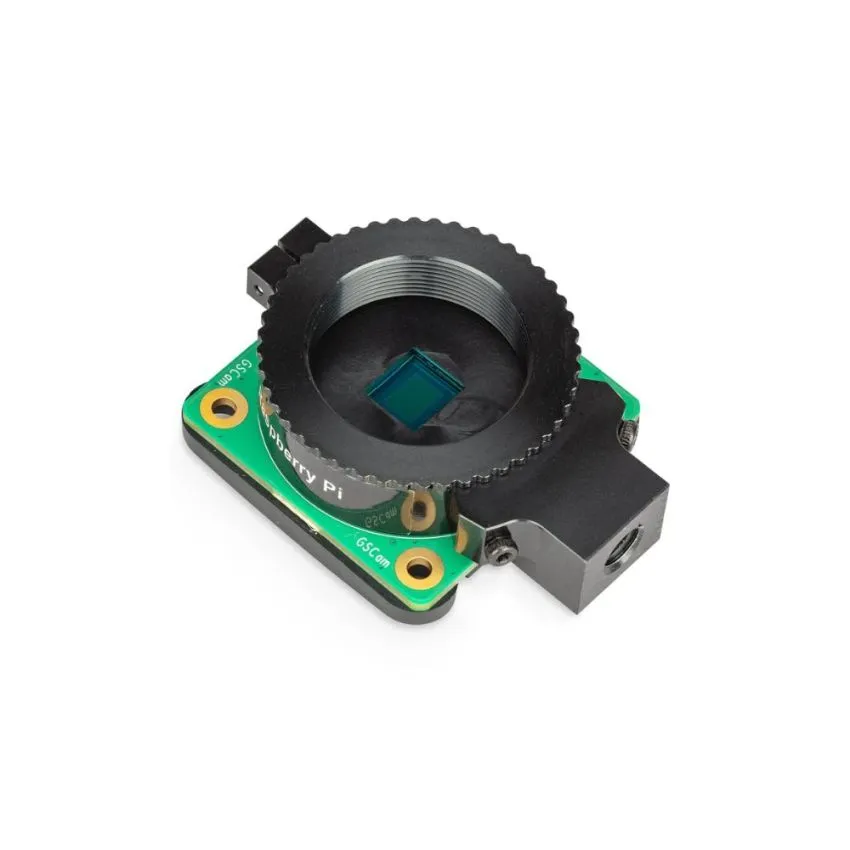

SC0715 , Raspberry Pi Global Shutter Camera

SKU
ODCx0090
Part Number
SC0715
Brand:
Delivery in 2-5 Weeks.
Pre-Order
Out Of Stock

Notify me when this product is available:

Guarantee safe & secure checkout

The Raspberry Pi Global Shutter Camera is a specialized 1.6-megapixel camera designed to capture rapid motion without the typical distortion from rolling shutter cameras. It's ideal for high-speed photography and machine vision applications, providing clear images even in fast-motion environments. This camera utilizes a Sony IMX296 sensor and is compatible with Raspberry Pi computers that have a full-size CSI camera connector.


Key Features

■ Sensor: Sony IMX296LQR-C

■ Resolution: 1.6 Megapixels (color)

■ Pixel Size: 3.45μm × 3.45μm

■ Sensor Size: 6.3mm sensor diagonal

■ Output: RAW10

■ Lens Compatibility: CS-Mount, C-Mount (adapter included)

■ IR Cut Filter: Integrated

■ Back Focus Length: Adjustable (12.5–22.4mm)

■ Ribbon Cable Length: 150mm

■ Tripod Mount: 1/4”-20

■ Included Accessories: C-CS mount adapter, screwdriver

■ Dimensions: 38mm × 38mm × 19.8mm (29.5mm with adapter and dust cap)

■ Weight: 34g (41g with adapter and dust cap)


Compatibility

■ Compatible with Raspberry Pi computers with a full-size CSI camera connector

■ Requires adapter cable for Raspberry Pi 5 and Raspberry Pi Zero

Key Features ■ Sensor: Sony IMX296LQR-C ■ Resolution: 1.6 Megapixels (color) ■ Pixel Size: 3.45μm × 3.45μm ■ Sensor Size: 6.3mm sensor diagonal ■ Output: RAW10 ■ Lens Compatibility: CS-Mount, C-Mount (adapter included) ■ IR Cut Filter: Integrated ■ Back Focus Length: Adjustable (12.5–22.4mm) ■ Ribbon Cable Length: 150mm ■ Tripod Mount: 1/4”-20 ■ Included Accessories: C-CS mount adapter, screwdriver ■ Dimensions: 38mm × 38mm × 19.8mm (29.5mm with adapter and dust cap) ■ Weight: 34g (41g with adapter and dust cap) Compatibility ■ Compatible with Raspberry Pi computers with a full-size CSI camera connector ■ Requires adapter cable for Raspberry Pi 5 and Raspberry Pi Zero
More Information
Resolution 1.6 Megapixels
