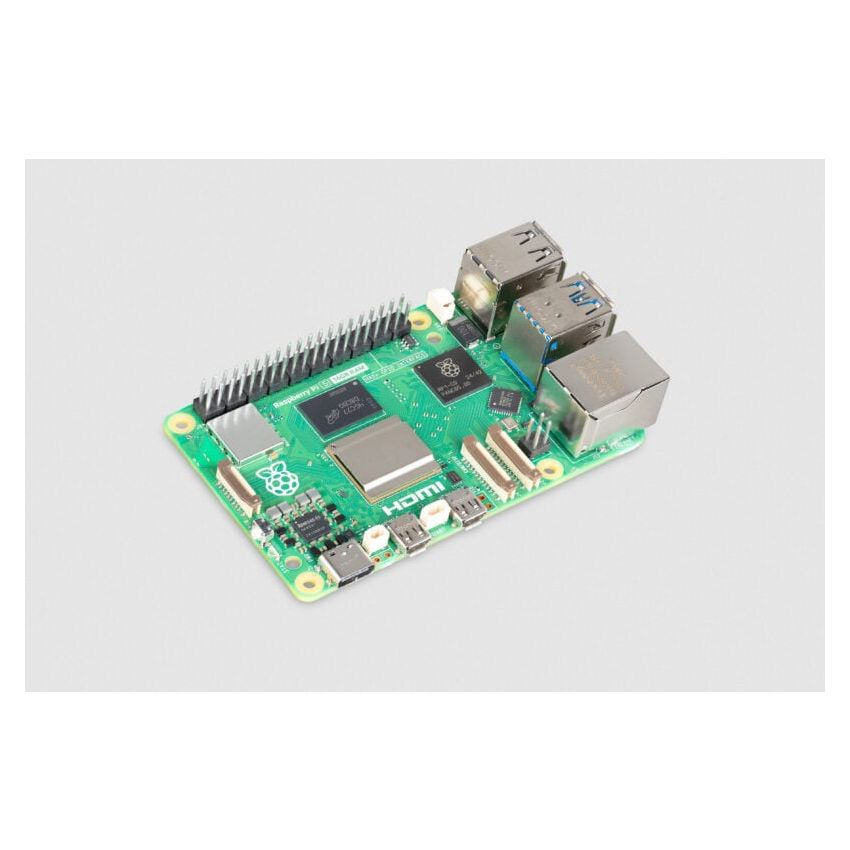

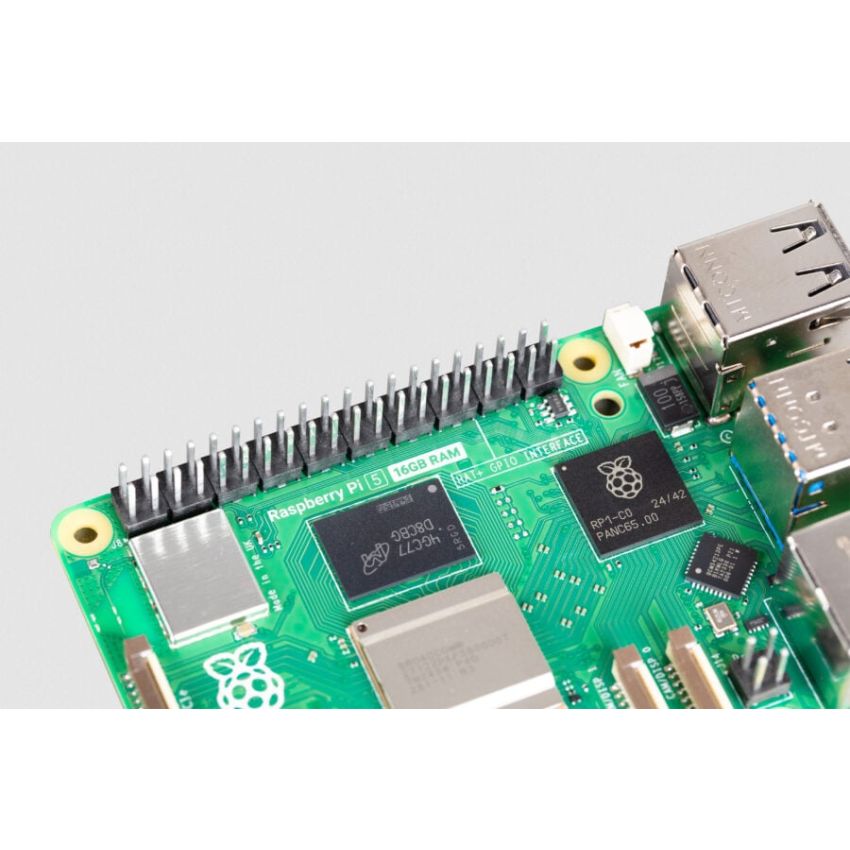

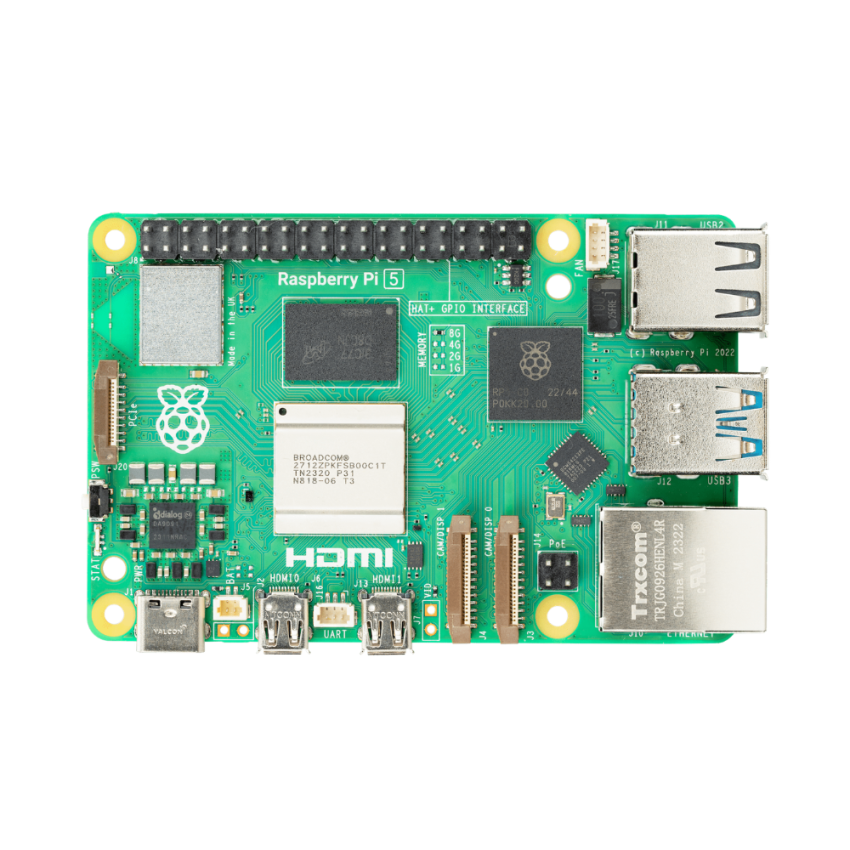

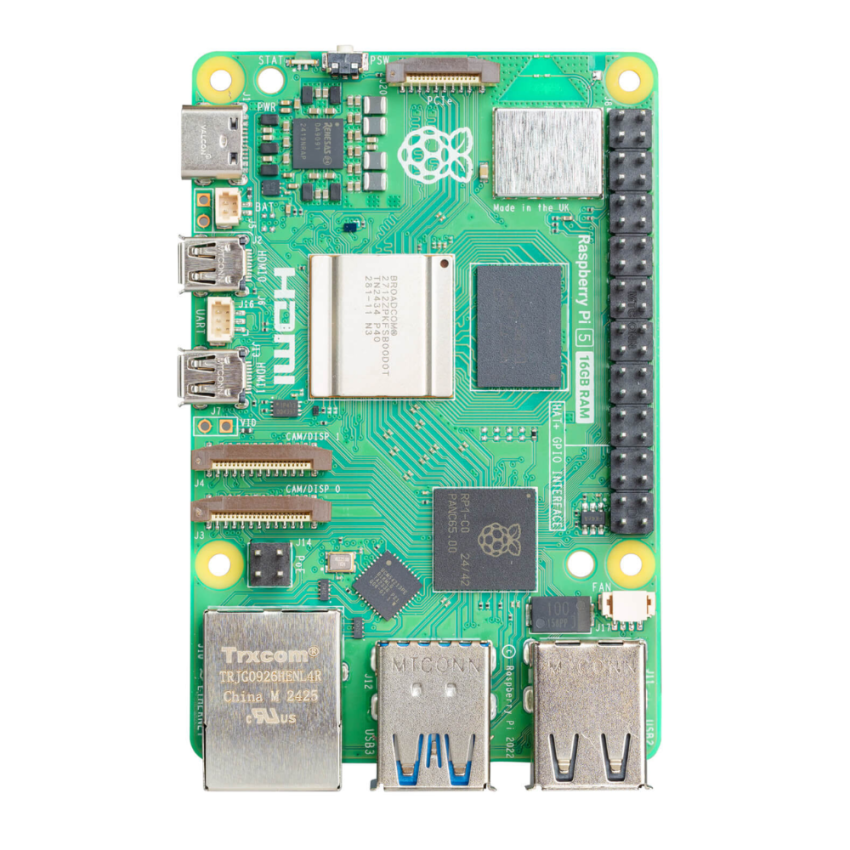

SC1113, Raspberry Pi5/16GB

<p>Raspberry Pi 5 features a powerful 64-bit quad-core Arm Cortex-A76 processor running at 2.4 GHz, offering a 2-3x increase in CPU performance compared to Raspberry Pi 4. Packed with enhanced features and significant improvements, Raspberry Pi 5 is the most advanced Raspberry Pi yet!</p> <strong>Key Features</strong> <strong>Processor and Performance</strong> <ul> <li>2.4 GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptography extensions.</li> <li>512 KB per-core L2 cache and 2 MB shared L3 cache.</li> <li>Broadcom BCM2712 System on Chip (SoC) delivering 2-3x performance increase over previous generations.</li> </ul> <strong>Graphics and Display</strong> <ul> <li>VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2.</li> <li>Dual 4Kp60 HDMI display outputs with HDR support.</li> <li>4Kp60 HEVC decoder.</li> </ul> <strong>Memory Options</strong> <ul> <li>LPDDR4X-4267 SDRAM available in 2 GB, 4 GB, 8 GB, and 16 GB configurations.</li> </ul> <strong>Connectivity</strong> <ul> <li>Dual-band 802.11ac Wi-Fi.</li> <li>Bluetooth 5.0 and Bluetooth Low Energy (BLE).</li> <li>Gigabit Ethernet with PoE+ support (requires separate Pi5-specific PoE+ HAT).</li> </ul> <strong>Storage and Expandability</strong> <ul> <li>MicroSD card slot with support for high-speed SDR104 mode.</li> <li>PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter).</li> </ul> <strong>Input and Output (I/O)</strong> <ul> <li>2x USB 3.0 ports supporting simultaneous 5 Gbps operation.</li> <li>2x USB 2.0 ports.</li> <li>2x 4-lane MIPI camera/display transceivers.</li> <li>Raspberry Pi standard 40-pin GPIO header.</li> </ul> <strong>Power and Energy</strong> <ul> <li>5 V at 5 A DC power via USB-C, with Power Delivery support.</li> <li>Real-time clock (RTC) powered from an external battery (available separately).</li> <li>Integrated power button.</li> </ul> <strong>Additional Features</strong> <ul> <li>Mounting holes for coolers/heatsinks (designed for Raspberry Pi Active Cooler).</li> <li>Composite video header.</li> <li>Memory indication markers for easy board RAM identification.</li> <li>Unique board ID number on the board and packaging.</li> <li>Relocated PoE header.</li> <li>Audio jack removed for streamlined design.</li> <li>Flush underside to GPIO pins with metal supporting tabs for component protection.</li> </ul> <strong>Compute Module 5</strong> <p>A system-on-module delivering the power of Raspberry Pi 5 in a compact form factor ideal for embedded applications.</p>
