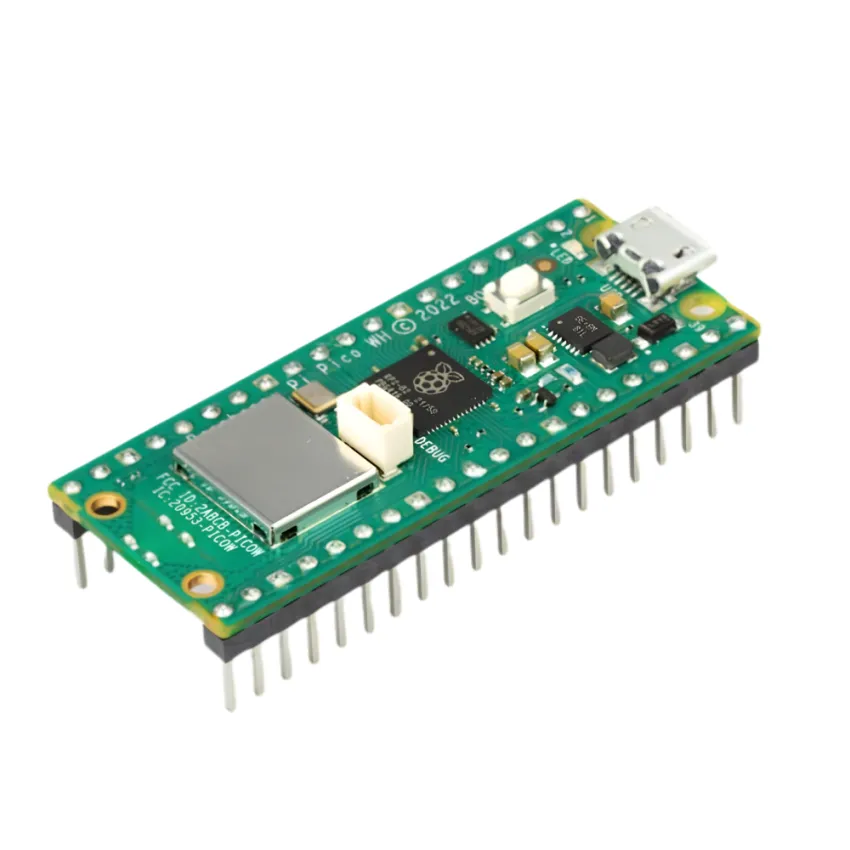

SC0919,Raspberry Pi Pico WH

The Raspberry Pi Pico WH brings wireless connectivity and ready-to-use GPIO headers to the original Pico platform.

At its core is the RP2040 microcontroller, featuring a dual-core Arm Cortex-M0+ processor running at up to 133 MHz, 264KB SRAM, and 2MB onboard flash memory. The board supports 2.4GHz 802.11n Wi-Fi as well as Bluetooth 5.2 and Bluetooth Low Energy (BLE), allowing it to connect to wireless networks, mobile devices, and other Bluetooth-enabled hardware. Raspberry Pi

Unlike the standard Raspberry Pi Pico W, the Pico WH comes with its GPIO headers already soldered, allowing it to be connected directly to breadboards, jumper wires, sensors, and compatible accessories without soldering. Raspberry Pi specifically identifies the H variants as models supplied with headers attached. Raspberry Pi

The board provides 26 multifunction GPIO pins, including three analogue inputs, together with UART, SPI, I2C, PWM, ADC, USB, and Raspberry Pi’s Programmable I/O (PIO) system. This makes Pico WH suitable for applications ranging from simple sensor projects to advanced IoT and automation systems. Raspberry Pi

KEY FEATURES

• RP2040 microcontroller designed by Raspberry Pi
• Dual-core Arm Cortex-M0+ processor
• Clock speed up to 133MHz
• 264KB SRAM
• 2MB onboard QSPI flash memory
• 2.4GHz 802.11n Wi-Fi
• Bluetooth 5.2
• Bluetooth Low Energy (BLE)
• Pre-soldered 40-pin headers
• 26 multifunction GPIO pins
• 3 analogue inputs
• 2 × UART
• 2 × SPI
• 2 × I2C
• 16 × PWM channels
• 8 × Programmable I/O (PIO) state machines
• USB 1.1 controller with host and device support
• BOOTSEL button for easy programming
• Supports MicroPython and C/C++
• Compact 21 × 51mm form factor

TECHNICAL SPECIFICATIONS

• Product: Raspberry Pi Pico WH
• SKU: SC0919
• Microcontroller: RP2040
• Processor: Dual-core Arm Cortex-M0+
• Maximum Clock Speed: 133MHz
• SRAM: 264KB
• Flash Memory: 2MB QSPI Flash
• Wi-Fi: 2.4GHz IEEE 802.11n
• Bluetooth: Bluetooth 5.2
• Bluetooth Low Energy: Yes
• GPIO: 26 multifunction GPIO pins
• Headers: Pre-soldered 2 × 20-pin male headers
• ADC: 3 × 12-bit ADC inputs
• UART: 2
• SPI: 2
• I2C: 2
• PWM: 16 channels
• PIO: 8 state machines
• USB: USB 1.1 host/device support
• USB Connector: Micro-USB
• Input Voltage: 1.8V to 5.5V DC
• Dimensions: 21 × 51mm
• Operating Temperature: -20°C to +70°C

PROGRAMMING SUPPORT

• MicroPython
• C/C++ SDK
• Drag-and-drop UF2 programming through USB
• SWD debugging support

APPLICATIONS

• IoT projects
• Wireless sensor systems
• Robotics
• Smart home projects
• Home automation
• Industrial prototyping
• Environmental monitoring
• Wireless controllers
• Embedded systems
• Data acquisition
• Education and electronics learning
• Breadboard prototyping
• Bluetooth-controlled devices
• Remote monitoring
• Motor and actuator control
• DIY electronics projects

PACKAGE INCLUDES

• 1 × Raspberry Pi Pico WH – SC0919
• Pre-soldered male GPIO headers included

PICO W VS PICO WH

• Pico W: Wireless version without pre-soldered headers
• Pico WH: Wireless version with pre-soldered headers
• The “H” indicates that the headers are already fitted
