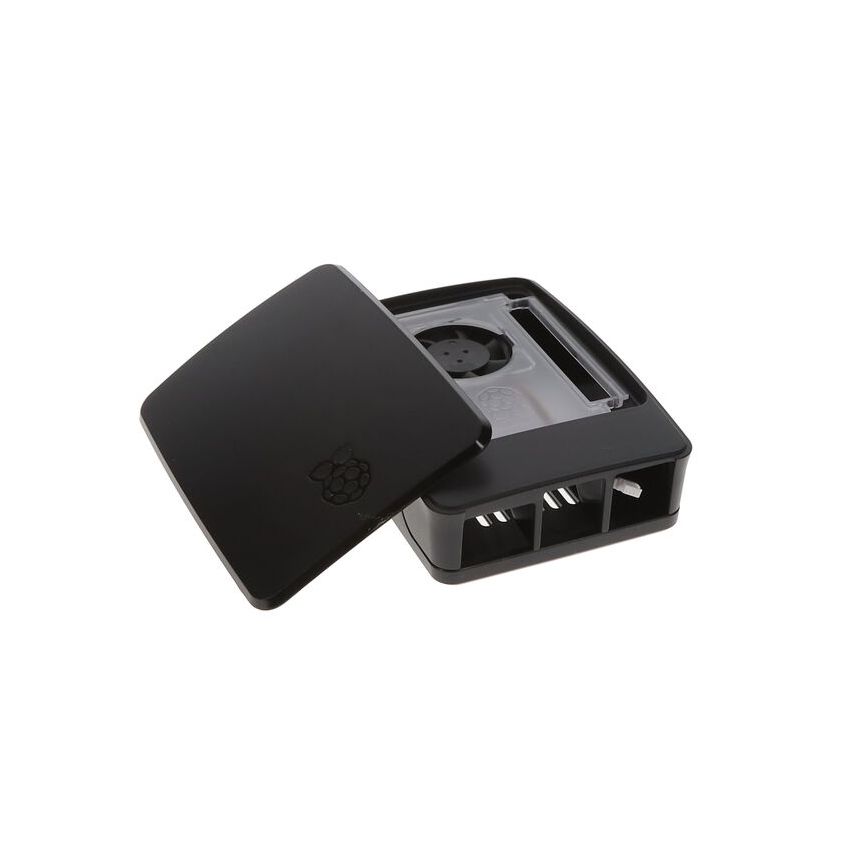

SC1160,Raspberry Pi Case for Pi 5 -Black

The SC1160 Raspberry Pi Official Case is a purpose-built enclosure designed specifically for the Raspberry Pi 5 single-board computer. It provides durable protection for the board while maintaining full access to all ports, connectors, and GPIO interfaces required for development and embedded applications.

The enclosure is manufactured from ABS plastic and features a snap-together design, allowing easy assembly without tools. It includes precision cut-outs for the Raspberry Pi 5’s dual Micro HDMI ports, USB ports, Ethernet, USB-C power connector, audio/video jack, and microSD card slot, ensuring convenient connectivity while the board is installed inside the case.

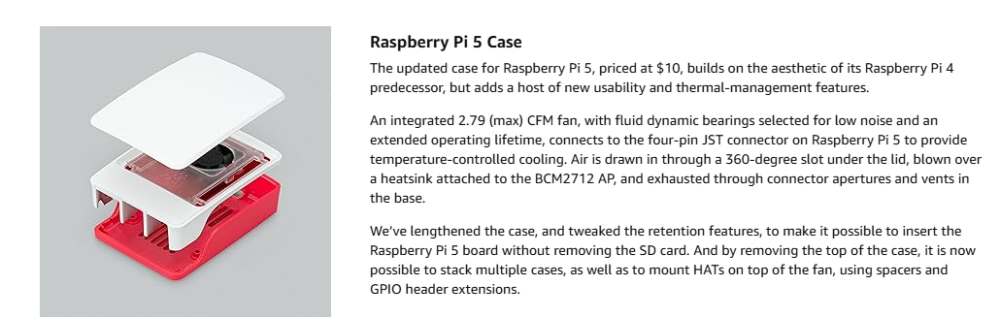

To support the higher power consumption and thermal output of the Raspberry Pi 5, the case integrates an active cooling fan controlled directly from the Raspberry Pi 5 fan connector. This helps maintain stable operating temperatures even under heavy workloads.

The removable lid provides quick access to the GPIO header, allowing users to connect HAT expansion boards or other accessories without removing the entire enclosure. The case also includes mounting features and rubber feet for stable placement on workbenches or development setups.

Designed as part of the official Raspberry Pi accessory lineup, the SC1160 enclosure offers a reliable and compact housing solution for Raspberry Pi 5 projects including IoT systems, robotics platforms, educational kits, and embedded computing applications.

Key Features

1. Official Raspberry Pi 5 Enclosure – Designed specifically for Raspberry Pi 5 boards for perfect fit and compatibility.

2. Integrated Cooling Fan – Built-in temperature-controlled fan helps maintain safe operating temperatures during heavy workloads.

3. Tool-Free Snap-Together Assembly – Easy installation with a clip-together design that requires no screws or tools.

4. Full Access to Ports and Interfaces – Cut-outs for HDMI, USB, Ethernet, USB-C power, audio/video, microSD card, and GPIO.

5. Removable Lid for GPIO Access – Allows quick connection of HATs and expansion modules.

6. Durable ABS Construction – Strong lightweight enclosure designed to protect the board in development or embedded systems.

Specifications

• Part Number: SC1160

• Product Type: Development board enclosure

• Compatibility: Raspberry Pi 5

• Material: ABS plastic

• Colour: Black / Grey

• Cooling: Integrated temperature-controlled fan

• Dimensions: 70.3 × 98.5 × 33 mm

• Compliance: RoHS compliant

Compatibility

Raspberry Pi 5 (4GB, 8GB, and 16GB variants)
