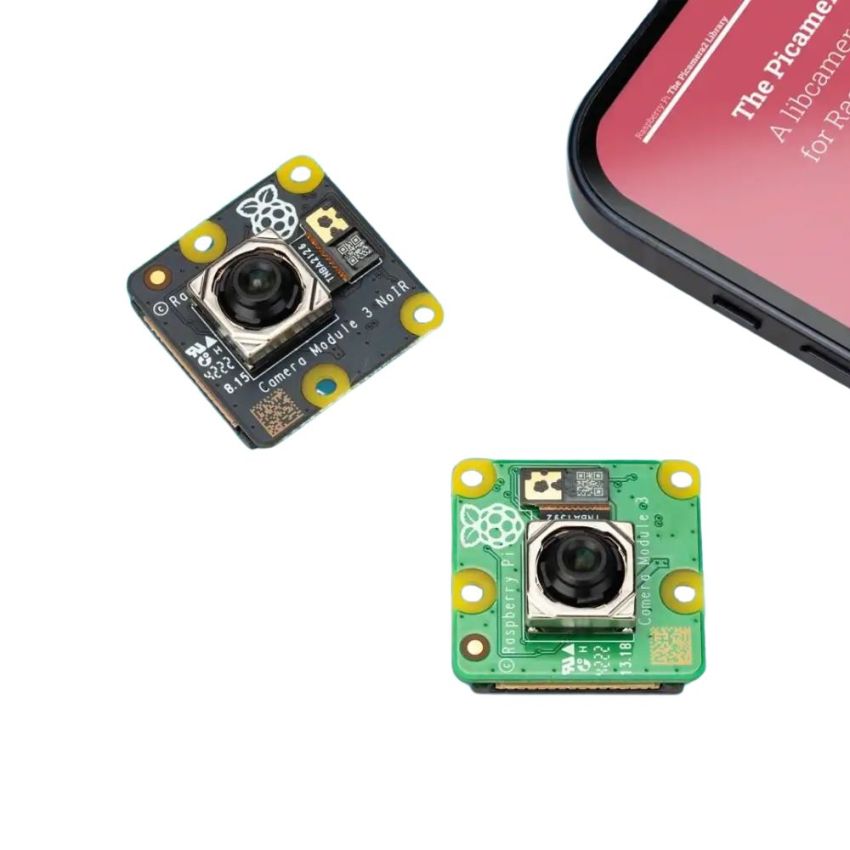

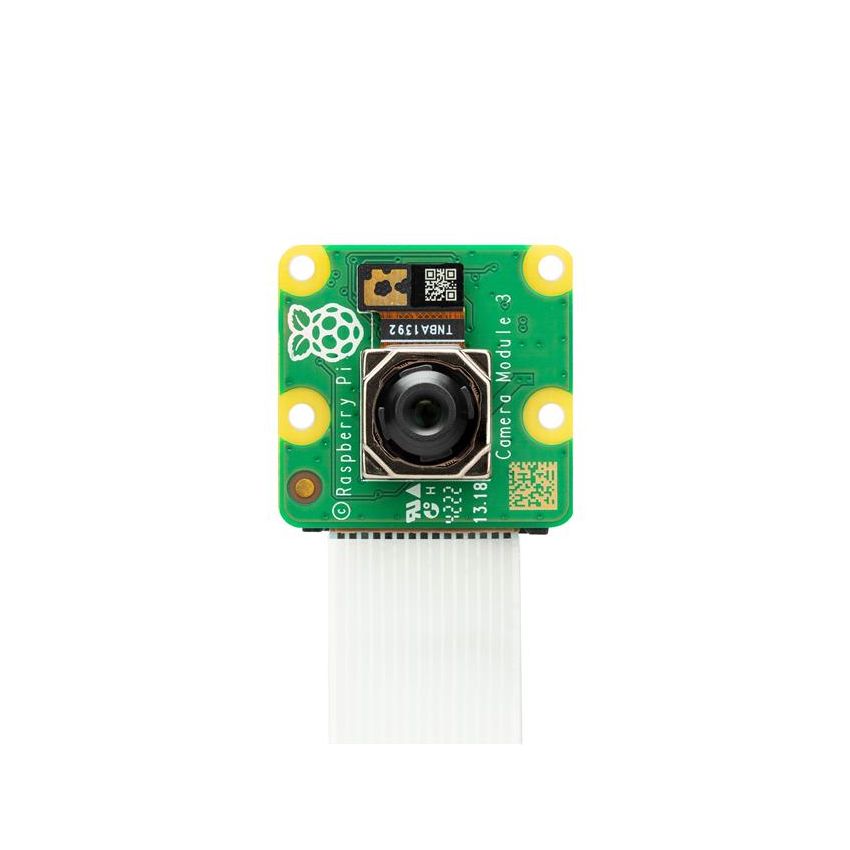

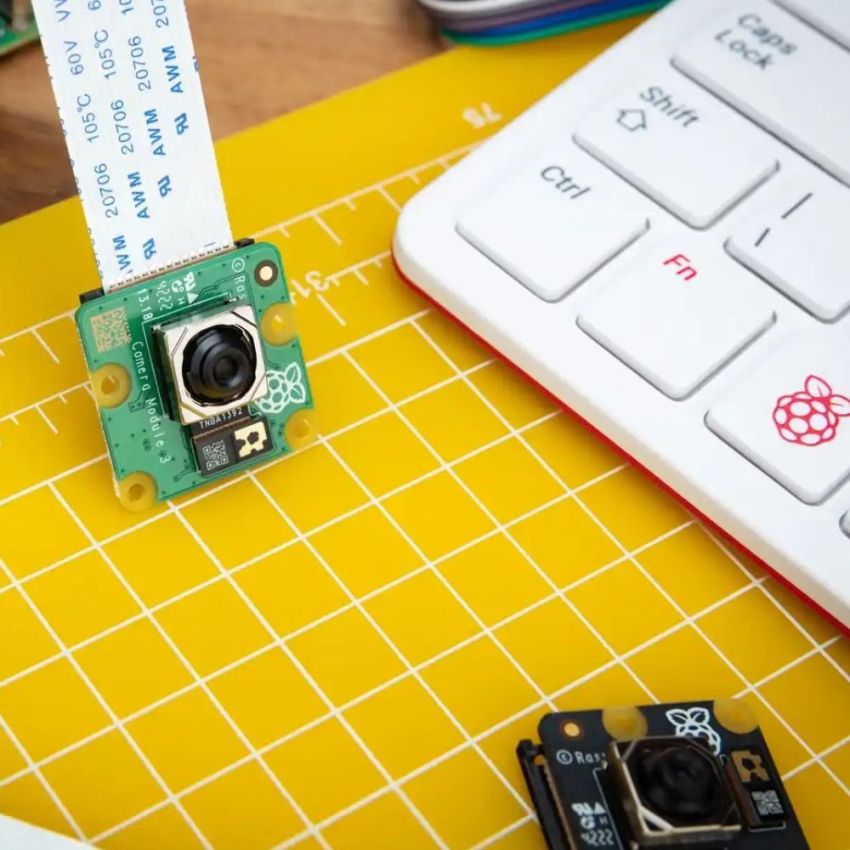

SC0872, Raspberry Pi Camera Module 3

● Specification: Raspberry Pi Camera Module 3

■ Image Sensor: Back-illuminated, stacked CMOS 12-megapixel Sony IMX708

■ Signal-to-Noise Ratio (SNR): High

■ Defect Pixel Correction: Built-in 2D Dynamic Defect Pixel Correction (DPC)

■ Autofocus: Phase Detection Autofocus (PDAF) for rapid focus

■ Re-mosaic Function: QBC Re-mosaic function

■ HDR Mode: Up to 3 megapixel output

■ Data Output: CSI-2 serial data output

■ Control Mechanism: 2-wire serial control of focus mechanism

● Technical Details

■ Resolution: 11.9 megapixels

■ Sensor Size: 7.4mm diagonal

■ Pixel Size: 1.4μm × 1.4μm

■ Horizontal/Vertical Resolution: 4608 × 2592 pixels

■ Field of View:

○ 75 degrees (Camera Module 3, Camera Module 3 NoIR)

○ 120 degrees (Camera Module 3 Wide, Camera Module 3 NoIR Wide)

■ Video Modes: 1080p50, 720p100, 480p120

■ Output Format: RAW10

■ IR Cut Filter: Integrated in standard variants, absent in NoIR variants

● Physical Details

■ Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

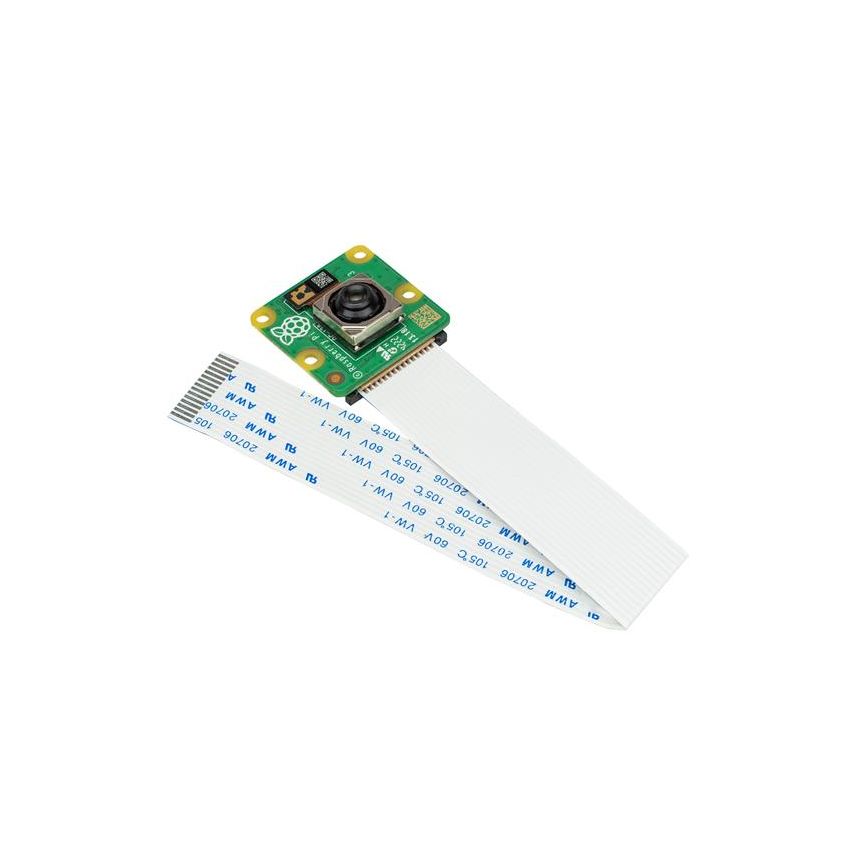

■ Ribbon Cable Length: 200mm

■ Cable Connector: 15 × 1mm FPC
