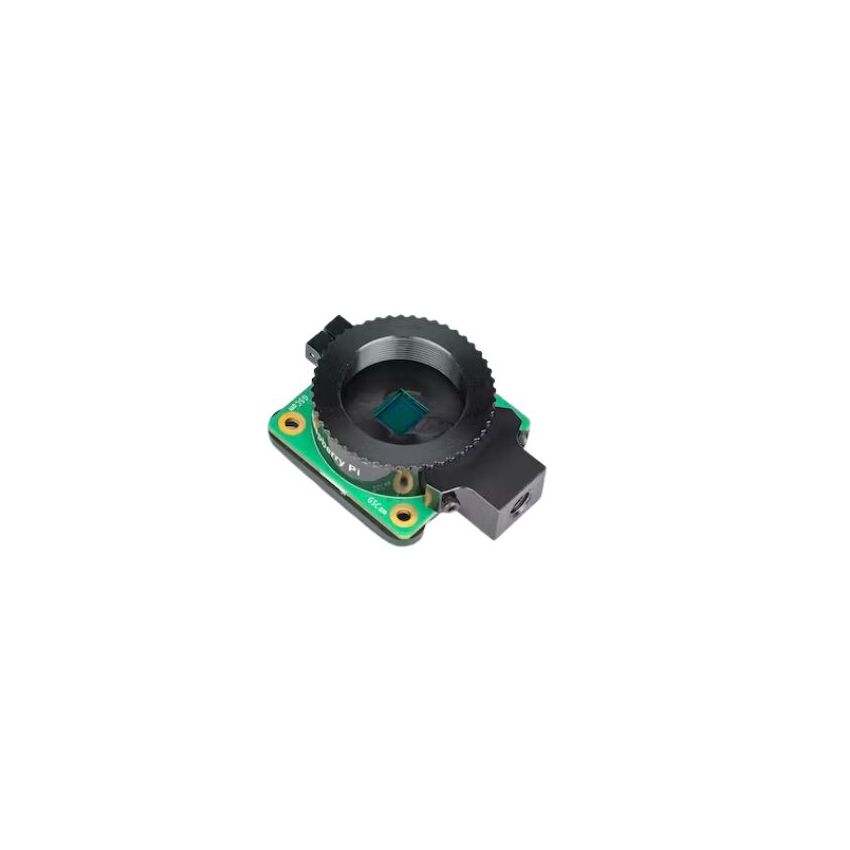

SC1998,Global Shutter Camera Rev 4

The SC1998 Raspberry Pi Global Shutter Camera Rev 4 is an official Raspberry Pi camera module designed for high-speed imaging, machine vision, robotics, automation, and scientific capture applications where motion distortion must be eliminated. Unlike standard rolling shutter cameras, this module uses a global shutter sensor, allowing the full frame to be captured simultaneously. This makes it ideal for conveyor systems, object tracking, drones, sports motion capture, robotics, AI vision systems, and industrial inspection.

Built around the Sony IMX296 1.58MP sensor, the camera provides excellent light sensitivity with 3.45µm x 3.45µm large pixels, enabling short exposure times and clear motion capture. It uses the same C / CS mount lens system as the Raspberry Pi High Quality Camera, giving users access to a wide range of interchangeable lenses for custom focal lengths and machine vision setups.

The module connects directly through the Raspberry Pi CSI camera interface and is compatible with Raspberry Pi boards supporting CSI connectors. It is a strong solution for engineers, developers, researchers, and OEM projects requiring accurate frame capture without rolling shutter artifacts.

Key Features:

• Official Raspberry Pi Global Shutter Camera for distortion-free motion capture.
• Sony IMX296 1.58MP sensor optimized for machine vision and automation.
• Captures entire image simultaneously to eliminate rolling shutter artifacts.
• Supports C-Mount and CS-Mount lenses for flexible optical setups.
• Large 3.45µm pixels offer strong sensitivity in demanding lighting.
• Ideal for robotics, AI vision, industrial inspection, conveyor systems, and research labs.

Technical Specifications:

• Part Number: SC1998
• Product Name: Global Shutter Camera Rev 4
• Sensor: Sony IMX296LQR-C
• Resolution: 1.58 Megapixels (approx. 1456 × 1088)
• Sensor Type: Global Shutter CMOS
• Pixel Size: 3.45µm × 3.45µm
• Output Format: RAW10
• Lens Mount: CS-Mount / C-Mount (adapter included)
• IR Filter: Integrated
• Interface: Raspberry Pi CSI Camera Connector
• Ribbon Cable Included: 150mm
• Dimensions: 38 × 38 × 19.8mm
• Weight: 34g approx.

What’s Included:

• Global Shutter Camera Module
• C to CS Mount Adapter
• Screwdriver
• 150mm Ribbon Cable
• Protective Rear Cover
