Features:

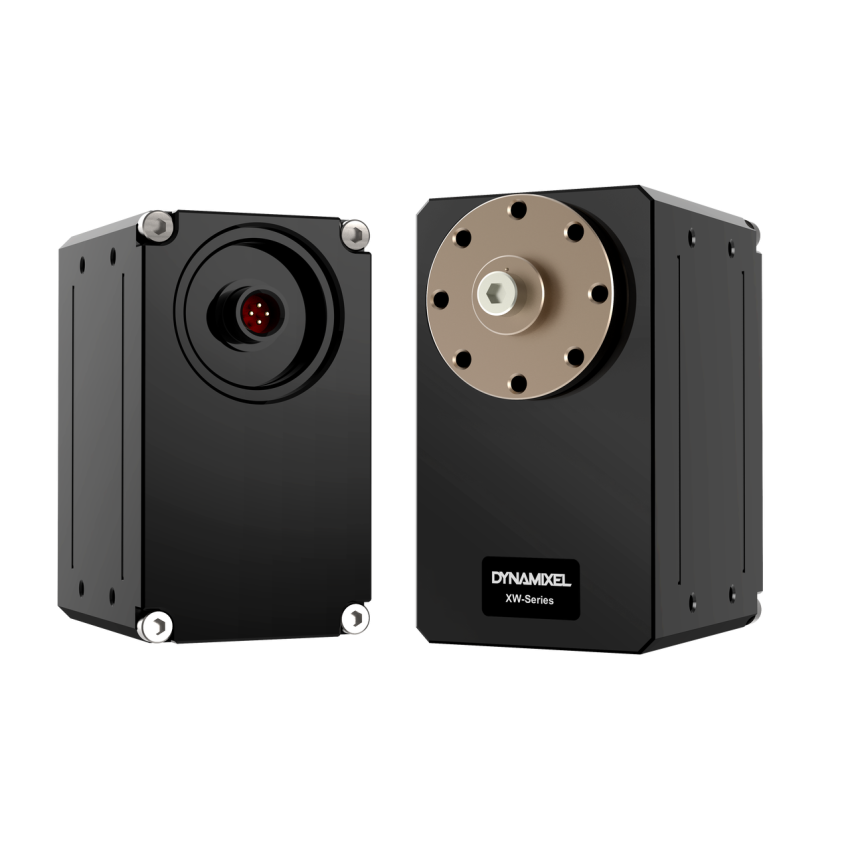

• DYNAMIXEL XW series are ROBOTIS’ first line of IP Level models, featuring a certified IP68 (1m, 24hr) rating and are designed for use in wet environments, underwater, and any •outdoor applications where a sealed servo is necessary.
• XW series come with separate waterproof cable and extension cable.
1. 6 Operating Mode : (Torque Control, Velocity Control, Position Control, Extended Position Control, Current based Position Control, PWM Control)
2. Profile Control for Smooth Motion Planning
3. Improved Heat Sink Featuring an Aluminum Case
4. Easy and Simple Assembly Structure
5. Energy Saving (Reduced Current from 100mA to 40mA)
6. 31% reduced volume compared to the MX-28

Specifications:

• MCU Cortex-M3 (72 [Mhz], 32 [bit])
• Input Voltage Min. [V] 10.0
• Recommended [V] 12.0
• Max. [V] 14.8
• Performance Characteristics Voltage [V] 12.0
• Stall Torque [N·m] 2.30
• Stall Current [A] 1.3
• No Load Speed [rpm] 53.0
• No Load Current [A] 0.07
• Continuous Operation Voltage [V] -
• Torque [N·m] -
• Speed [rpm] -
• Current [A] -
• Resolution Resolution [deg/pulse] 0.0879
• Step [pulse/rev] 4
• Angle [degree] 360
• Position Sensor Contactless absolute encoder (12 [bit], 360 [deg])
• Maker : ams(www.ams.com), Part No : AS5045
• Operating Temperature Min. [°C] -5
• Max. [°C] 80
• Motor Coreless (Maxon)
• Baud Rate Min. [bps] 9,600
• Max. [bps] 4,500,000
• Control Algorithm PID
• Gear Type Spur
• Gear Material Metal
• Case Material Metal(Front, Middle, Back)
• Dimensions (WⅹHⅹD) [mm] 28.5 x 46.5 x 34.0
• Dimensions (WⅹHⅹD) [inch] 1.12 X 1.83 X 1.34
• Weight [g] 96.00
• Weight [oz] 3.39
• Gear Ratio 200.1:1

Package Components

XW430-T200-R 1 DYNAMICAL
HN12-N105 1 Standard horn for XW430 models
Robot Cable-WP 1000mm 1 Waterproof cable
Robot Cable-WP 1000mm(Extension) 1 Waterproof cable(extension)
Wrench Bolt WB M2.5x4 16 For frame assembly(Side hole)
Wrench Bolt WB M2x4 10 For frame assembly
Wrench Bolt WB M2.5x8 1 For horn assembly
