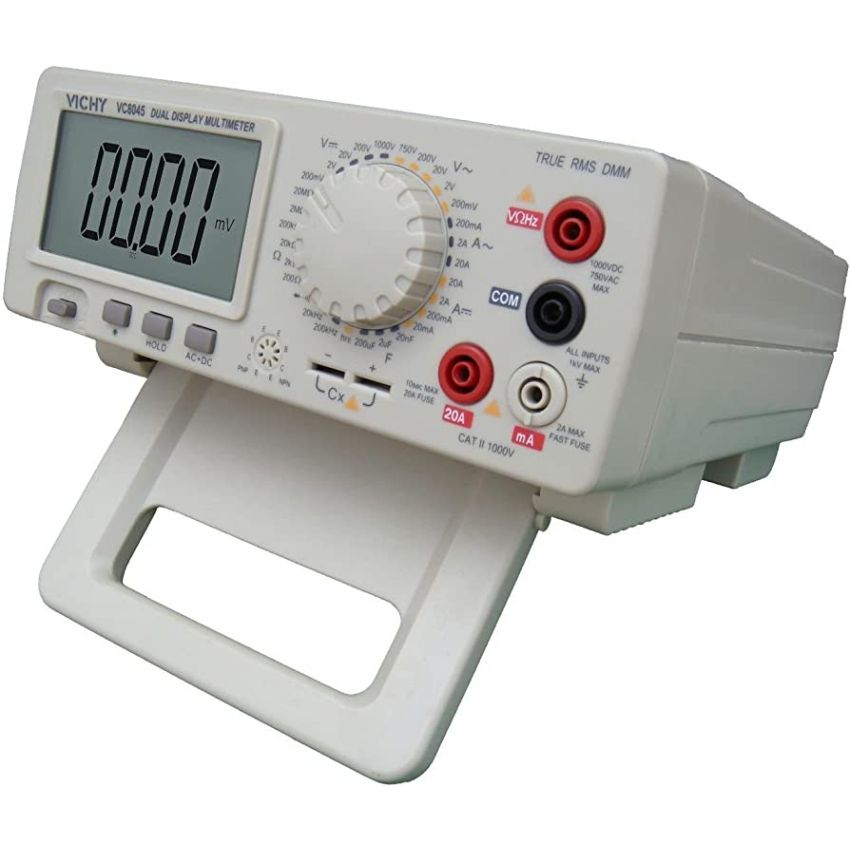

This digital multimeter is a high-performance bench multimeter that can measure DCV, ACV, DCA, ACA, OHM, CAP, Hz, hFE, diodes, and continuity. It has a maximum voltage of 1000V DC or AC peak value, and a maximum current of 20A with a resolution of 10μV. The device has a polarity auto-change function, backlight display, and direct reading feature. The TRUE RMS feature of this instrument allows for high accuracy AC measurement and can accurately measure the TRUE RMS of any waveform.

The multimeter has a large 4 1/2-digit LCD display with a backlight and a maximum reading of 19999. It can measure voltage up to 1000V DC or 1000V AC, and DC or AC current up to 20A. The ACV frequency response is up to 50kHz. It can also measure frequency, resistance, capacitance, triode, diode, and continuity, making it a versatile device for various testing applications. The instrument has overload protection of 250V rms and operates in an environment with a temperature range of 0℃--40℃ and relative humidity <75% RH. The multimeter has a dimension of 260mm×220mm×82mm and weighs approximately 1kg.

Specifications:

Power supply: 220V/ 110V AC
Measurement range: Manual range
Display: 4 1/2-digit large LCD display with backlight (displaying range: 75×40mm), max. reading: 19999
Voltage measurement range: 200mV/2V/20V/200V/1000V DC/AC
DC current measurement range: 20mA/200mA/2A/20A
AC current measurement range: 200mA/2A/20A
ACV frequency response: 50kHz
Frequency measurement range: 20KHz/200KHz
Resistance measurement range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Capacitance measurement range: 20nF/2uF/200uF
Basic accuracy:

DC voltage: ±(0.05% 3)
AC voltage: ±(0.8% 80)
DC current: ±(0.35% 10)
AC current: ±(0.8% 80)
Resistance: ±(0.1% 5)
Frequency: ±(1.0% 20)
Capacitance: ±(3.5% 20)
Functionality: Diode test, Triode test, Continuity buzzer, Overload protection, Input impedance, AC frequency response, Sampling rate, Operation way - Manual range
Max. Display: 19999
General Information:
Product Color: White
Product Size: 245x220x82mm
Product Weight: Approx:1Kg
Power Supply: AC220V; 110V 50Hz/60Hz
Standard Accessories: Test Lead, Manual, Power Cable
