V1561C25 ,MicroSwitch 15A250VAC 1.96N

SKU
SRLS0004
Brand:
In stock

Guarantee safe & secure checkout

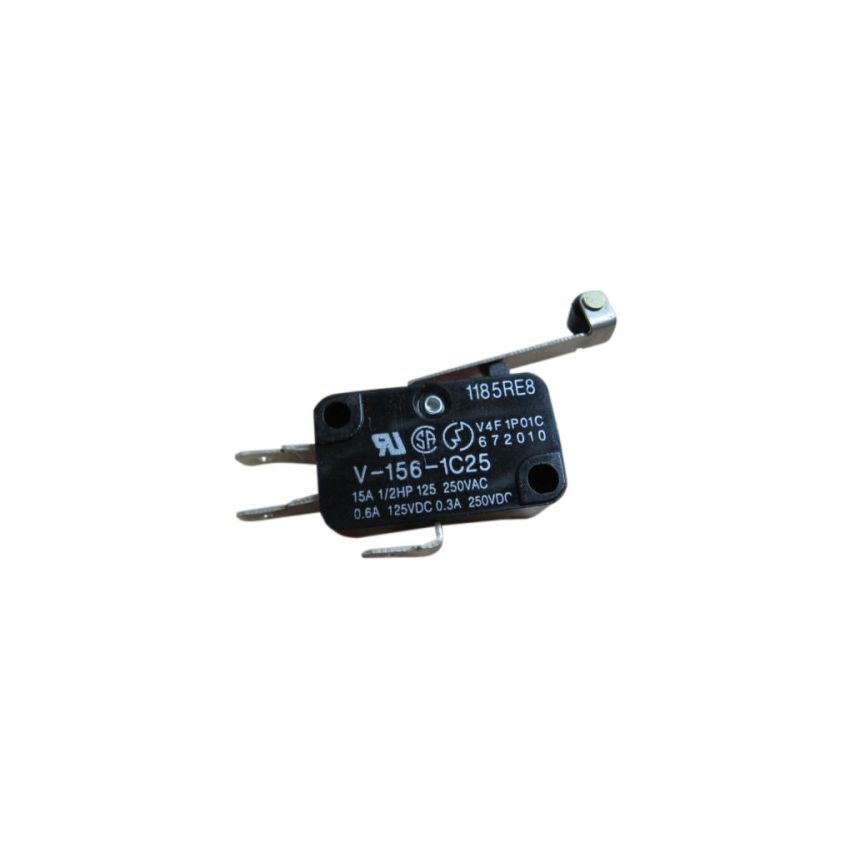

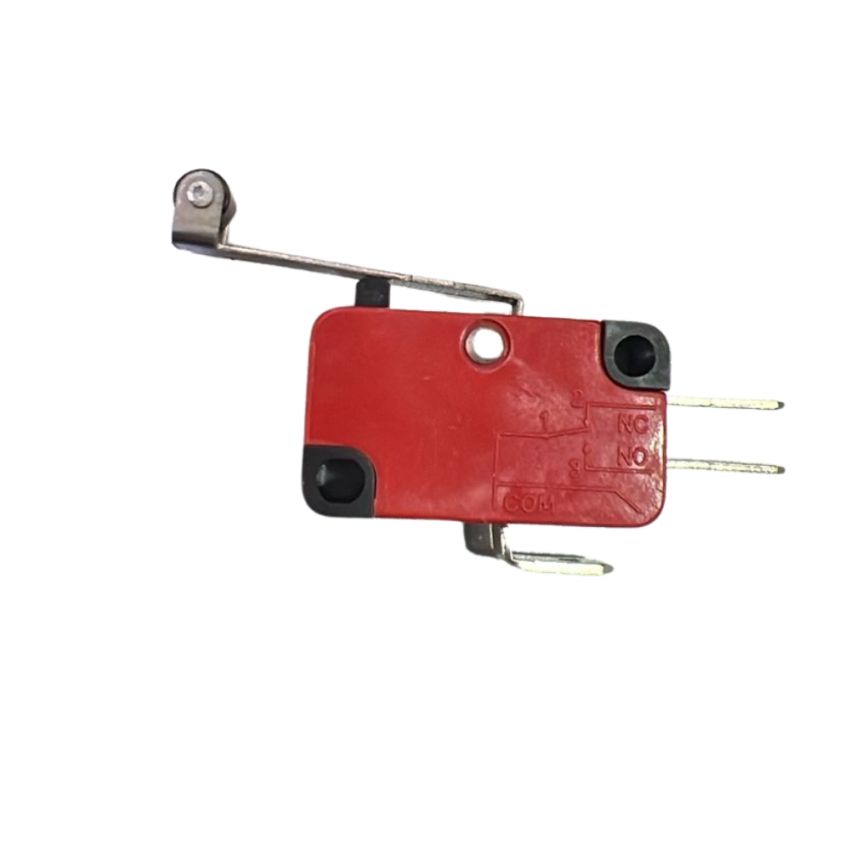

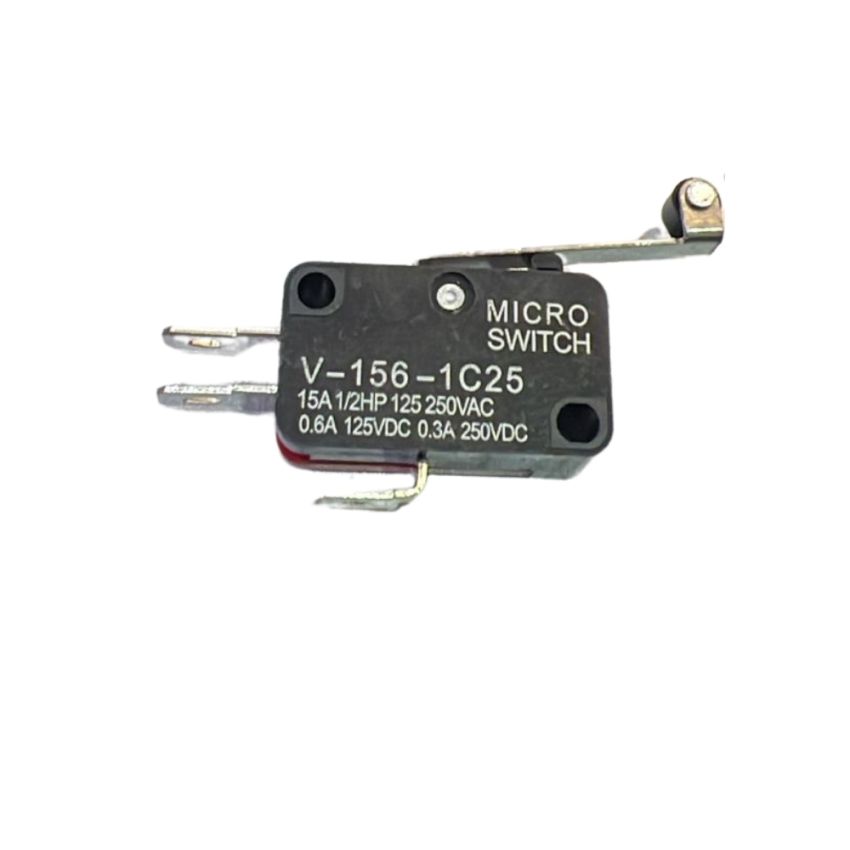

The V‑156‑1C25 is a miniature basic snap-action microswitch featuring a long roller lever actuator. Designed for rigorous industrial and automation applications, it offers SPDT switching functionality with a maximum AC rating of 15 A at 250 VAC and DC switching up to 600 mA at 125 VDC.

Engineered with self-cleaning contacts for consistent long-term reliability, the switch delivers outstanding durability: at least 50 million mechanical cycles and 100,000 electrical operations under load. It employs a hinge roller lever actuator and quick-connect terminals (4.8 mm) for robust, easy installation.

Electrical insulation is rated at 100 MΩ minimum at 500 VDC and dielectric strength of 1,000 VAC between terminals. It withstands vibration (10–55 Hz, 1.5 mm amplitude) and shock of up to 100 g (durability) or 30 g (malfunction).

Operating reliably over temperatures from –25 °C to 80 °C, this IP40-rated microswitch is RoHS compliant and widely used in door interlocks, household appliances, vending machines, and industrial systems requiring high reliability and long operational life.


Key Features

  • Long-roller hinged lever actuator with SPDT (1 NO + 1 NC) contact configuration
  • Rated 15 A at 250 VAC (600 mA at 125 VDC) for heavy-duty switching
  • Operating force approximately 1.96 N (200 gf) ensuring precise actuation
  • Mechanical life of at least 50 million cycles, electrical life up to 100,000 operations
  • Self-cleaning contact design resists contamination and maintains performance
  • High dielectric strength (1,000 VAC between terminals; 2,000 VAC to ground), plus 100 MΩ insulation resistance
Switch Type Miniature
