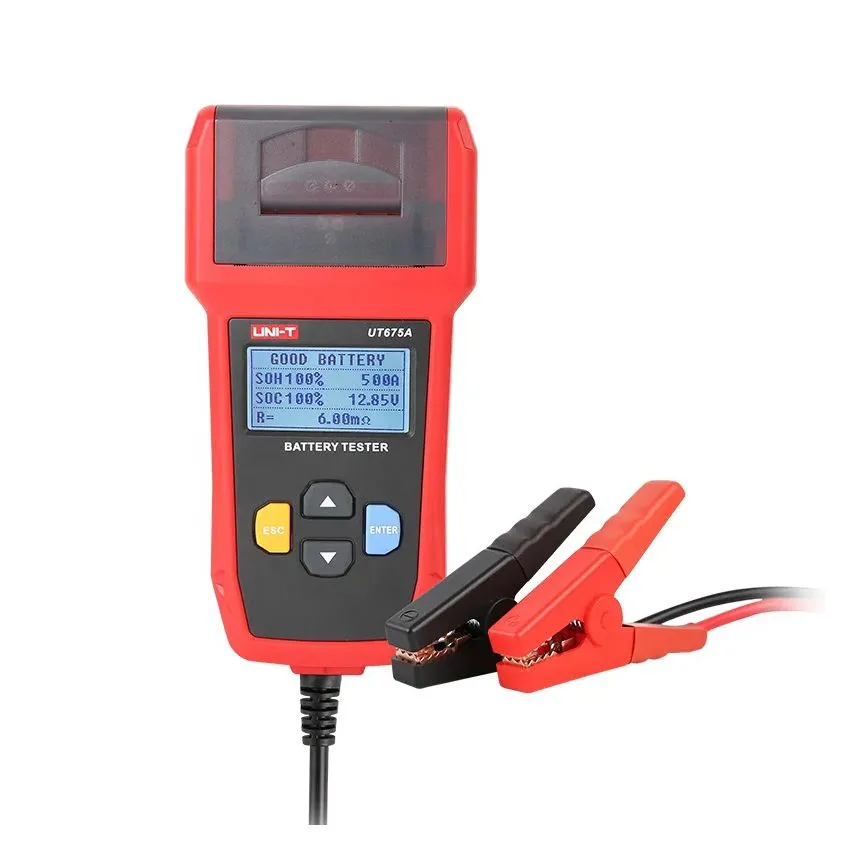

UT675A Battery Tester

The UT675A Battery Tester is a professional tool designed to evaluate the health of automobile batteries quickly and accurately. Suitable for 12V lead-acid batteries with capacities from 30Ah to 200Ah, this CE-certified tester detects common battery faults without disassembly. Equipped with a built-in printer and USB communication, it enables instant report generation and data transfer, making it ideal for both workshops and personal use.

Key Features:

• Certifications: CE, UKCA, FCC
• Battery Tests: 12V cranking lead-acid battery, 12/24V charging or cranking system
• Measurements: Displays battery capacity, voltage, internal resistance, and life
• Testing Method: Four-terminal Kelvin test for high accuracy
• Battery Standards: Supports 10 types of battery standards
• User Options: Language selectable (Chinese/English)
• Convenience: Test batteries without disassembly
• Reporting: Built-in printer for real-time, on-line reports
• Connectivity: USB data transfer for record keeping

Specifications:

• Power: External source required
• Display: 128 × 64 black-and-white lattice
• Net Weight: 413 g
• Dimensions: 95 mm × 47 mm × 183 mm
