Description :

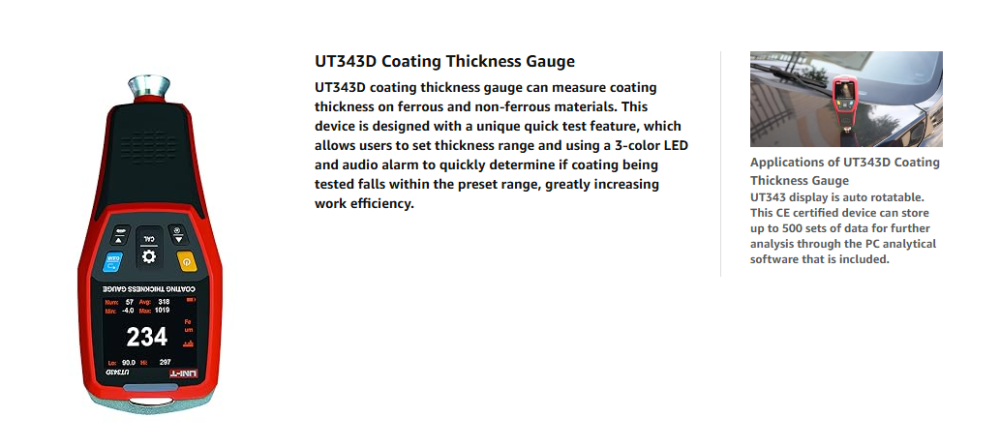

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

Features:

• Certificates: CE, UKCA • LCD brightness control • Auto rotatable screen • Unit conversion • Audio alarm • LED alarm • PC analysis software • USB communication • Quick test mode • Auto power off • Low battery indication

Specifications:

• Measuring range 0~1250um • Accuracy ±(3%H 1)um • Resolution 0.1um (0~99.9um); 1um (100~1250um) • Measurement method Single/Continuous • Measurement mode Max/Min/Avg • Metal type Ferrous/ non-ferrous • Power 3V battery (R03) x 2 • Display 48mm x 36mm • Product color Red and grey • Product net weight 175g • Product size 153.5mm x 64.5mm x 41mm • Standard accessories Micro USB interface cable, standard piece, batteries, cloth bag • Standard individual packing Gift box, English manual
