Description :

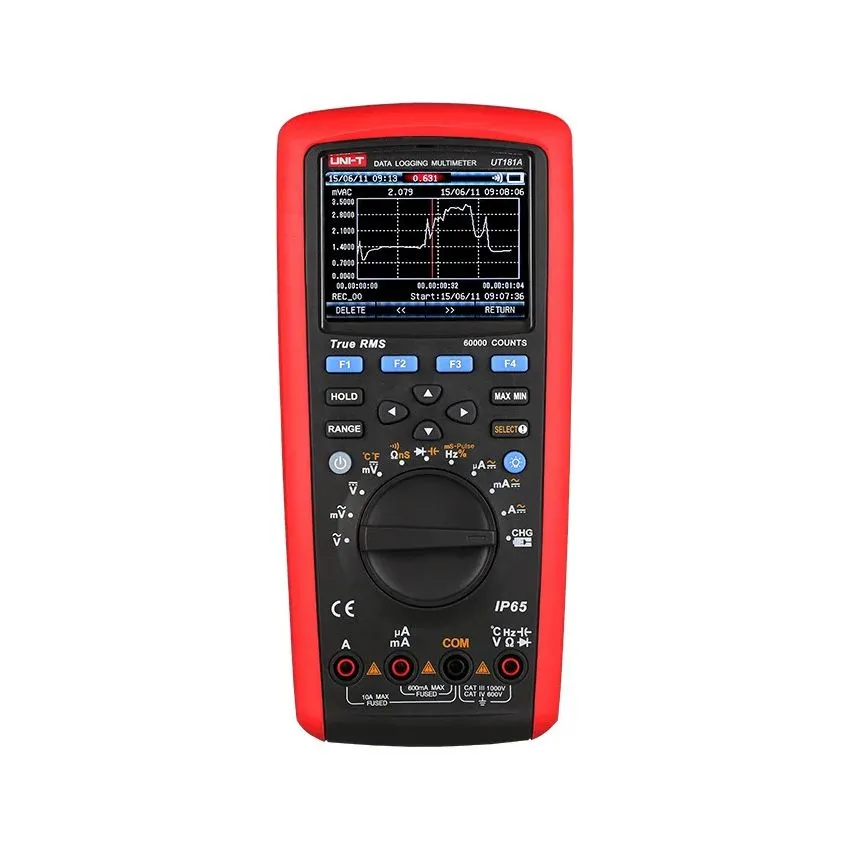

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

Features:

• Certifications: CE, UKCA, cETLus
• Trend capture
• Data logging: 20000
• Data comparison
• 3.5-inch 64k color TFT LCD
• Dual temperature measurement
• Low pass filter
• 2200mAh Li-ion battery
• Real-time and date
• Peak hold
• Bluetooth/APP
• USB interface cable /PC software CD
• IP65

Specifications:

• DC voltage (V) 1000V ±(0.025% 5)
• AC voltage (V) 1000V ±(0.3% 30)
• DC current (A) 10A ±(0.08% 10)
• AC current (A) 10A ±(0.6% 20)
• Resistance (Ω) 60MΩ ±(0.05% 2)
• Admittance (nS) 60nS ±(2% 10)
• Capacitance (F) 60mF ±(2% 5)
• Frequency (Hz) 10Hz~60MHz ±(0.01% 5)
• Temperature (°C) -40°C~1000°C ±(1% 30)
• Temperature (°F) -40°F~1832°F ±(1.5% 50)
• Power Li-ion battery: 7.4V 2200mAh
• Display 3.5-inch 64K color TFT LCD (320 x 240)
• Product color Red and grey
• Product net weight 638.6g
• Product size 225mm x 103mm x 59mm
• Standard accessories Battery, test leads, temperature adaptor socket,
• point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
• Standard individual packing Gift box, carrying bag, English manual
