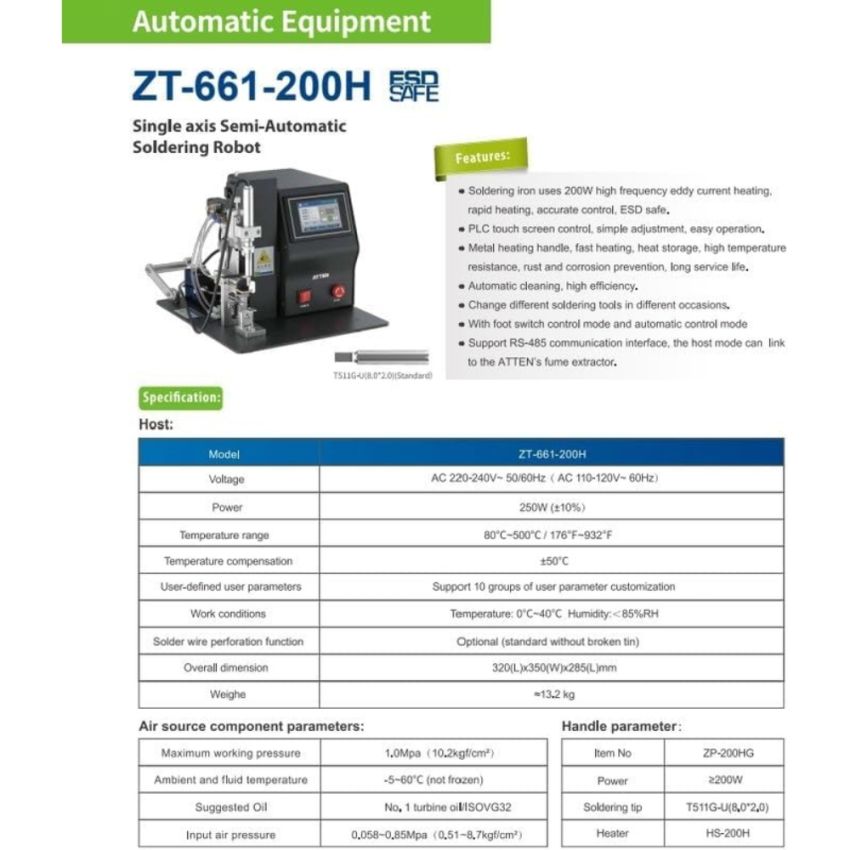

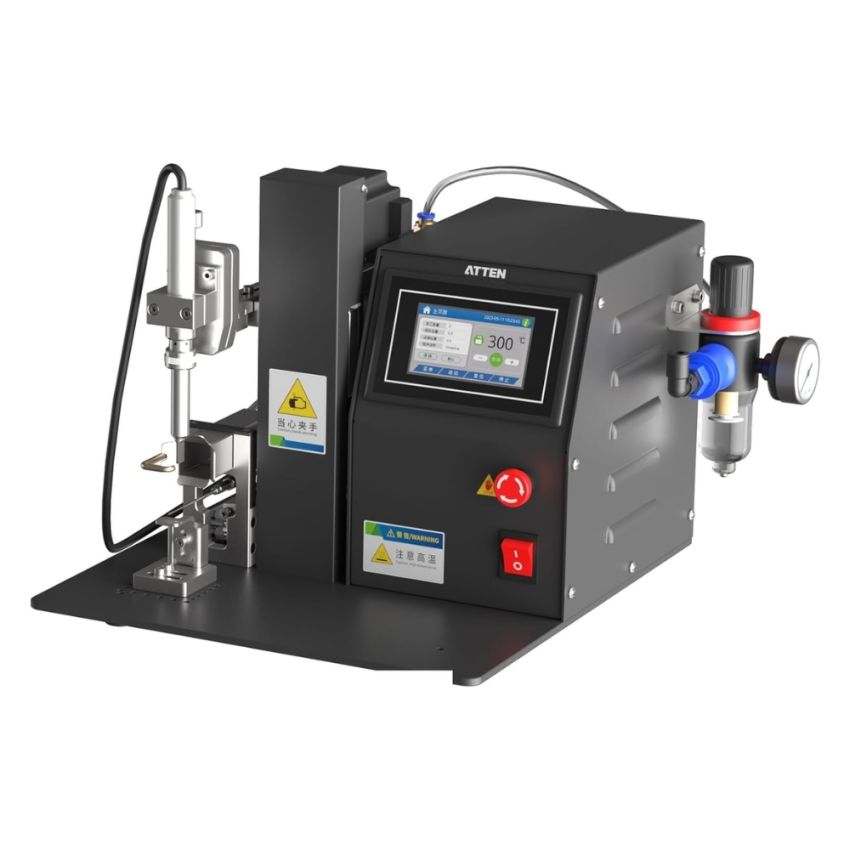

ZT-661-200H, Single Axis Semi-Automatic Soldering Robot, 250W, 80–500°C

The ATTEN ZT-661-200H is a high-precision, semi-automatic soldering robot designed for professional production environments requiring consistent, high-speed soldering. Utilizing 200W high-frequency eddy current heating, this robot ensures rapid thermal response and precise temperature control across a range of 80°C to 500°C. The system is equipped with a PLC touch screen interface for intuitive operation and real-time parameter customization, supporting up to 10 programmable user profiles. Its durable metal handle provides excellent heat retention and long service life, while its optional automatic tip cleaning feature and solder wire perforation capability make it ideal for high-throughput manufacturing. The RS-485 communication port allows it to interface with ATTEN’s fume extraction systems, making it a complete, safe, and smart soldering solution.

Key Features

• 200W High-Frequency Eddy Current Heating – Ensures fast heat-up and precise temperature control.
• PLC Touchscreen Control – Intuitive interface for easy setup, real-time monitoring, and multi-profile management.
• Programmable Operation – Supports 10 groups of customized user parameters for process repeatability.
• Smart Cleaning Function – Optional automatic tip cleaner for enhanced efficiency and tip longevity.
• Dual Mode Operation – Manual via foot pedal or automatic mode for production flexibility.
• RS-485 Interface – Enables integration with ATTEN’s fume extractor or other external automation systems.
