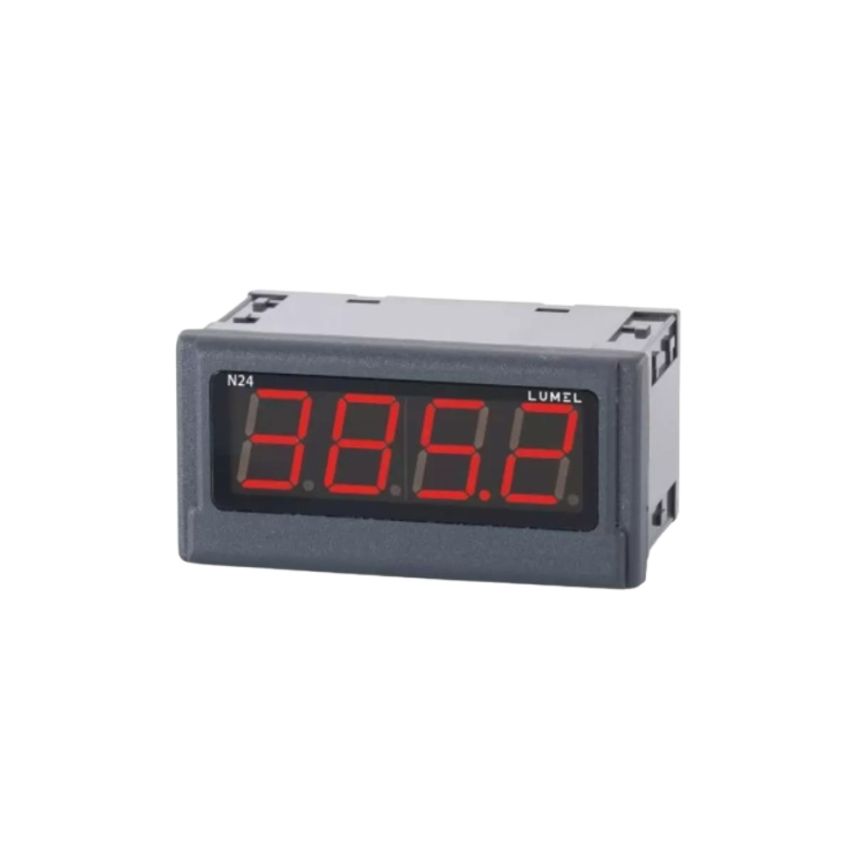

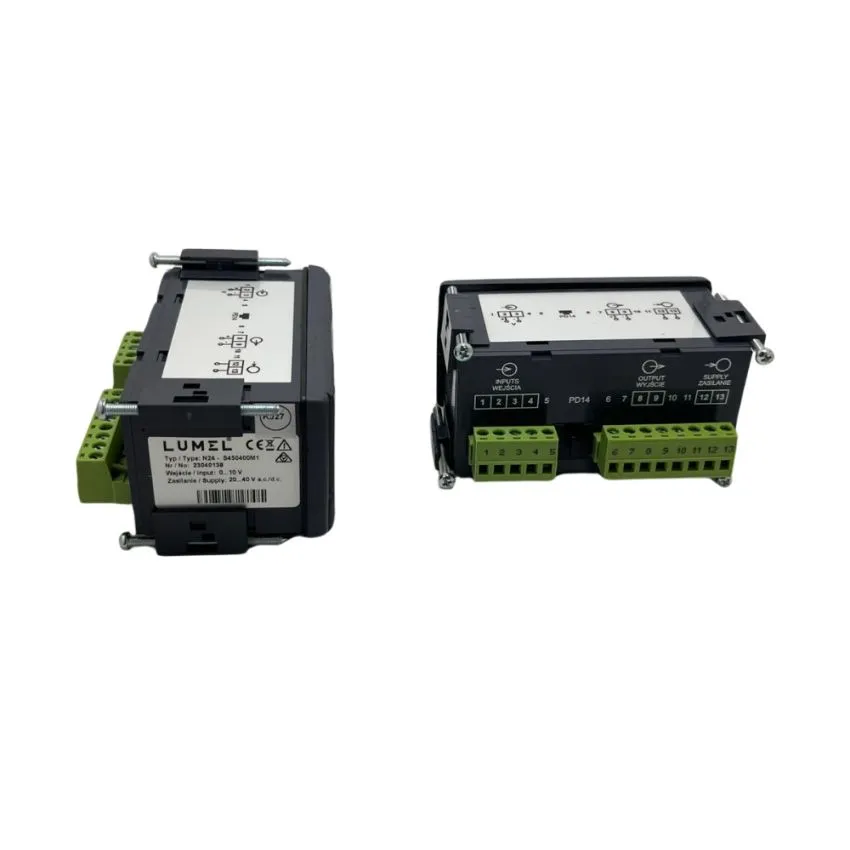

N24S450400M1,Digital Panel Meter, 4 Digit LED Display

The N24S450400M1 Digital Panel Meter is a versatile and highly reliable instrument designed for industrial and laboratory applications. It can measure a wide range of electrical parameters such as DC/AC voltage, DC/AC current, and temperature using thermocouples and Pt100 sensors. With its large 4-digit LED display and customizable measurement parameters, the N24S450400M1 offers exceptional accuracy and ease of use. It supports multiple input types, including J and K thermocouples for temperature measurement. The device provides galvanic isolation between inputs and outputs, ensuring secure operation in demanding environments. Programmable via the PD14 programmer, users can adjust settings such as cold junction compensation, averaging time, and precision according to their specific needs. Built for durability, the front panel is IP65 rated, offering protection against dust and water. Compliant with EN61010-1 safety standards, this digital panel meter is suitable for installation in industrial facilities and research laboratories where precise measurements are essential.

• Multi-Purpose Measurement – Supports DC/AC voltage and current measurement, and temperature measurement using thermocouples (J, K) and Pt100 RTD.
• 4-Digit LED Display – Large, clear 4-digit red LED display for easy readability, ensuring accurate real-time data presentation.
• Wide Measurement Range – Voltage up to ±600V DC, current up to ±6A DC, and temperature measurement with a wide range up to 1370°C.
• Thermocouple & RTD Support – Compatible with J and K thermocouples and Pt100 sensors for temperature monitoring.
• Programmable via PD14 Programmer – Full programmability allows customization of measurement parameters such as averaging time, measurement accuracy, and input settings.
• Galvanic Isolation – Provides galvanic isolation between inputs and outputs for safer and more reliable performance in industrial environments.
