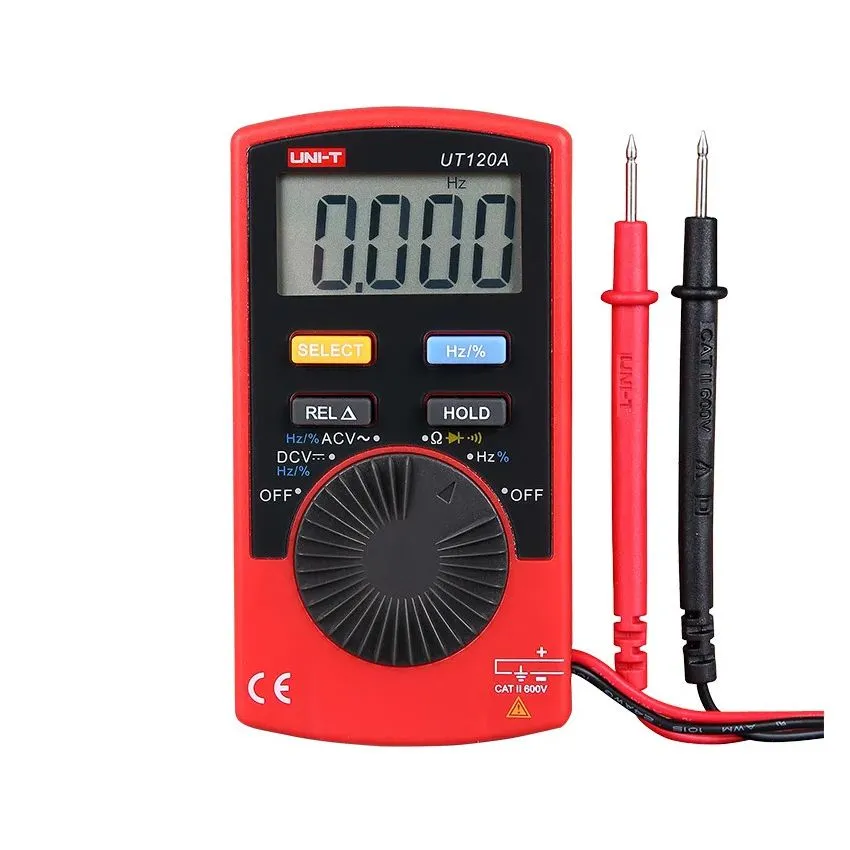

UT120A Pocket Digital Multimeter 4000 Count Auto Range

The UNI-T UT120A is a compact, pocket-sized digital multimeter designed for electronics engineers and DIY enthusiasts. Its slim profile and lightweight design make it an ideal tool for on-the-go troubleshooting and circuit analysis. The multimeter features auto-ranging capabilities, simplifying the measurement process by automatically selecting the appropriate range. With a 4000-count LCD display, users can expect clear and accurate readings across various measurement functions, including DC and AC voltage, resistance, and frequency. Additional features such as diode testing, a continuity buzzer, data hold, and relative mode enhance its versatility. The auto power-off function helps conserve battery life, ensuring the device is ready when needed. Whether you're developing electronic systems or performing routine circuit maintenance, the UT120A offers reliable performance in a portable package.​

Key Features:

• Auto-Ranging Capability: Automatically selects the appropriate measurement range for increased convenience.​
• 4000-Count LCD Display: Provides clear and precise readings on a 43mm x 22mm screen.​
• Comprehensive Measurement Functions: Measures DC voltage up to 600V, AC voltage up to 600V, resistance up to 40MΩ, and frequency up to 100kHz.​
• Additional Testing Features: Includes diode testing and continuity buzzer for circuit verification.​
• Data Hold and Relative Mode: Allows users to freeze readings and compare measurement differences.​
• Auto Power Off: Conserves battery life by automatically shutting down after approximately 30 minutes of inactivity.​

Additional Specifications:

• Measurement Functions: DC Voltage, AC Voltage, Resistance, Frequency, Diode Test, Continuity, Duty Cycle
• Display Type: 4000-count LCD display
• Ranging (Manual or Auto): Auto ranging
• Safety Ratings: CAT II 600 V
• Type (Digital or Analog): Digital
