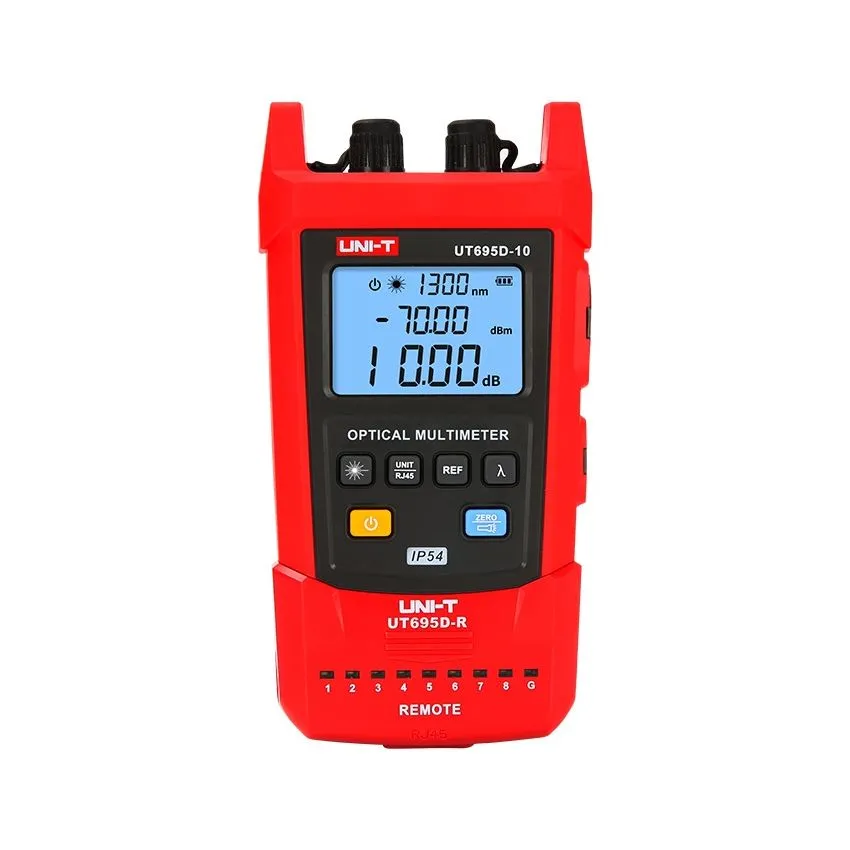

UT695D-10, Fiber Optic Multimeter, Handheld Package

The UNI-T UT695D-10 is a versatile fiber optic multimeter designed for professionals in optical fiber installation, maintenance, and troubleshooting. It integrates essential tools such as an optical power meter, visual fault locator, flashlight, and LAN cable tester into a single handheld device. With its wide wavelength range and high measurement accuracy, it is ideal for tasks like optical signal power measurement, fiber line loss testing, and fault detection. Its rugged design ensures reliability in various field environments.​

Key Features:

• Multifunctional Optical Testing – Combines an optical power meter, visual fault locator (VFL), flashlight, and LAN cable tester in one compact device.​
• Wide Wavelength Range – Supports optical power measurements from 800nm to 1700nm, covering common fiber optic communication wavelengths.​
• High Measurement Accuracy – Offers a measurement range of -70 to +3 dBm with ±5% uncertainty, suitable for precise optical power assessments.​
• Visual Fault Locator – Integrated 10mW VFL operating at 650nm ±10nm for identifying fiber breaks and faults up to 8–10 km.​
• Durable and Portable Design – Features IP54-rated protection against dust and water, a 2-meter drop resistance, and a lightweight build for field use.​
• Rechargeable Battery – Equipped with a 1050mAh rechargeable battery for extended operation without frequent replacements.​

Additional Specifications:

• Type: Fiber Optic Multimeter
• Wavelengths : 800-1700Nm
• Function : Optical Power Measurement, Visual Fault Locator, LAN Cable Tester, Flashlight
• Display : LCD Digital Display With Backlight
