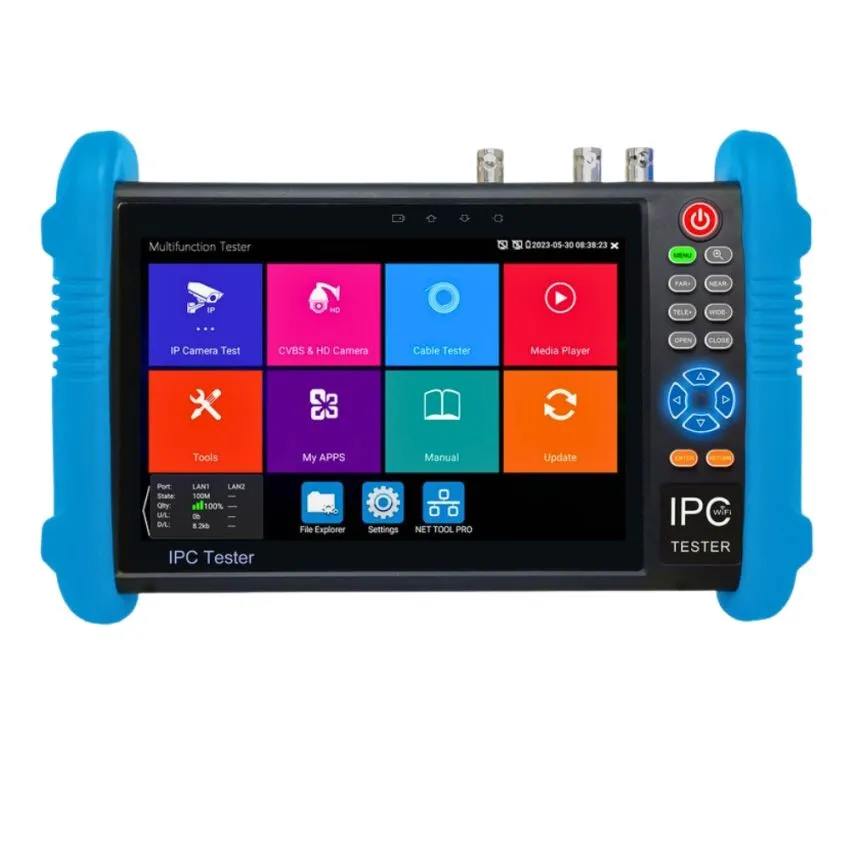

The IPC-9800 Pro Series is a versatile, all-in-one CCTV tester designed for the installation, maintenance, and troubleshooting of IP, analog, and HD coaxial cameras. With its 7-inch IPS touch screen and 1280x800 resolution, it delivers high-quality video display for clear and detailed visuals. The tester supports a wide range of camera types, including 8MP CVI/TVI/AHD/EX-SDI cameras, with 8K H.265 video display capabilities.
In addition to its camera testing functions, the IPC-9800 Pro also includes advanced cable testing features such as TDR cable diagnostics, PoE power output, and UTP cable length measurement. The built-in Wi-Fi analyzer makes it easy to monitor and diagnose network issues on-site, while the HDMI input and output support allows for high-definition media testing.
This tester is packed with features to streamline the installation and maintenance of CCTV systems, including a digital multimeter for electronic diagnostics, support for PTZ camera control, and an intuitive interface with backlit buttons for use in low-light environments. The powerful 7800mAh rechargeable battery provides up to 16 hours of continuous use, making it ideal for long, intensive jobs.
Key Features:- 7-Inch IPS Display: 1280x800 resolution for crisp and clear video and image display.

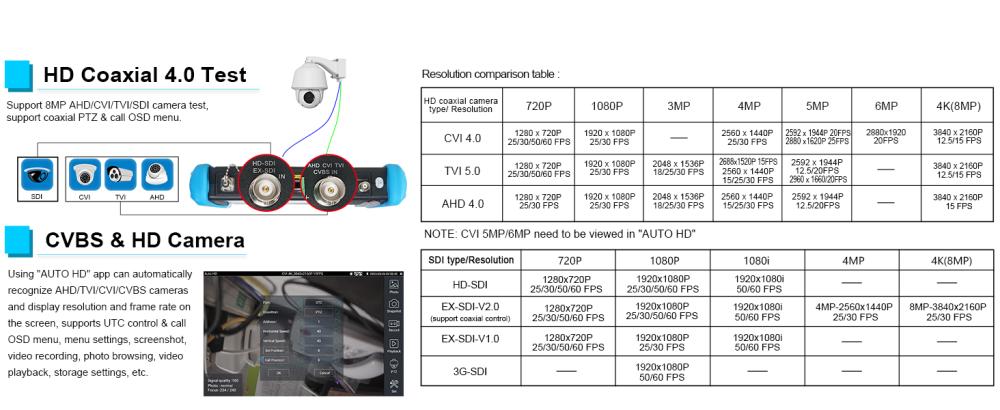

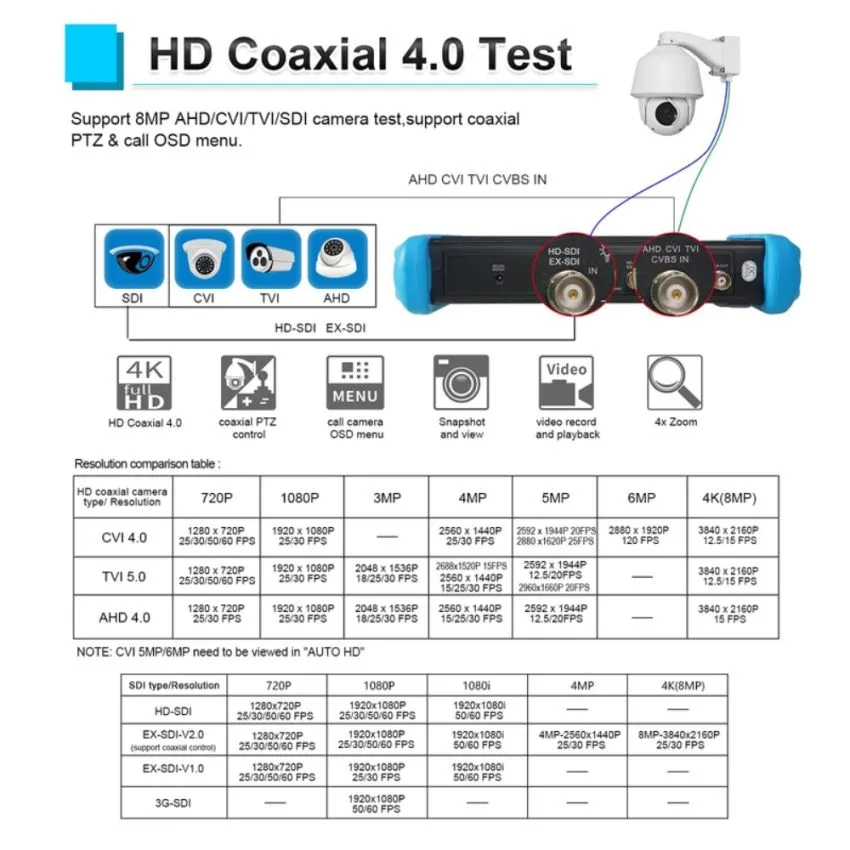

- 8K Camera Testing: Supports 8MP CVI/TVI/AHD/EX-SDI and IP camera testing, including 8K H.265 video display.
- TDR Cable Test: Built-in cable test functions, including UTP, telephone, and BNC cable diagnostics.
- PoE Power Output: 48V PoE output with a max power of 30W for powering cameras during testing.

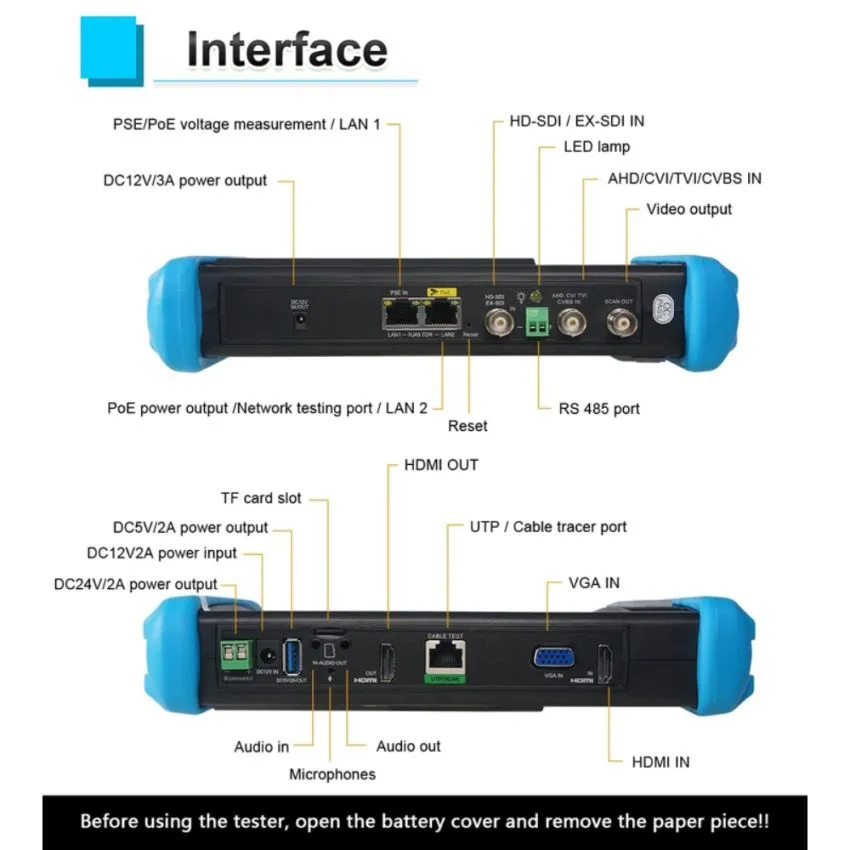

- HDMI Input/Output: 4K 30FPS HDMI input and 4K 60FPS HDMI output supported for media and camera testing.
- Wi-Fi Analyzer: Detects surrounding Wi-Fi signals and monitors real-time network parameters.
