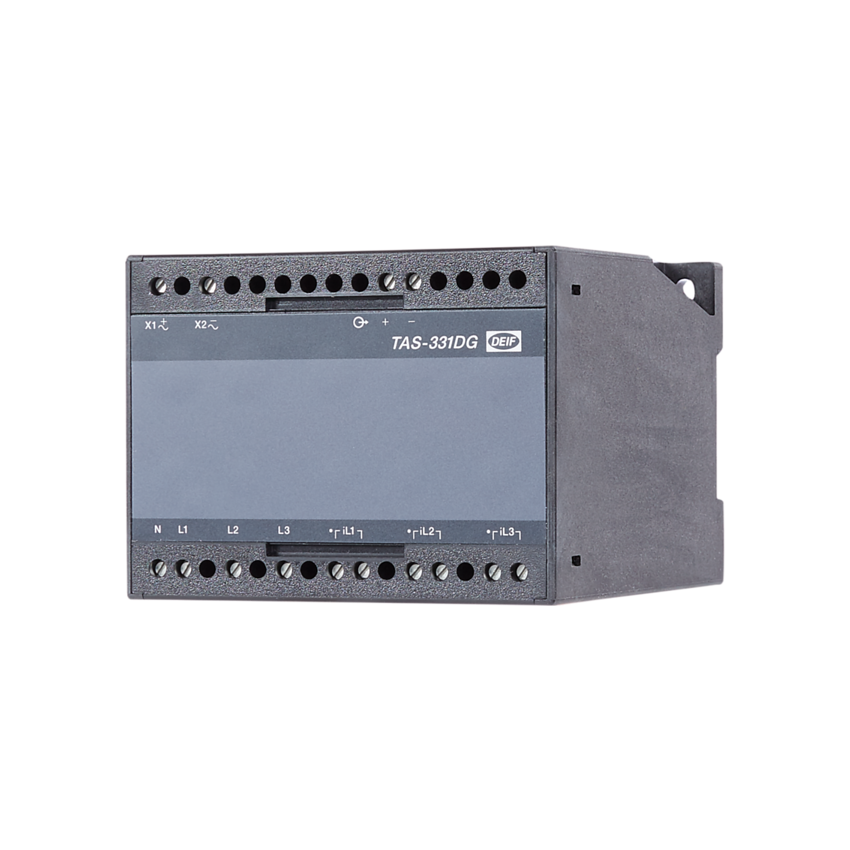

TAS-331DG is a micro-controller based AC transducer with 1 analogue output for measurement of power or reactive power on an AC network. TAS-331DG can be delivered pre-configured to the desired measuring val- ue and range or it can be delivered un-configured for customer configuration through the PC interface.

Features:

● Measures power or reactive power
on 3-phase AC networks
● Class 0.5 (IEC-688) measurement
● Supply and measuring voltage up to
690 V
● Easy configuration via PC interface
● Non-linear output characteristics

Specifications:

Accuracy: Class 0.5 (-10…15…30…55°C) according to IEC 688
Influence,phase angle: ≤ ±0.75°
Meas. current (In): 0.75/1.5/3.0/6.0 A Meas. range (In): 0…200 %
Overload currents:
-20 A max., continuously
-75 A max. for 10 s
-240 A max. for 1 s
Load: Max. 0.5 VA
Meas. voltage (Vn)
-73/140/254/400 V phase to neutral Meas. range (Un): 30…120 % Un (57...400 V)
-127/240/440/690 phase to phase Meas. range (Un): 30…120 % Un (100...600 V)
Overload voltages:
-1.2 x Un max., continuously
-2 x Un max. for 10 s
Load Min:. 480 kΩ
Frequency range: 30…45…65…80 Hz
Indication:
Red LED function: (The LED is located behind the front plate)
-Incorrect wiring = constant light, only active for coupling 1W3, 2W3, 3W3(4) and 1var3, 2var3,
3var3(4). Check at power up, in case of doubt disconnect supply and reconnect.
-Calibration error = flash frequency 5 Hz
-Configuration error = flash frequency 1 Hz
Output 1: analogue output
Standard Range:
-Output (0...100 %): 0...1 mA, 0…5 mA, 0...10 mA, 0...20 mA, 0...1 V, 0...5 V, 0...10 V
-Output (10...100 %): 0.1...1 mA, 0.5...5 mA, 1...10 mA, 2...20 mA, 0.1...1 V, 0.5...5 V, 1...10 V
-Output (20...100 %): 0.2...1 mA, 1...5 mA, 2...10 mA, 4...20 mA, 0.2...1 V, 1...5 V, 2...10 V
-Output (-100...0...100 %): -1...0...1 mA, -5...0...5 mA, -10...0...10 mA, -20...0...20 mA, -1...0..1
V, -5...0...5 V, -10...0...10 V
-Other ranges possible
Limit Max.: ±120 % of nominal output
Output Load:
-Burden if current output: Max. 10 V (max. 1 kΩ)
-Burden if voltage output: Max. 20 mA
Output Cable: Max. length 30 m
∆out/∆Rload:
-10 V, 5 V, 1 V, 20 mA ranges according to IEC 688
-10 mA, 5 mA, 1 mA ranges ±0.5 %
Ambient Temperature:
* -10…55°C (nominal)
* -25…70°C (operating)
* -40…70°C (storage)
Temperature coefficient: Max. ±0.2 % of full scale per 10°C
Response Time:
-Coupling 2W3/2var3, 3W3/3var3, 3W4/3var4 <225 ms, typically 200 ms
-Coupling 1W/1var, 1W4/1var4 <150 ms, typically 125 ms
-Coupling 1W3/1var3 <125 ms, typically 100 ms
Ripple: Twice the class index (peak to peak measurement) according to IEC 688
Galvanic Separation:
-AC aux. supply models:
*Between inputs, outputs and aux. supply: 3750 V-50 Hz-1 min.
-DC aux. supply models:
*Between inputs and outputs: 3750 V-50 Hz-1 min.
*Between inputs and supply: 3750 V-50 Hz-1 min.
*Between supply and outputs: 1500 V-50 Hz-1 min.
Aux. supply voltage:
-57.7-63.5-100-110-127-200-220-230-240-380-400-415-440-450-480-660-690 V AC ±20 %
-24-48-110-220 V DC -25/ 30 %
Consumption: (Aux. supply) 3.5 VA/2 W
Climate: HSE, to DIN 40040
EMC: According to EN 61000-6-1/2/3/4
Protection: Housing: IP40. Terminals: IP20 to IEC 529 and EN 60529
Connections:
-Max. 2.5 mm² multi-stranded
-Max. 4.0 mm² single-stranded
Materials: All plastic parts are self-extinguishing to UL94 (V1)
