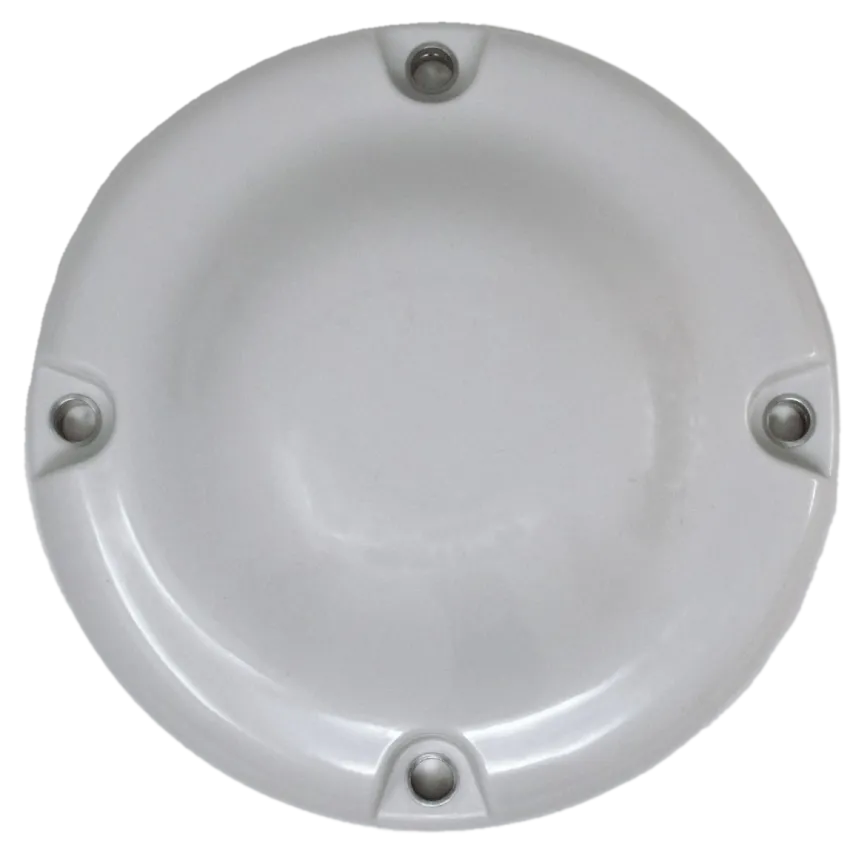

The VSS6337L antenna, featuring Tallysman's innovative VeroStarâ„¢ technology, is a patent-pending design that delivers exceptional performance across the entire GNSS spectrum. It offers high gain for various satellite systems, including GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, and NavIC-L5. Additionally, it provides coverage for satellite-based augmentation systems (SBAS) such as WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India), as well as L-band correction services.



With its unique VeroStarâ„¢ technology, this antenna ensures reliable and accurate reception of GNSS signals, making it an excellent choice for applications that require precise positioning and navigation capabilities. Whether it's in GPS, GLONASS, Galileo, BeiDou, NavIC, or SBAS systems, the VSS6337L antenna offers consistent and robust performance to meet the demands of various GNSS applications.

Features:

Tight phase centre variation (± 2.0 mm; no azimuth)

Low axial ratios from zenith to horizon

Low roll-off from zenith to horizon

High G/T at low elevation angles

Invariant performance from 3.0 to 16 VDC

Low current (50 mA)

Low noise figure (1.8 dB)

Light, compact, and robust design

IP67, REACH and RoHS compliant
