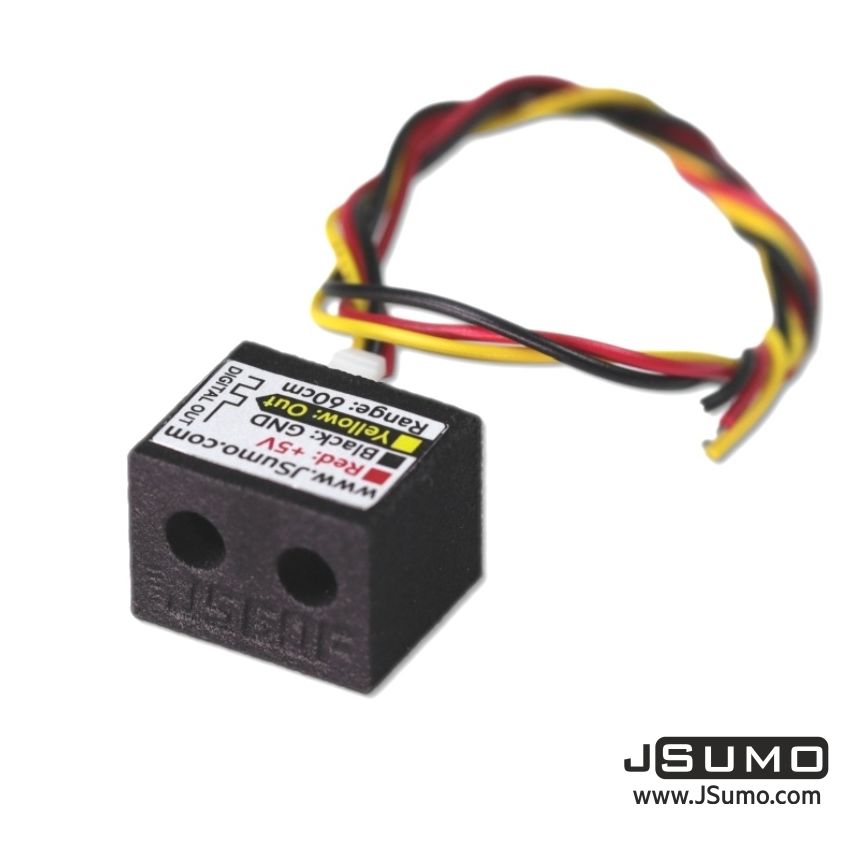

JS60F Infrared Sensor (60cm Range with Background Suspension)

The JS60F Infrared Sensor is a compact high-performance distance sensor developed for mini sumo and robotic object detection applications. It operates from 3.3V to 5V and provides a TTL digital output for easy connection to microcontrollers. Its narrow sensing angle, fast response time and lightweight design make it particularly suitable for high-speed competitive robots using multiple opponent detection sensors.

Key Features

• Infrared object detection sensor
• Detection range up to approximately 60 cm
• Background suppression design
• Operating voltage: 3.3V to 5V
• Operating current: approximately 10 mA
• TTL digital output
• Narrow sensing angle of approximately ±10 degrees
• Response time: approximately 0.9 ms
• Reverse voltage protection
• Weight: approximately 3.5 g

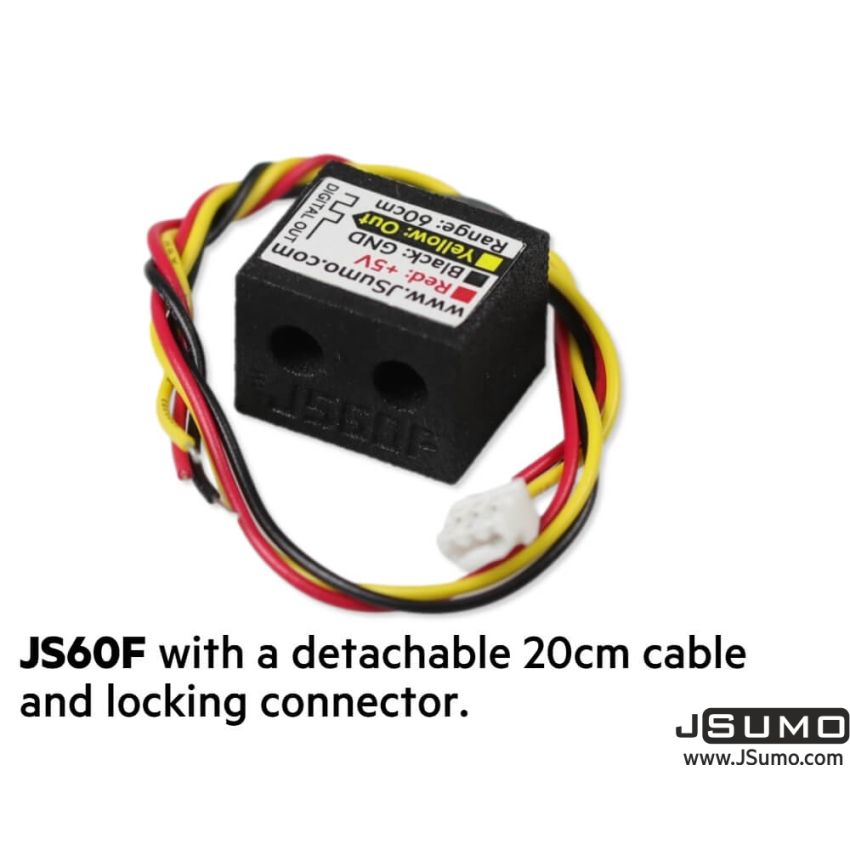

• Locking connector with 20 cm cable
