JORD

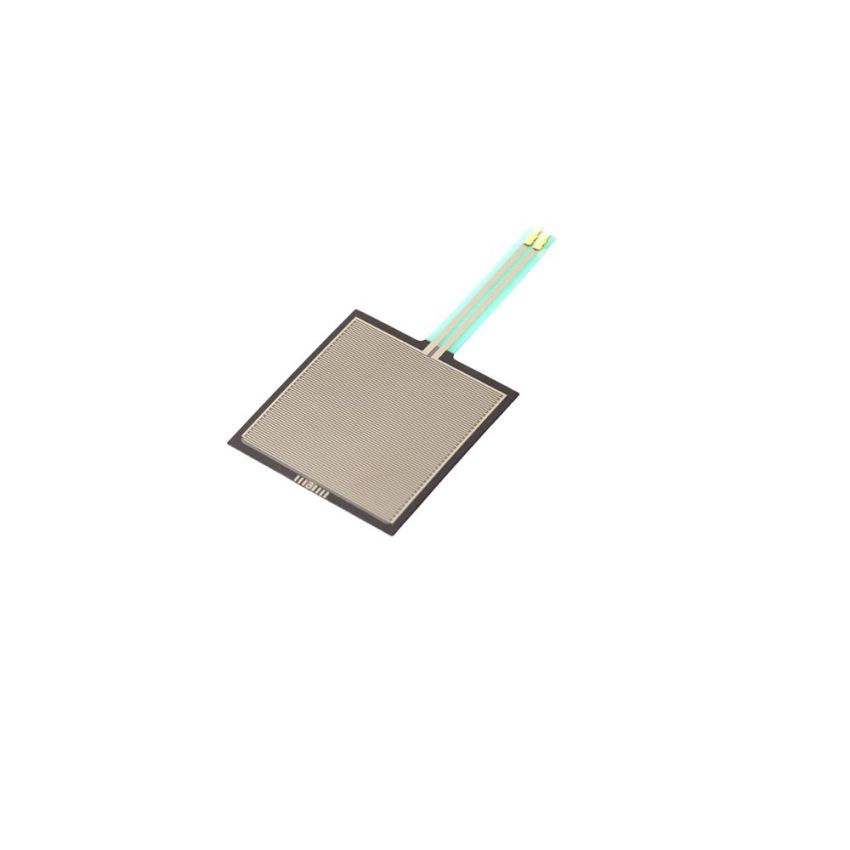

FSR406, Square Force Sensing Resistor, 0-5V DC
AEDÂ 55.00
In stock
Only 8 left
Guarantee safe & secure checkout
# FSR 406 Overview

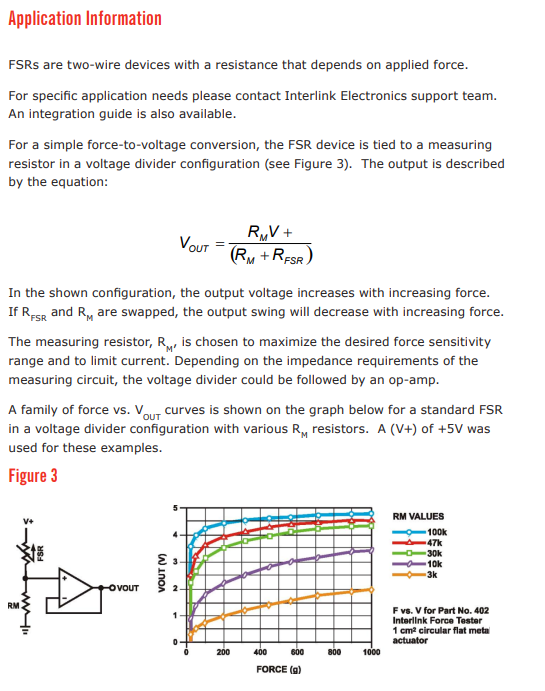

The FSR 406 is a flexible, single-zone force-sensing resistor optimized for human touch control applications in various industries. It decreases resistance as force increases, providing an effective interface for control applications like medical devices and robotics.
Key Features:
- Actuation Force as low as 0.1N and sensitivity range to 10N.
- Simple integration and robust performance for touch-sensing applications.
- Suitable for automotive, medical, and industrial electronics.

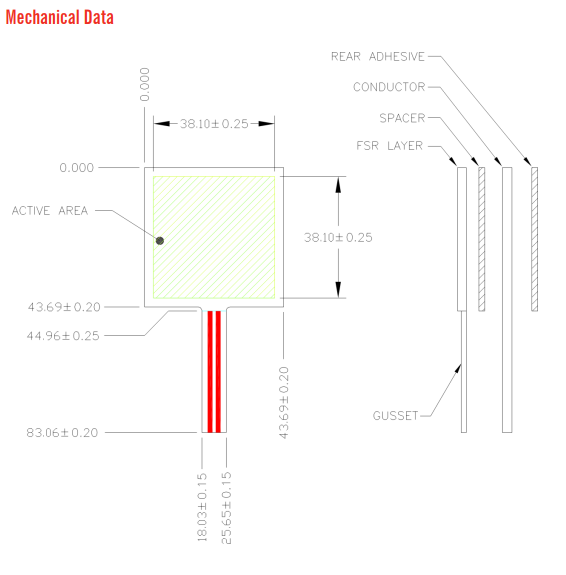

- Active Area: 39.6mm x 39.6mm
- Nominal Thickness: 0.46mm
| Operating Voltage | 0-5V DC |
|---|---|
| Sensor Type | Force Sensor |
| Current Consumption | N/A |
| Communication Interface | N |
