WCS1800 Hall Effect Current Detection Sensor - 5V, 20A Range

SKU
STSx0348
Brand
Part Number
WCS1800
In stock
Add to Wish List

Guarantee safe & secure checkout

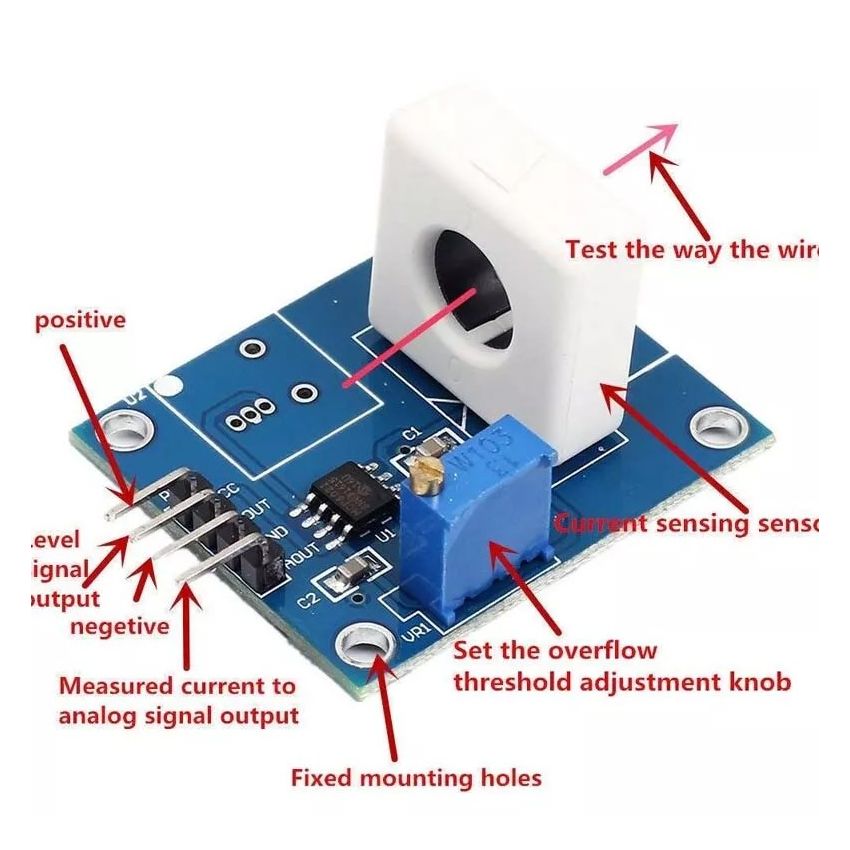

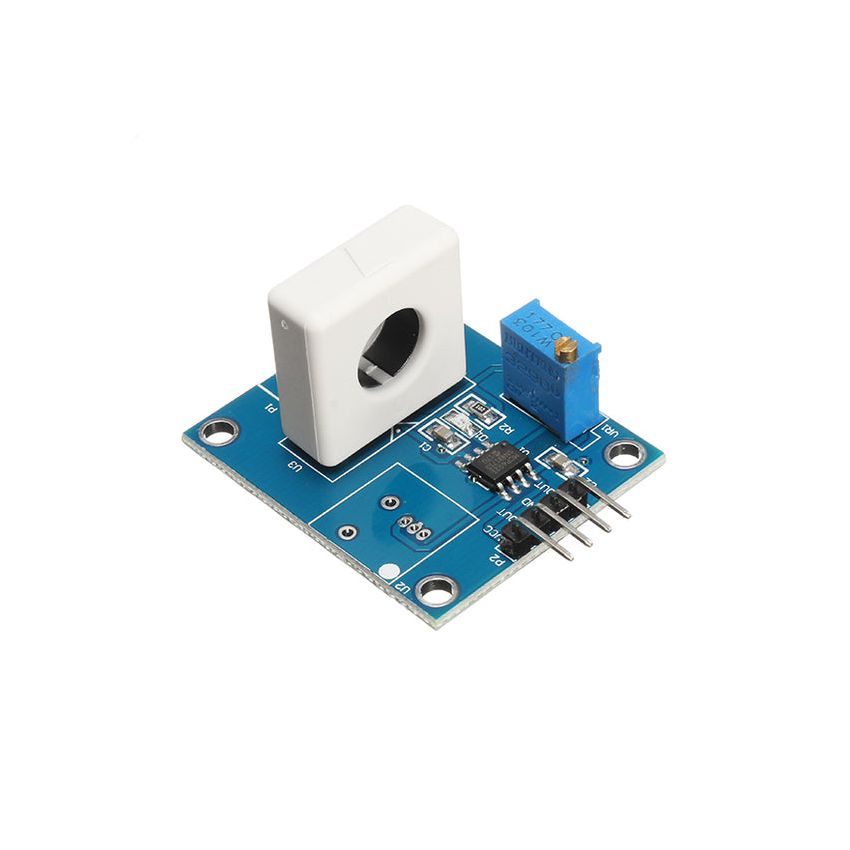

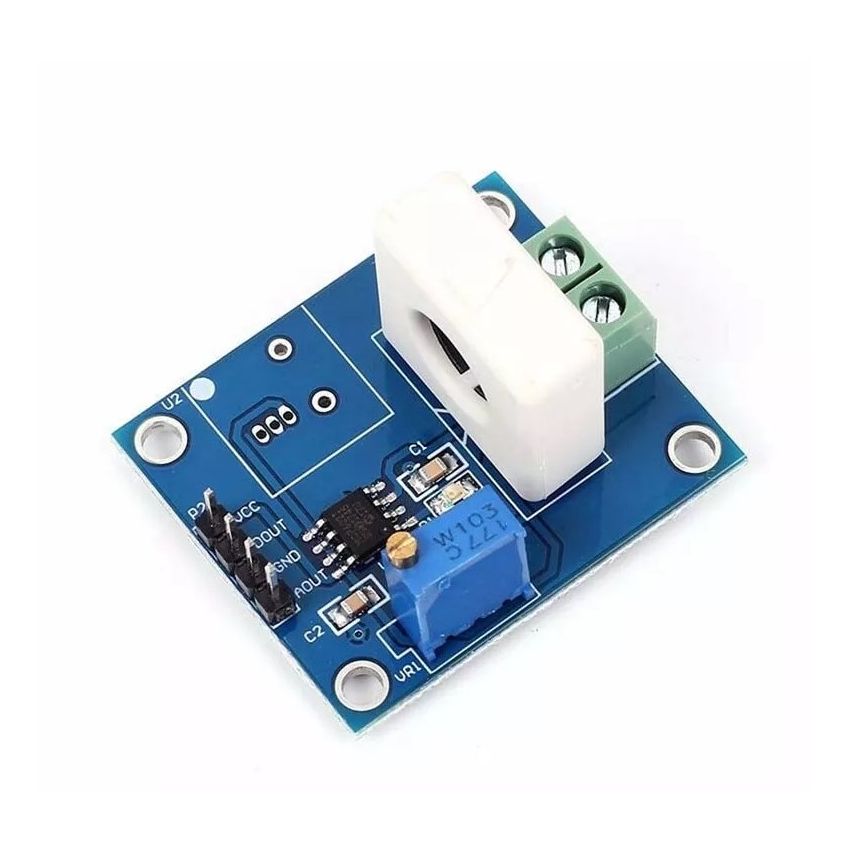

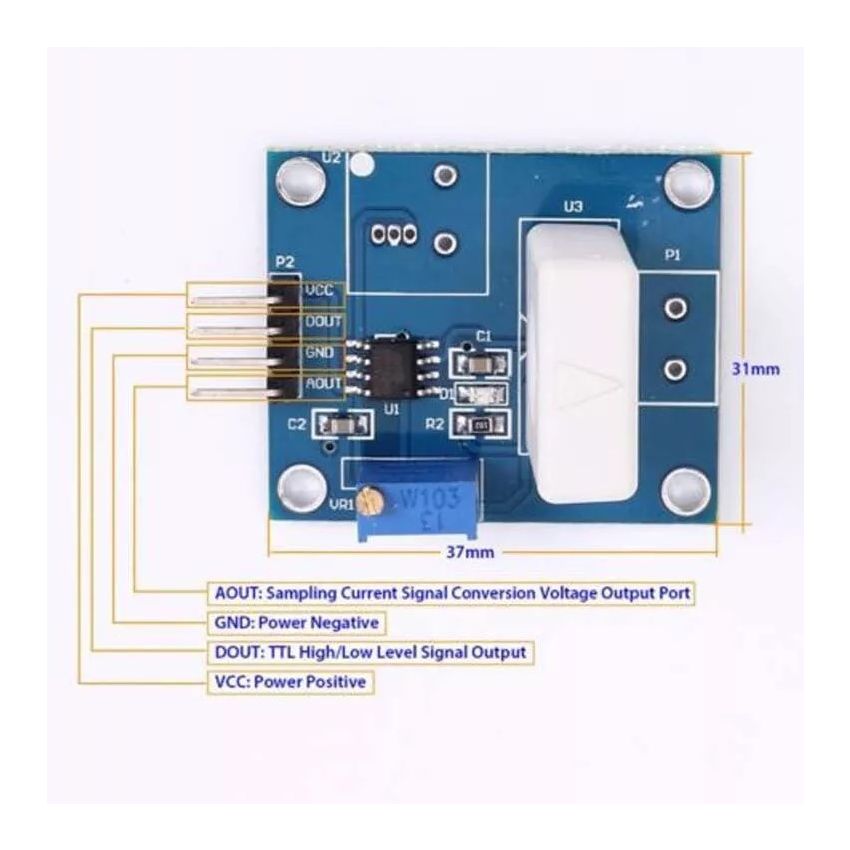

The WCS1800 Hall Current Detection Sensor is designed to detect AC and DC currents with high precision. Utilizing the Hall effect, this sensor can measure currents in the range of ±20A, making it suitable for a variety of applications in power monitoring, battery management systems, motor control, and energy-efficient systems. The sensor provides an analog voltage output that is proportional to the current passing through the detected circuit.

Operating at 5V DC, the WCS1800 offers both low power consumption and high sensitivity, making it ideal for use in microcontroller-based projects such as Arduino or Raspberry Pi. The onboard adjustable potentiometer allows for fine-tuning of the sensor's output, ensuring accurate current readings. The compact design and easy interfacing capabilities make it a valuable tool for applications involving current sensing in robotics, renewable energy, and power supplies.

Key Features :

  • Precise Current Measurement: Accurately detects AC and DC currents in the range of ±20A using Hall effect technology.
  • Real-Time Monitoring: Provides an analog output proportional to the current, enabling real-time current monitoring.
  • Low Power Consumption: Designed for efficient power usage with a typical operating voltage of 5V DC.
  • Adjustable Sensitivity: Onboard potentiometer allows for fine-tuning to achieve precise and customized current readings.
  • Wide Range of Applications: Suitable for power monitoring, motor control, battery management, and overcurrent protection in various systems.
  • Compact and Easy to Interface: Compatible with microcontroller platforms like Arduino and Raspberry Pi, making it ideal for embedded projects and power systems.
More Information
Brand Besomi
GTIN 1,
Current Consumption <20ma
