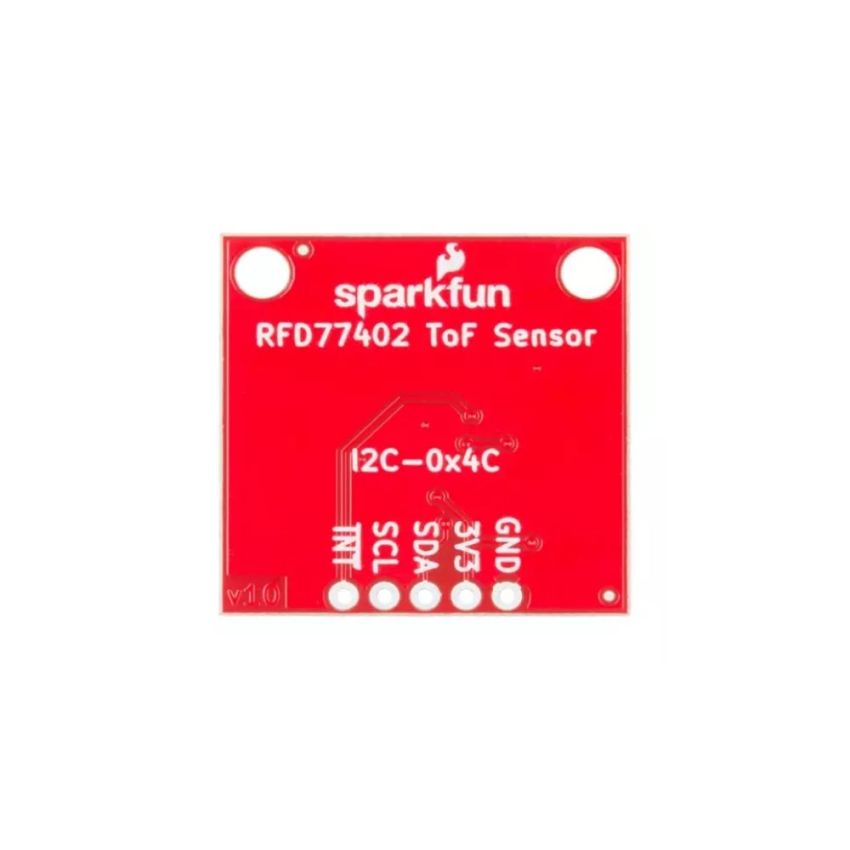

SEN-14722, Distance Sensor Development Tool

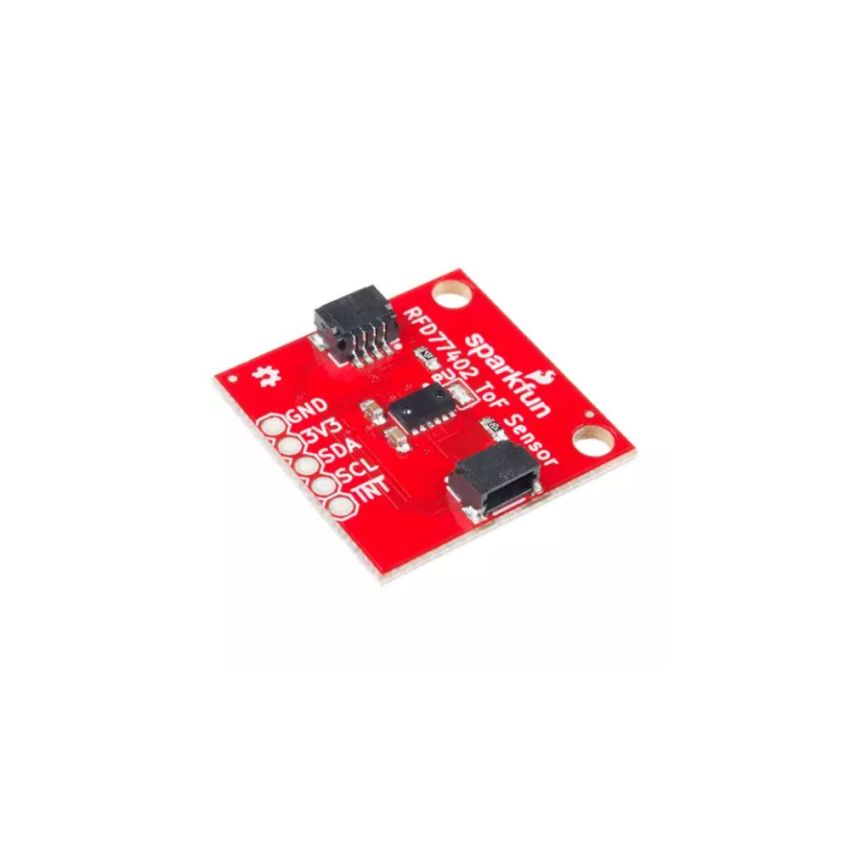

The SparkFun Distance Sensor Breakout utilizes the RFD77402 3D ToF (Time of Flight) sensor module to give you the most accurate measurements at short range, the sensor measures distances from 40mm to 4m with millimeter resolution, making it ideal for applications requiring accurate distance detection. Communication is handled exclusively via the I²C interface that supports a direct 8-bit addressing scheme to access the module user’s register set and an additional 16-bit indirect addressing scheme that is mainly used for debugging purposes or special operations.

Key Features:

• Measurement Range: Measures distances from 40mm to 4m with millimeter precision.
• High Accuracy: ±5mm accuracy with a precision of 1mm.
• Narrow Field of View: 15° to 27° detection angle for focused measurements.
• Fast Read Rate: Capable of reading distances at up to 50Hz.
• Low Power Requirement: Operates on a supply voltage of 2.6V to 3.5V.
• Protective Sticker Reminder: Ensure that the protective film is removed before use to avoid inaccurate readings.
