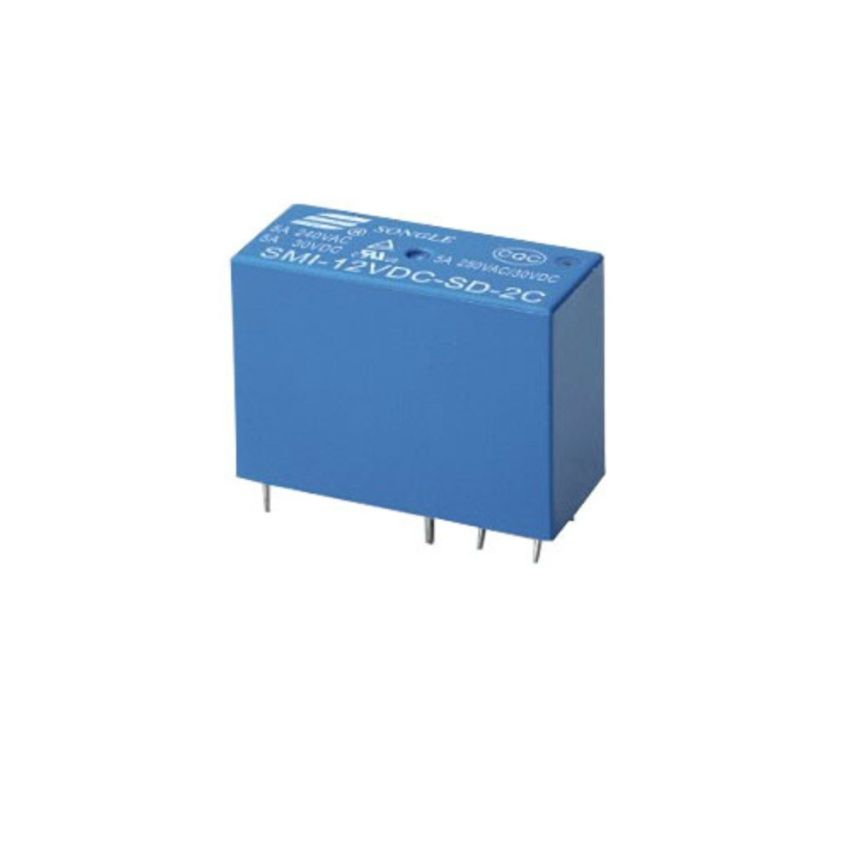

SMI-24VDC-SL-2C ,General Purpose Relay ,24VDC - DPDT, 5A

The SMI-24VDC-SL-2C is a 24VDC general-purpose relay designed for a wide variety of automation, control, and switching applications. Featuring double pole double throw (DPDT) contact configuration, this relay can handle both AC and DC loads up to 5A at 250VAC/30VDC. Its compact design and 5-pin PCB mountable package make it ideal for circuit board integration where space and efficiency are critical. The relay is constructed with high-quality materials to ensure long operational life, stable performance, and high reliability under various environmental conditions. Widely used in industrial control, home appliances, automation systems, and electronic projects, this relay offers excellent value and versatility.

Key Features:

• Rated Coil Voltage: 24VDC, optimized for compatibility with 24V systems.
• Contact Configuration: DPDT (Double Pole Double Throw) for versatile switching applications.
• Contact Rating: 5A at 250VAC/30VDC, suitable for medium-load switching.
• Compact PCB mountable package, space-efficient for embedded designs.
• High dielectric strength and insulation resistance for enhanced safety and durability.
• Operating Temperature Range: -40°C to +85°C, suitable for a wide range of environments.

Additional Specifications:

• Switching Voltage (VDC)/Current: DPDT
• Switching Voltage (VAC)/Current: 2
