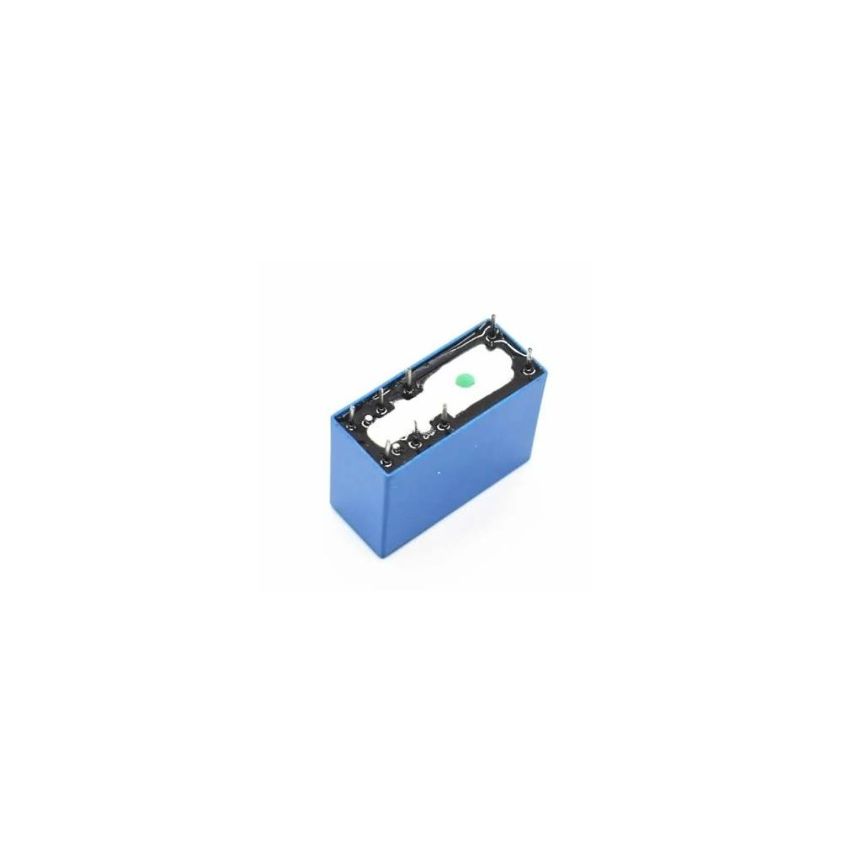

SMI-24VDC-SL-C, High Power Relay, 2 Channels, 24VDC Coil

The SMI-24VDC-SL-C is a subminiature high-power relay from the Songle SMI-2P Series, designed for high-performance switching in industrial, automation, and household applications. With a 24V DC coil and a dual-channel (2 Form C, DPDT) contact configuration, it offers reliable switching capabilities for both AC and DC loads. The relay supports a maximum switching current of 5A at 250VAC or 30VDC, making it suitable for controlling motors, lighting systems, and power supplies.

Its sealed construction provides protection from dust and moisture, making it suitable for use in harsh environments. The silver alloy contacts (AgCdO, AgSnO₂, AgNi) ensure high conductivity and durability for long service life. Additionally, the relay offers high insulation strength (5000VAC between coil and contacts) and fast operation with a response time of ≤10ms.

With its compact design and PCB-mountable form factor, the SMI-24VDC-SL-C relay is ideal for integration into control boards, power management systems, and automation equipment.

Key Features:

• High Power Rating: Supports up to 5A at 250VAC and 5A at 30VDC, suitable for heavy loads.
• Dual Channel (DPDT): Offers 2 switching channels for enhanced control.
• Compact Design: Subminiature relay, ideal for PCB applications.
• Sealed Construction: Available in both sealed and dustproof types for harsh environments.
• High Insulation: 5000VAC dielectric strength between coil and contacts.
• Long Lifespan: 1,000,000 mechanical operations and 100,000 electrical operations.

Additional Specifications:

• Type: High Power Relay
• Number of Channels: 2
• Coil Voltage: 24Vdc
• Switching Voltage (VDC)/Current: 30Vdc,5A
• Switching Voltage (VAC)/Current: 250Vac,5A
