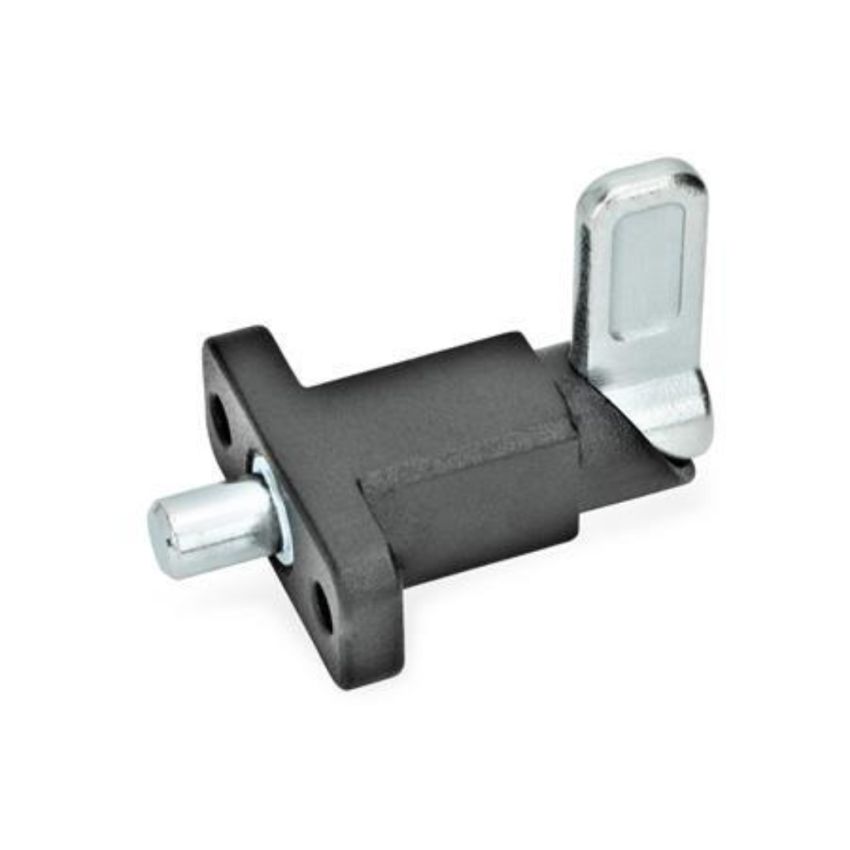

Spring Latch GN 722.2-14-20-A-SW

With spring latches GN 722.2, the plunger pin is retracted over the curve of the guide by a 180° turn of the latch. The notch at the upper end of the curve causes the latch to be held in place if the plunger pin needs to be kept temporarily from protruding. The ZB and SW versions are designed for applications in steel construction, whereas the A4 stainless steel version is suitable for use in particularly aggressive environments.





The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.





The hexagonal mounting holes allow the use of socket cap screws DIN 912 and hexagon screws or nuts according to DIN 931 or DIN 934.





Types:

Type A: Latch position right-angled to fixing holes

Type B: Latch position parallel to fixing holes





Version in Steel ST

Guide

Steel precision casting

zinc plated, blue passivated ZB

zinc plated and plastic coated

black, textured finish SW

Latch

zinc plated, blue passivated

Plunger pin

Steel, zinc plated, blue passivated

Spring

Stainless Steel AISI 316Ti





Version in Stainless Steel A4

Guide / Latch

Stainless Steel precision casting A4

AISI 316

Plunger Pin

Stainless Steel AISI 316

Spring

Stainless Steel AISI 316Ti
