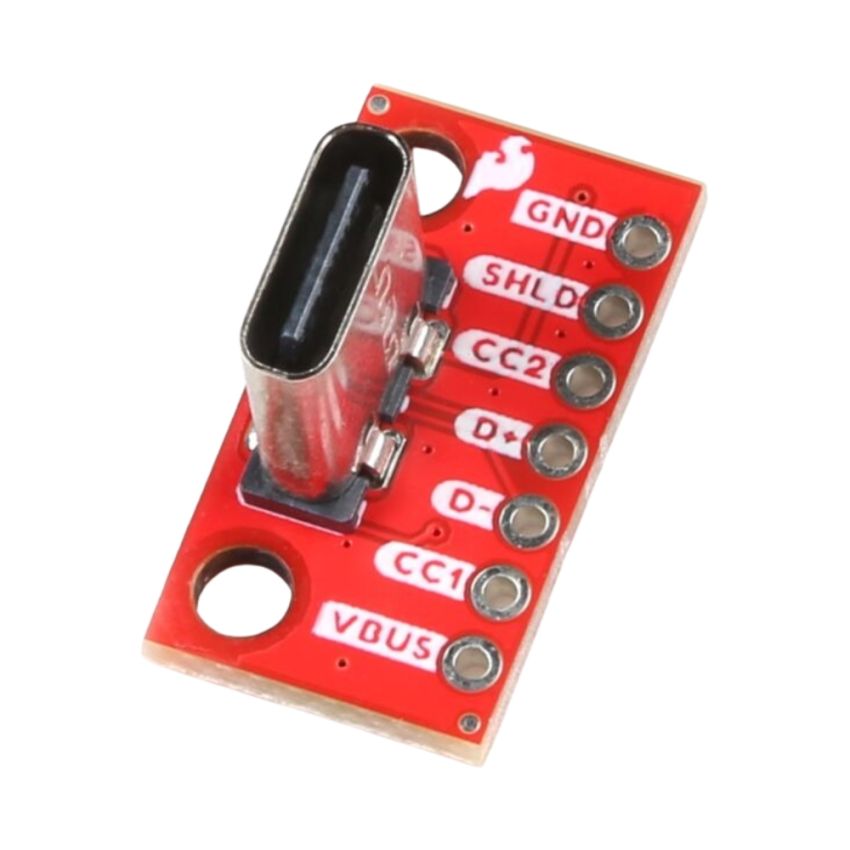

SparkFun USB-C Breakout Board – Easy Prototyping Adapter

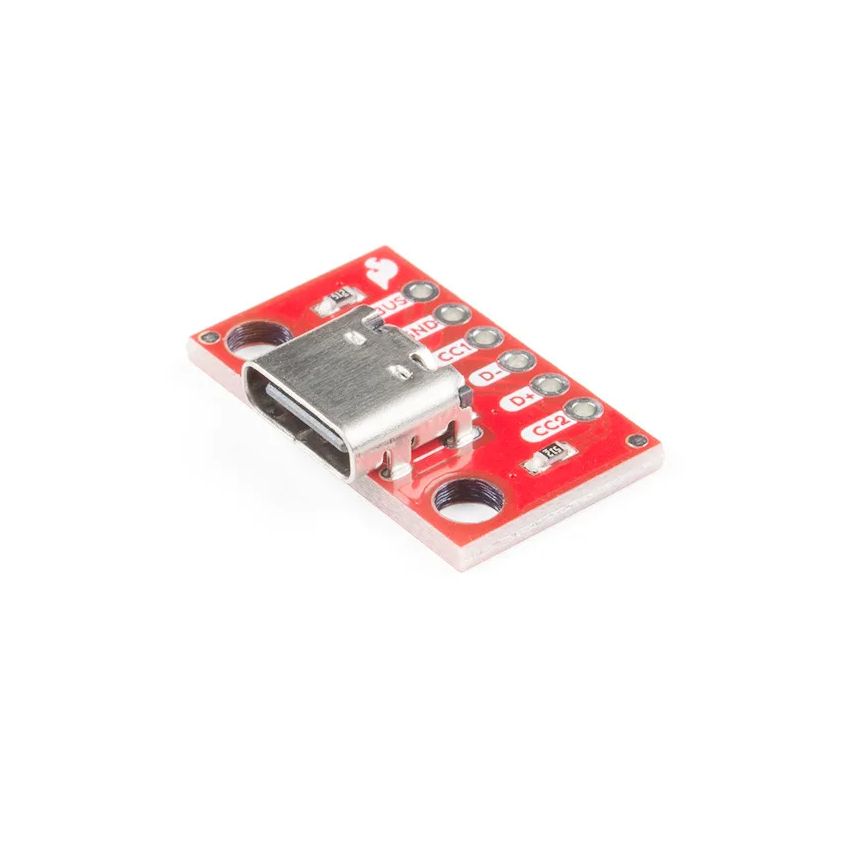

The SparkFun USB-C Breakout Board provides a simple way to interface with USB Type-C connectors in your projects. Designed with ease of prototyping in mind, this breakout board breaks out the USB-C connector pins to clearly labeled 0.1″ spaced headers, making it easy to integrate with breadboards or custom circuits.

The board includes access to VBUS, GND, CC1, CC2, D+, D-, and SHLD pins, ensuring compatibility for basic USB 2.0 communication as well as power delivery negotiation through the configuration channel pins (CC1/CC2). With its compact design and robust USB-C female connector, it’s an excellent choice for testing, prototyping, and incorporating the latest USB-C standard into embedded systems or DIY electronics projects.

Ideal for developers, makers, and engineers working on next-generation devices, this breakout board is a reliable and efficient tool for experimenting with USB-C connectivity.


Key Features:

• USB-C female connector broken out to 0.1″ spaced pins.
• Provides access to VBUS, GND, D+, D-, CC1, CC2, and Shield.
• Compatible with breadboard or wire connections for easy prototyping.
• Supports USB 2.0 communication and USB Power Delivery negotiation.
• Compact, durable PCB with clearly labeled pinouts for error-free use.


  Additional Details:
• Type: USB-C Breakout Board
• Operating Voltage: Up to 5V (VBUS)
• Current Consumption: Dependent on attached device/load
• Communication Interface: USB 2.0 (D+/D-)
