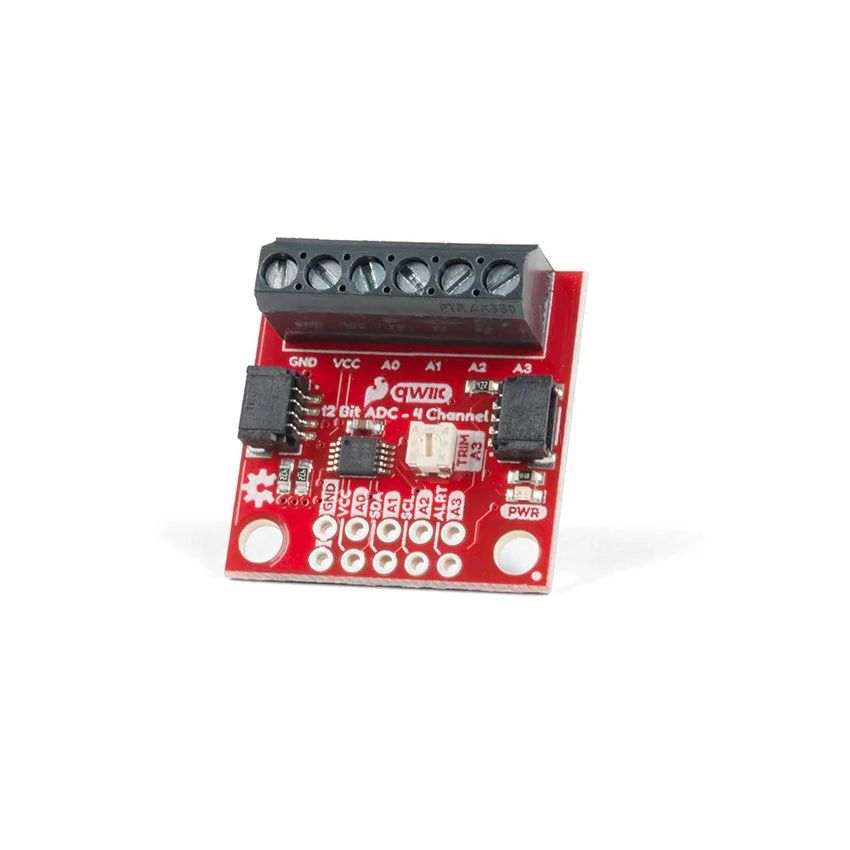

SparkFun Qwiic 12 Bit ADC - 4 Channel (ADS1015)
AEDĀ 60.00
In stock
Only 5 left


Guarantee safe & secure checkout
Guarantee safe & secure checkout
• The SparkFun Qwiic 12 Bit ADC can provide four channels of I2C controlled ADC input to your Qwiic enabled project.
• These channels can be used as single-ended inputs, or in pairs for differential inputs.
- Operating Voltage (VDD): 2.0V-5.5V
(Note: When powering with a Qwiic cable, the input range is only 3.3v)
- Operating Temperature: -40°C to 125°C
- Operation Modes: Single-Shot, Continuous-Conversion (Default), and Duty Cycling
- Analog Inputs:
- Measurement Type: Single-Ended (Default)
- Input Voltage Range: GND to VDD
- Full Scale Range (FSR): ±.256V to ±6.114V (Default: 2.048V)
- Resolution:
- 12-bit (Differential) or 11-bit (Single-Ended)
- LSB size: 0.125mV - 3mV (Default: 1 mV)
- Sample Rate: 128 Hz to 3.3 kHz (Default: 1600SPS)
- Current Consumption (Typical): 150μA-200μA
- I2C Address: 0x48 (Default), 0x49, 0x4A, or 0x4B
• Screw pin terminals for solderless connection to voltage sources
• Four unique I2C addresses:
- 0x48
- 0x49
- 0x4A
- 0x4B
• 2x Qwiic connection ports
• Onboard 10K trimpot
