Description :

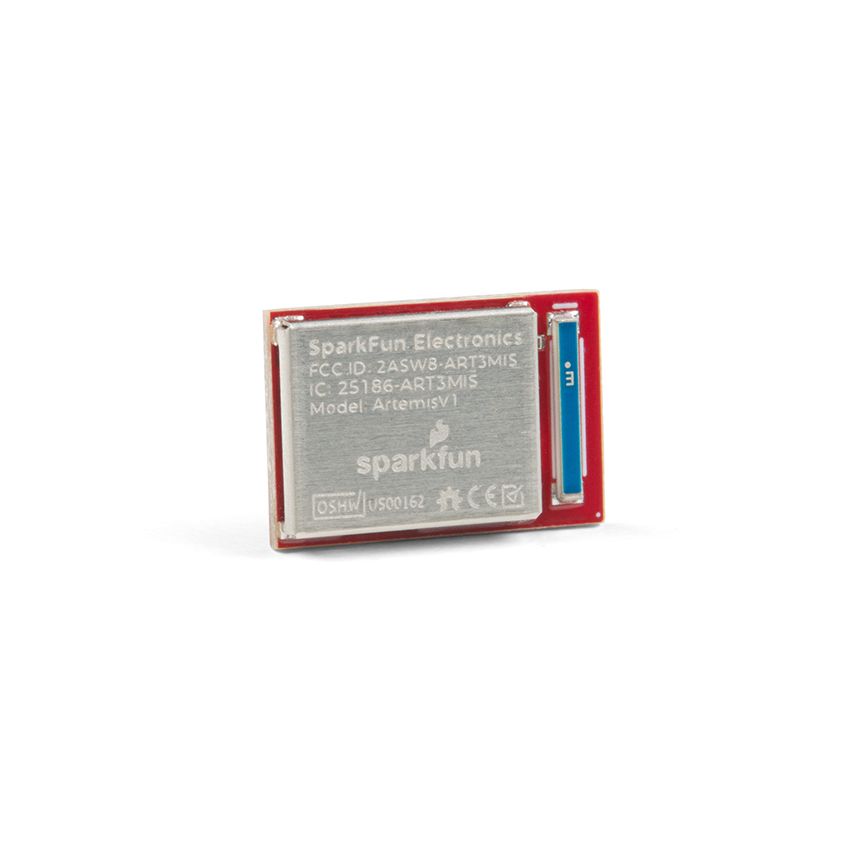

-SparkFun Artemis Module is a Cortex-M4F with BLE 5.0 running at up to 96MHz with low power consumption
-Bridges the market between hobbyists and consumer products, packaged as an easy-to-use module
-Arduino core allows programming and use just like an Uno or other Arduino
-10x15mm module with all support circuitry for Ambiq Apollo3 processor
-Open-source hardware module with design files available
-Made in the USA at SparkFun's Boulder production line, designed for consumer-grade products
-FCC/IC/CE certified and available in full tape and reel quantities
-1M flash and 384k RAM, runs at 48MHz with 96MHz turbo mode available, Bluetooth enabled
-Carrier boards available for easy exploration
-Advanced HAL for pushing Cortex-M4F architecture to its limit.

Specifications:

•1M Flash / 384k RAM
•48MHz / 96MHz turbo available
•6uA/MHz (operates less than 5mW at full operation)
•48 GPIO - all interrupt capable
•31 PWM channels
• Built-in BLE radio and antenna
•10 ADC channels with 14-bit precision with up to 2.67 million samples per second effective continuous, multi-slot sampling rate
•2 channel differential ADC
•2 UARTs
•6 I2C buses
•6 SPI buses
•2/4/8-bit SPI bus
•PDM interface
•I2S Interface
•Secure 'Smart Card' interface
•FCC/IC/CE Certified (ID Number 2ASW8-ART3MIS)
•Dimensions: 10.5mm x 15.5mm
