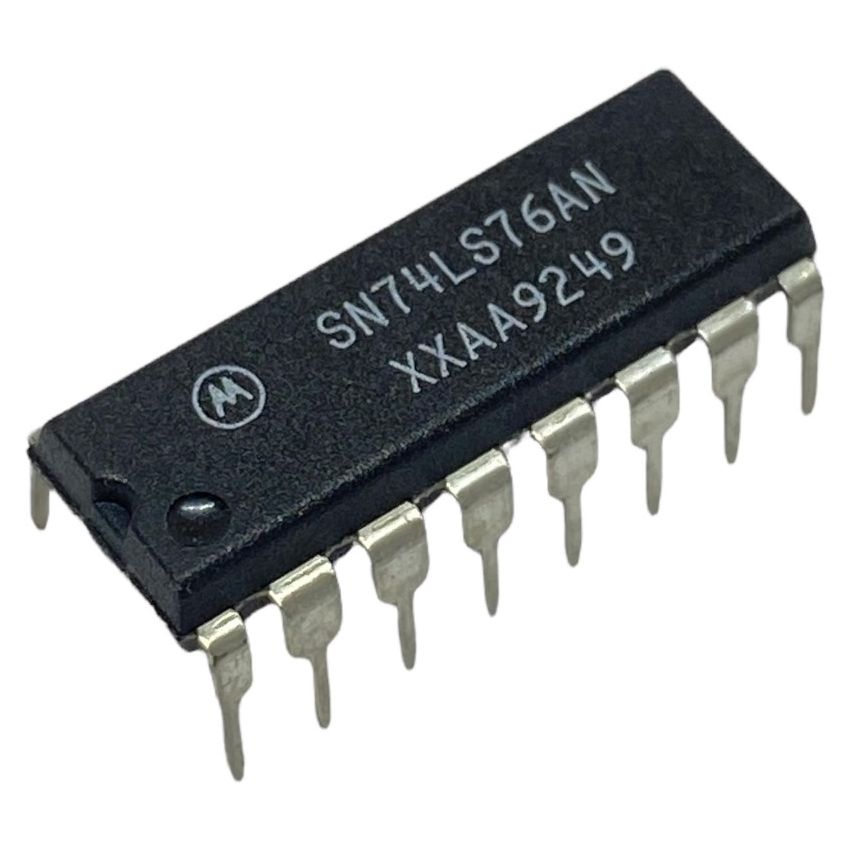

SN74LS76AN - Flip Flop 2 Element JK Type 1 Bit Negative Edge 16-DIP (0.300", 7.62mm)
AEDĀ 3.00


Guarantee safe & secure checkout
Guarantee safe & secure checkout
Function: Set(Preset) and Reset
Type: JK Type
Output Type: Complementary
Number of Elements: 2
Number of Bits per Element: 1
Clock Frequency: 45 MHz
Max Propagation Delay @ V, Max CL: 20ns @ 5V, 15pF
Trigger Type: Negative Edge
Current - Output High, Low: 400µA, 8mA
Voltage - Supply: 4.75V ~ 5.25V
Current - Quiescent (Iq): 4 mA
Operating Temperature: 0°C ~ 70°C (TA)
Mounting Type: Through Hole
Supplier Device Package: 16-PDIP
Package / Case: 16-DIP (0.300", 7.62mm)
