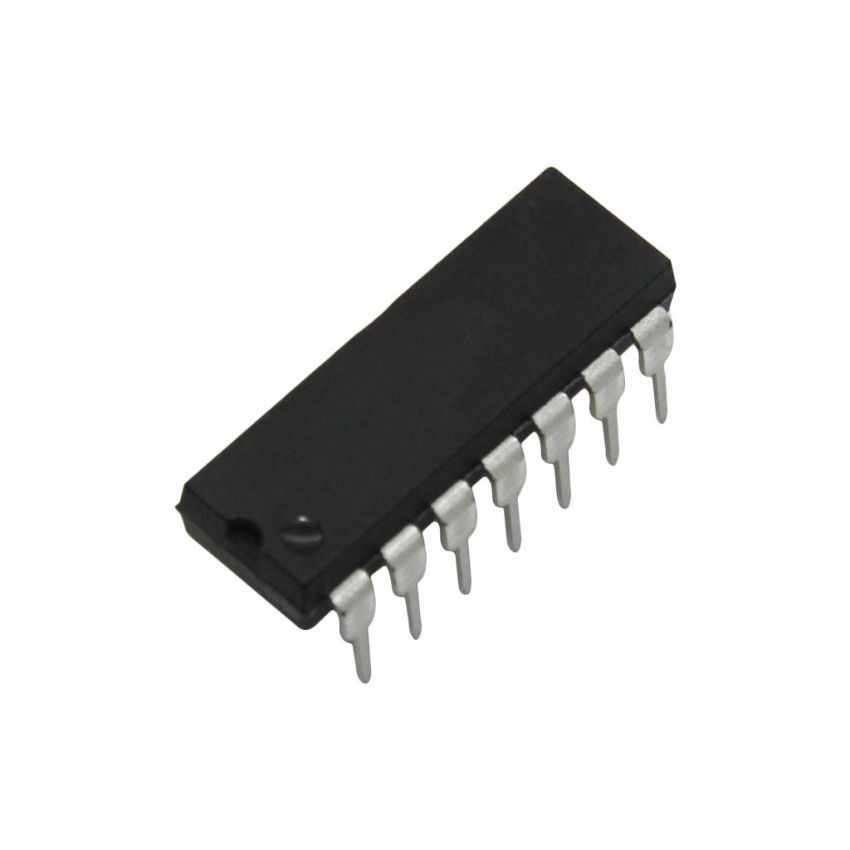

SN74HCT74N - Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-DIP (0.300", 7.62mm)

SKU
SCIx0085
Brand
Categories:
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

Specifications:


Function: Set(Preset) and Reset
Type: D-Type
Output Type: Complementary
Number of Elements: 2
Number of Bits per Element: 1
Clock Frequency: 46 MHz
Max Propagation Delay @ V, Max CL: 25ns @ 5.5V, 50pF
Trigger Type: Positive Edge
Current - Output High, Low: 4mA, 4mA
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 4 µA
Input Capacitance: 3 pF
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Through Hole
Supplier Device Package: 14-PDIP
Package / Case: 14-DIP (0.300", 7.62mm)

More Information
Brand Generic
GTIN 1,
IC type N/A
