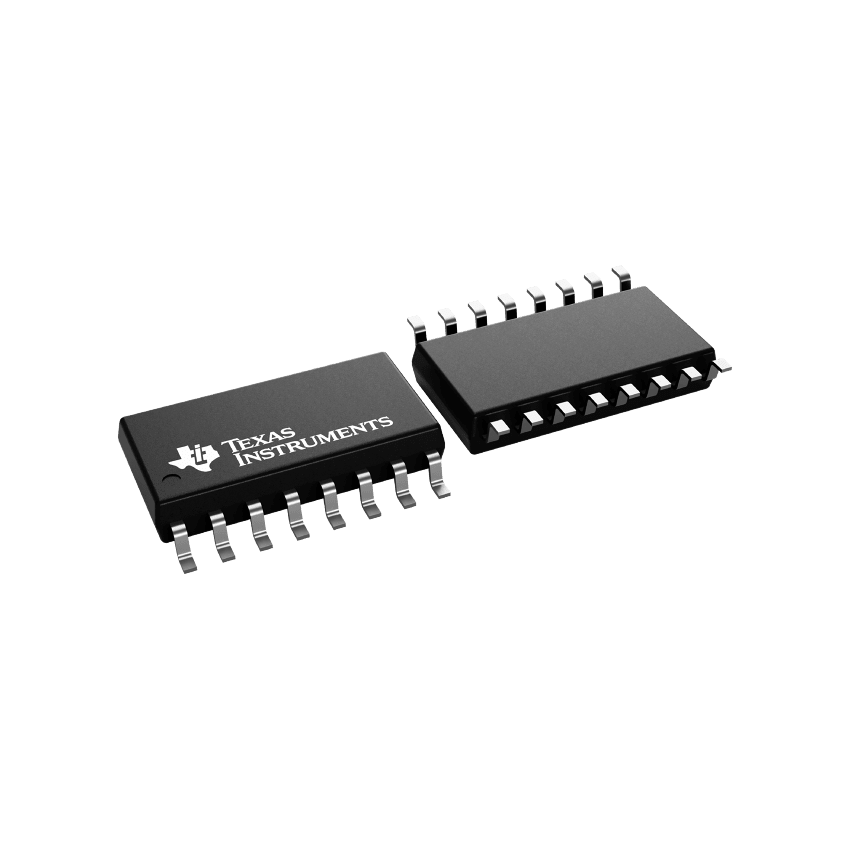

SN74HC148

SKU
SCIx3555
Brand
Categories:
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

"The ’HC148 devices feature priority decoding of the inputs to ensure that only the highest-order data line is encoded. These devices encode eightdata lines to 3-line (4-2-1) binary (octal).Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry.Data inputs and outputs are active at the low logic level.

Features:


Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 80-μA Max ICC
Typical tpd= 16 ns
±4-mA Output Drive at 5 V
Low Input Current of 1μA Max
Encode Eight Data Lines to 3-Line Binary (Octal)


Applications Include:


− n-Bit Encoding
− Code Converters and Generators

"

More Information
Brand Generic
GTIN 1,
IC type N/A
