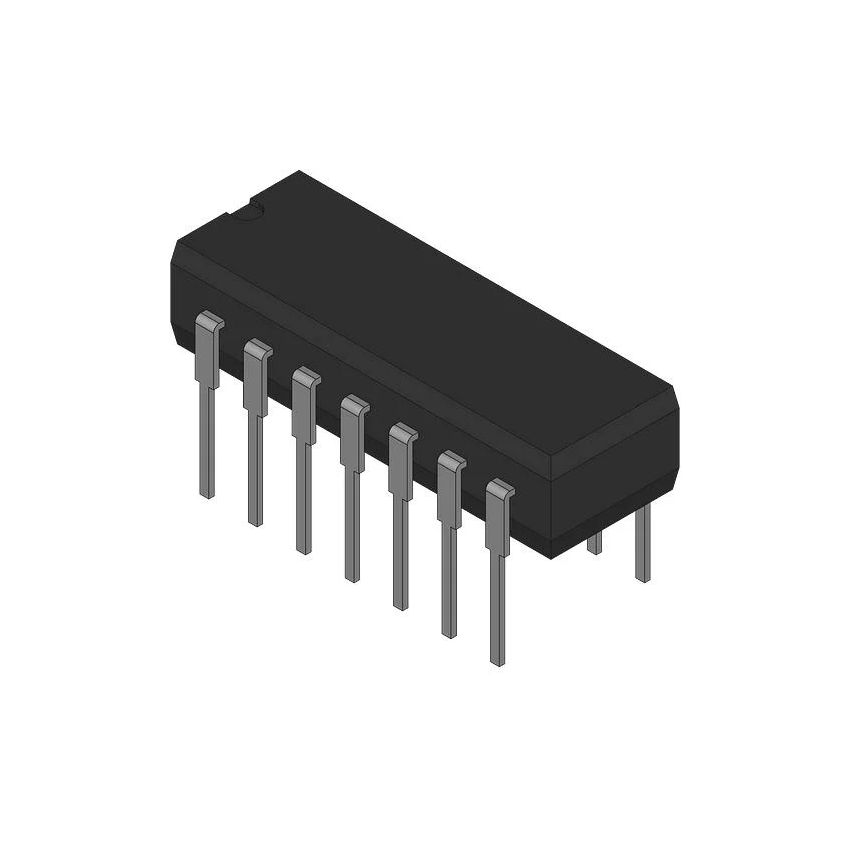

SN74LS00N, Quad 2-Input NAND Gate Logic IC 5V - 14-Pin PDIP

The SN74LS00N is a TTL logic IC that contains four independent 2-input NAND gates in one 14-pin package. Each gate performs the NAND logic function, meaning the output goes LOW only when both inputs are HIGH. Texas Instruments describes the SN74LS00 family as 4-channel, 2-input, 4.75V to 5.25V bipolar NAND gates, making it suitable for standard 5V TTL digital logic circuits.

This IC is commonly used in digital electronics, logic control circuits, signal conditioning, pulse generation, clock logic, combinational logic circuits, microcontroller interfacing, and educational electronics projects. The PDIP through-hole package makes it easy to use on breadboards, stripboards, and through-hole PCBs.

The SN74LS00N is useful when a circuit requires basic NAND logic operations, and NAND gates are also widely used as universal logic gates because they can be combined to create other logic functions such as NOT, AND, OR, and NOR. Texas Instruments confirms that the SNx4xx00 devices contain four independent 2-input NAND gates and perform the positive-logic NAND function.

Key Features

Includes four independent 2-input NAND gates, allowing multiple logic functions to be built using one IC.
Designed for standard 5V TTL logic systems, with an operating voltage range of 4.75V to 5.25V.
Comes in a 14-pin PDIP through-hole package, suitable for breadboards, prototyping, educational kits, and repair work.
Performs the positive-logic NAND function, where the output is LOW only when both inputs are HIGH.
Useful for building digital logic circuits, basic gate networks, signal inversion, latches, oscillators, and control circuits.
Part of the 74LS TTL logic family, commonly used in legacy digital systems, electronic training labs, and 5V logic applications.

Additional Details

Part Number: SN74LS00N
IC Type: NAND Gate Logic IC
Logic Function: Quad 2-Input Positive NAND Gate
Number of Gates: 4
Inputs per Gate: 2
Logic Family: 74LS / Low-Power Schottky TTL
Operating Voltage: 4.75V to 5.25V
Typical Logic Voltage: 5V
Package Type: 14-Pin PDIP
Mounting Type: Through-hole
Output Function: NAND
Typical Applications: Digital logic circuits, gate-level control, clock logic, microcontroller interfacing, educational electronics, signal conditioning, and repair of TTL-based circuits.
