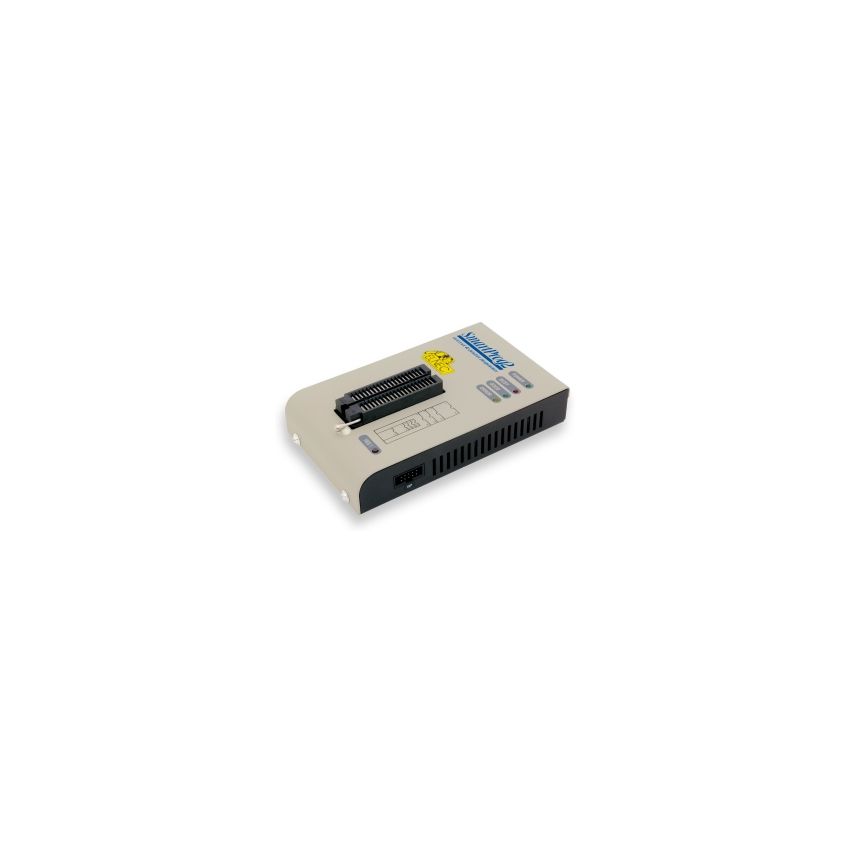

SmartProg2

The SmartProg2 is a small, fast, and powerful universal programmer capable of supporting 38270 devices from 260 different manufacturers with its 3.84 version of software (as of March 23, 2023). It features a DIL40 ZIF socket, which allows devices in DIL packages up to 40 pins to be programmed without the need for adapters. Additionally, it has a connector for in-circuit programming (ISP), making it versatile for various programming needs.

The SmartProg2 programmer connects to a PC via a USB port, which can be USB 2.0 full speed or USB 1.1 compatible. It is compatible with all versions of MS Windows from Windows XP to Windows 11, and supports both 32-bit and 64-bit systems running on x86/x64 compatible PCs. The control program provided with the programmer is comfortable and easy to use.

The SmartProg2 comes with free software updates, which can be downloaded from the internet. It is powered by an external power adapter with an operating voltage of 15-20V DC, and a maximum current of 0.5A. The power consumption of the programmer is maximum 6W when active and about 1.4W in sleep mode.

The dimensions of the SmartProg2 programmer are 160x95x35 mm (6.3x3.7x1.4 inch), and it weighs approximately 500g (17.65 oz) without the external power adapter. It operates within a temperature range of 5°C to 40°C (41°F to 104°F) and a humidity range of 20% to 80% (non-condensing).

The base configuration package of the SmartProg2 includes the programmer itself, a switchable power adapter with a stabilized output of 15V DC/1A, a power cord, a connection cable for PC-programmer communication, an ISP cable for in-circuit programming, a diagnostic pod for self-testing of the programmer, an anti-dust cover for the ZIF socket, a CD with software and user's manual, and a transport case (cardboard box) for easy storage and transport.

The SmartProg2 is made in Slovakia and comes with a warranty of 3 years. It has been approved by a CE laboratory to meet CE requirements, ensuring its compliance with safety and quality standards.
