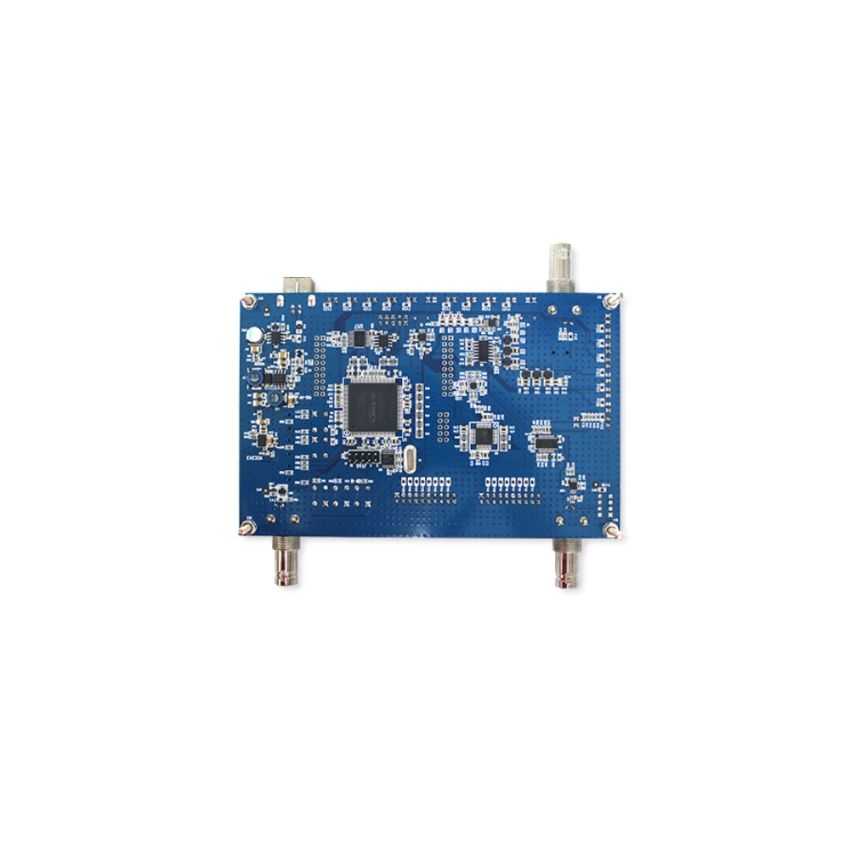

STB3 Oscilloscope Demo Training Board USB Powered Multi Signal Generator

SKU
SEGG0505
Part Number
STB3
Brand:
Delivery in 2 Weeks.
Pre-Order
Only 1 left
Add to Wish List

Guarantee safe & secure checkout

The Siglent STB3 is a comprehensive oscilloscope demonstration and training board engineered to showcase and evaluate advanced oscilloscope functionalities. This USB powered board generates a wide range of analog and digital signals including sine wave square wave AM PWM glitch slope runt pseudo noise and serial bus signals such as I2C SPI UART LIN and CAN. It is ideal for use in education training MSO testing protocol decoding and trigger function demonstrations. The STB3 is compatible with all Siglent oscilloscopes featuring an MSO option and provides hands on experience for testing triggering decoding and display capabilities. This versatile board eliminates the need for external signal generators when performing oscilloscope training or evaluation and is powered directly from the USB port of the connected scope or computer.

Key Features

  • Built in analog waveforms including sine square AM noise PWM and glitch
  • Generates digital serial protocol signals such as I2C SPI UART LIN and CAN
  • USB powered for convenient operation without external supply
  • Ideal for oscilloscope demos triggering training and pass fail tests
  • Compatible with Siglent oscilloscopes supporting MSO features
  • Compact and lightweight form factor for easy bench or educational use
Display None integrated used with external oscilloscope
Sensor Type Electrical Conductivity Meter
Portability Portable USB powered standalone demo board
Input Voltage Range USB powered 5V input
Bandwidth Not applicable
Channels Up to 16 logic channels
