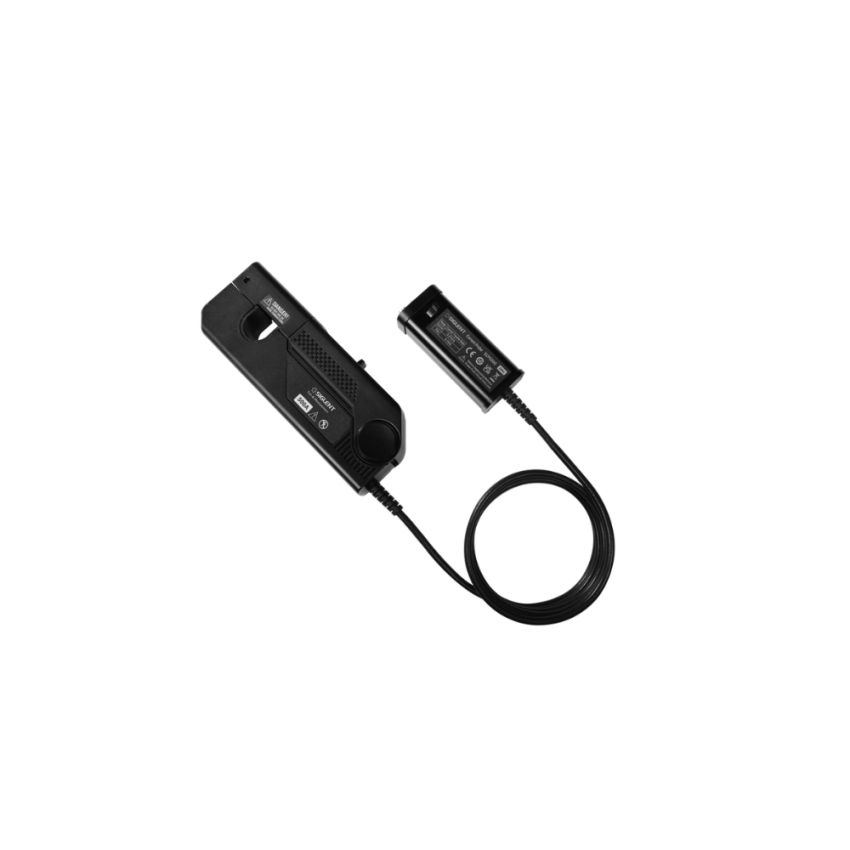

SCP5500 DC 2 MHz Current Probe 500 ArMS Continuous 750 A Peak

The SCP5500 is a high‑current, SAPBUS‑powered active DC/AC current probe in Siglent’s SCP5000 series. Featuring a bandwidth of DC to 2 MHz and a rise time ≤ 175 ns, it accurately captures fast current transients. The probe supports continuous currents up to 500 ArMS and peak currents up to 750 A, with dual sensitivity ranges of 75 A (0.1 V/A) and 500 A (0.01 V/A). It achieves high measurement fidelity with a DC accuracy of ±1% ±10 mA at 75 A and ±1% ±100 mA at 500 A. Designed with a conductor jaw size of up to 20 mm, it integrates seamlessly with compatible oscilloscopes via the SAPBUS interface, requiring no external power. The compact probe head weighs approximately 475 g and includes features like automatic zero setting and overload pop‑up protection. Ideal for high-current waveform monitoring in industrial test environments, power electronics labs, automotive testing, and more.

Key Features

• Measures both AC/DC current up to 500 ArMS continuous and 750 A peak, with dual-range switching (75 A/500 A).
• Bandwidth of DC to 2 MHz, with rise time ≤175 ns for transient response.
• Dual sensitivity outputs: 0.1 V/A (75 A range) and 0.01 V/A (500 A range).
• High DC accuracy: ±1% ±10 mA at 75 A, ±1% ±100 mA at 500 A.
• Powered directly from oscilloscope via SAPBUS; no external supply needed.
• Supports conductor diameters up to 20 mm, with overload pop‑up safety indicator.
