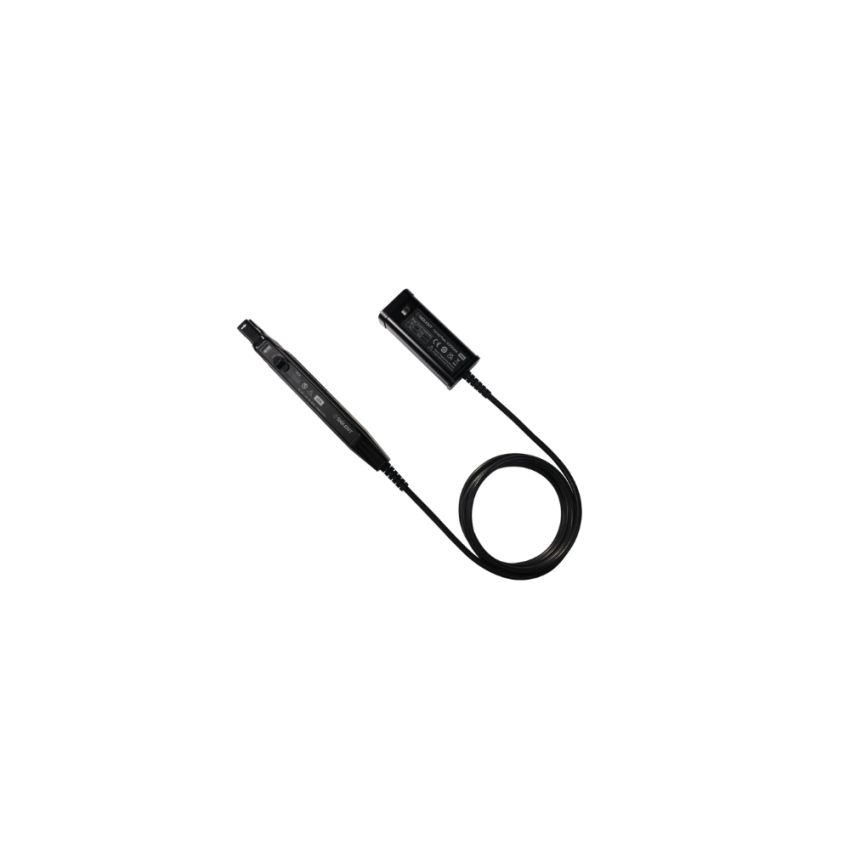

SCP5030A DC 100 MHz Current Probe 30 ArMS Continuous 50 A Peak

The SCP5030A is a high-performance DC/AC active probe in Siglent’s SCP5000 series. Offering a precision bandwidth of DC to 100 MHz with rise time ≤ 3.5 ns, it supports 30 ArMS continuous current and up to 50 A peak. Dual-range output allows 5 A (1 V/A) and 30 A (0.1 V/A) sensitivity, with DC accuracy of ±1% ±1 mA at 5 A and ±1% ±10 mA at 30 A. It is powered directly from the oscilloscope via SAPBUS—no external cables needed. The probe head accommodates conductors up to 5 mm diameter, weighs approx. 270 g, and measures 176 × 39.5 × 18 mm, with unit dimensions of 12 × 12 × 4 in (approx. 305 × 305 × 102 mm). Rated for 300 V CAT I, it integrates automatic zeroing and overload protection. Ideal for high‑fidelity waveform capture in power electronics, switching regulator design, and embedded system testing.

Key Features

• DC–100 MHz bandwidth, with rise time ≤ 3.5 ns for accurate transient detection.
• Measures continuous current up to 30 ArMS, peak current up to 50 A.
• Dual sensitivity: 5 A at 1 V/A, 30 A at 0.1 V/A output range.
• Excellent DC accuracy: ±1% ±1 mA (5 A); ±1% ±10 mA (30 A).
• Powered directly via SAPBUS, no external power supply required.
• Compact & lightweight: 270 g probe weight, head dimensions 176 × 39.5 × 18 mm, unit size 12 × 12 × 4 in.
