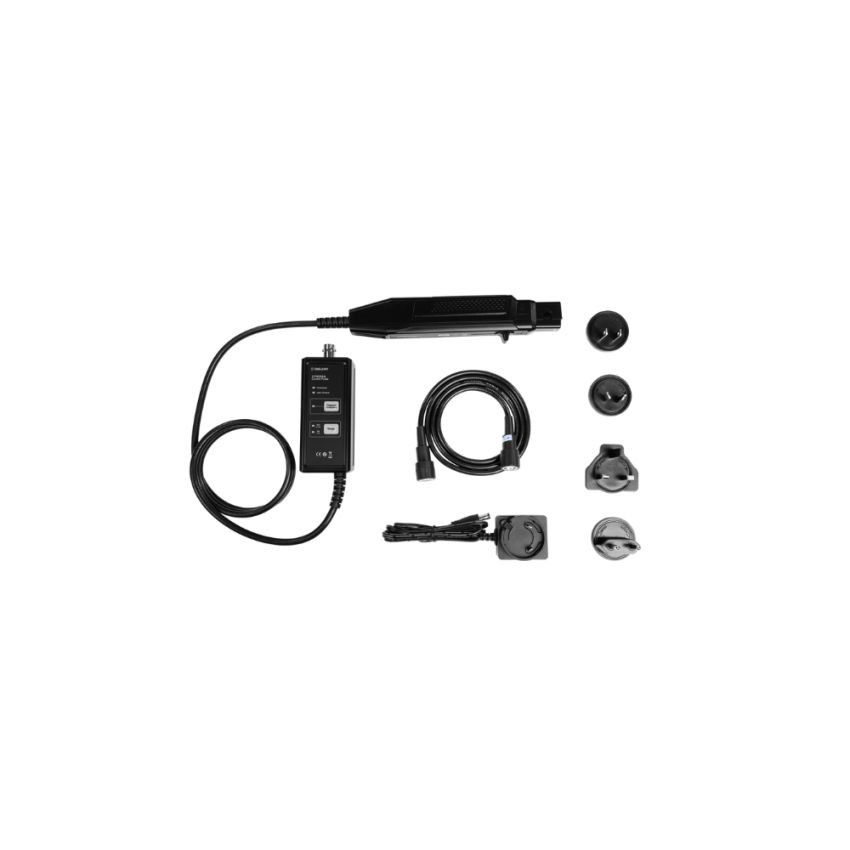

CP6030A AC DC Current Probe 100 MHz Bandwidth 30 ArMS Continuous 50 A Peak

The CP6030A current probe from Siglent is a high-performance AC/DC clamp designed for demanding wideband current measurements up to 100 MHz bandwidth. It supports continuous currents of 30 ArMS and peak currents up to 50 A, with two sensitivity settings: 5 A (1 V/A) and 30 A (0.1 V/A). Offering excellent accuracy—±1% ±1 mA at 5 A and ±1% ±10 mA at 30 A—the CP6030A connects via a 1 m BNC output cable and is powered by a 12 V / 1 A DC adapter. With overload protection (LED + buzzer), standard CAT ratings, and weighing only about 255 g, it’s compact enough for benchtop or field use—ideal for power electronics, industrial diagnostics, and general current waveform analysis.

Key Features

• Measures both AC and DC currents up to 30 ArMS continuous and 50 A peak.
• 100 MHz bandwidth (–3 dB), with rise time ≤ 3.5 ns for accurate high-speed signal capture.
• Dual sensitivity selection: 5 A (1 V/A) and 30 A (0.1 V/A) switching ratio.
• High precision accuracy: ±1% ±1 mA (5 A), ±1% ±10 mA (30 A).
• Features auto-zero calibration, plus overload indicator LED and buzzer for safety.
• Compact and lightweight—≈ 255 g probe weight, cable length 1 m—plus CAT III/II safety compliance.
