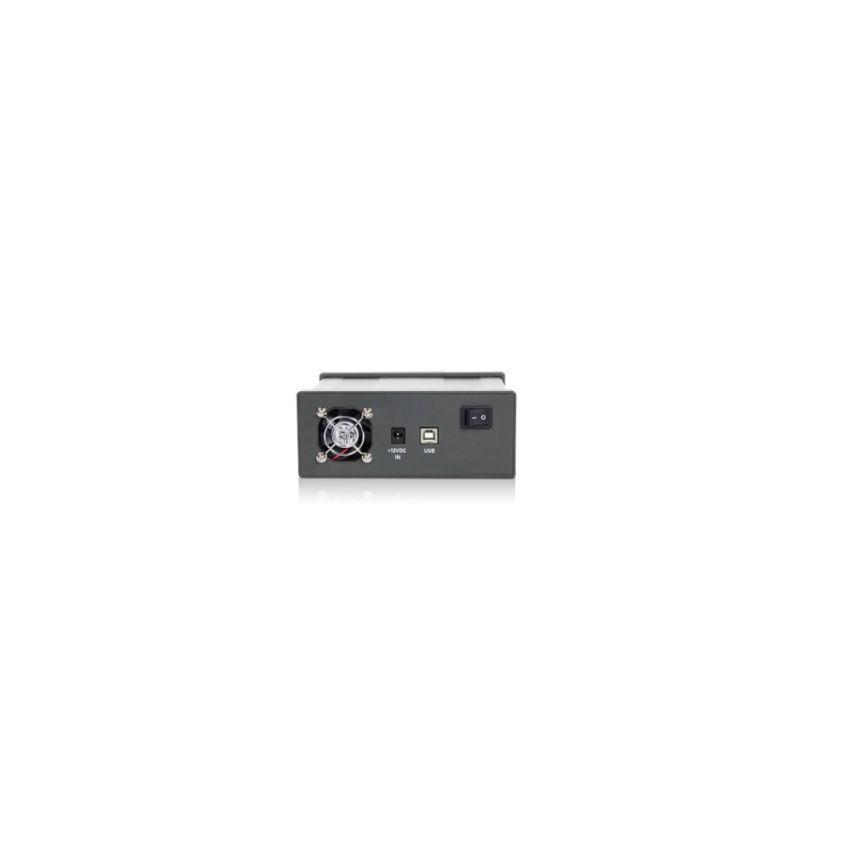

Siglent SSU5502A, Dual-SPDT Mechanical RF Switch, DC to 50 GHz

The Siglent SSU5502A is a compact dual-SPDT mechanical RF switch designed for high-frequency applications up to 50 GHz. It features two independent SPDT switches with 2.4 mm female connectors, controlled via TTL signals. This accessory offers ultra-low insertion loss, excellent impedance matching, fast switching (< 20 ms), and seamless PC control via USB and SCPI through EasySSU software, making it ideal for automated multi-port RF routing in advanced test setups.

Key Features

• Contains 2 independent SPDT switches for flexible signal path selection.
• Ultra-broad bandwidth: DC to 50 GHz, suitable for advanced RF and mmWave testing.
• Precision 2.4 mm female connectors maintain 50 Ohm integrity at high frequencies.
• Remote control via USB and SCPI (EasySSU), with optional TTL-level interfacing.
• Compact form factor (153 × 62.4 × 137.5 mm) allows easy rack or bench integration.
• Delivered with installation essentials: USB cable, power adapter, and user manual.
