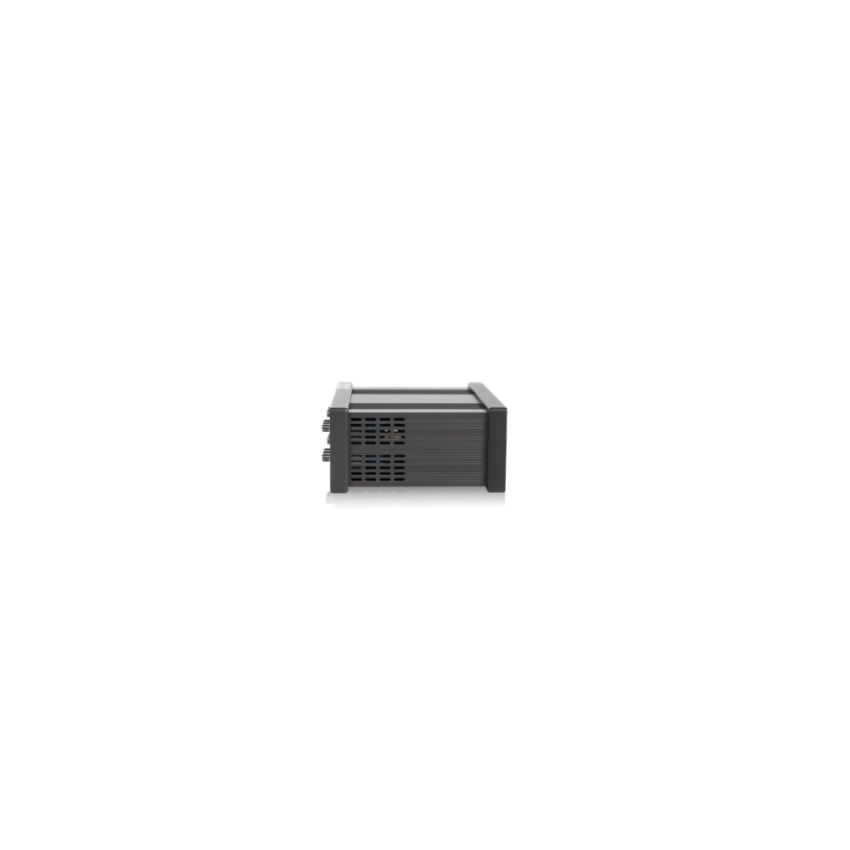

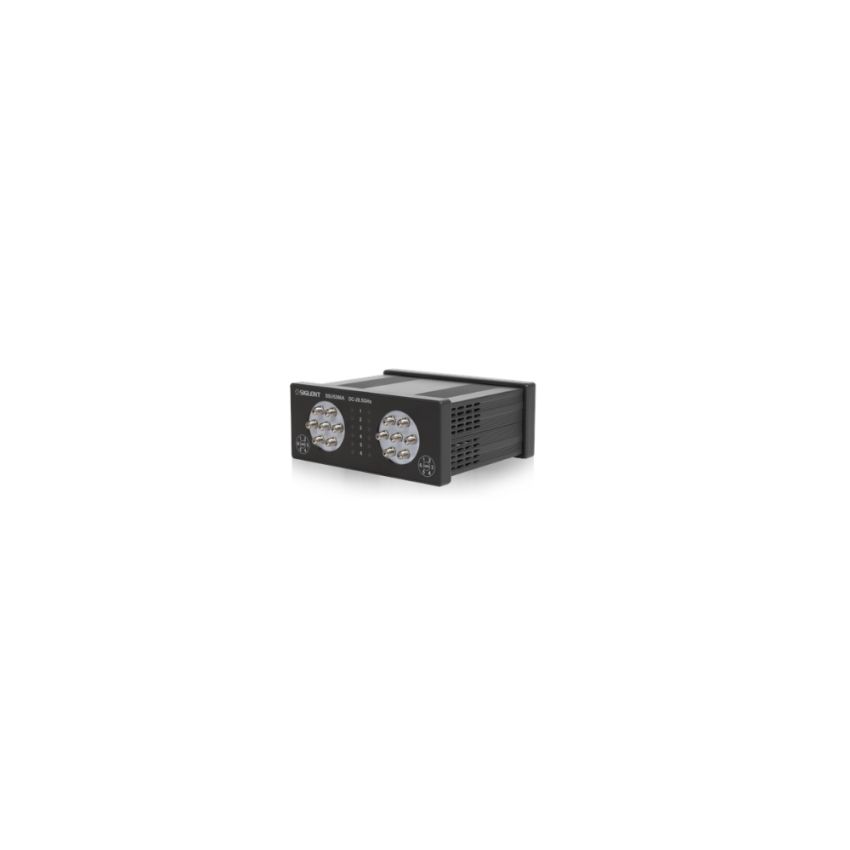

Siglent SSU5265A, RF Mechanical Switch (DC–26.5 GHz), SP6T, SMA Female

The Siglent SSU5265A is a high-performance RF mechanical switch offering a frequency range from DC to 26.5 GHz. It features a single-pole six-throw (SP6T) configuration with SMA female connectors, providing versatile switching capabilities for advanced RF applications. The switch is designed for low insertion loss, excellent impedance matching, and rapid switching times, making it ideal for multi-port testing environments in microwave and millimeter-wave systems. Control is facilitated via USB interface using SCPI commands through VISA or the EasySSU software. This compact device is suitable for integration into automated test setups requiring precise RF signal routing.

Key Features

• Frequency Range: DC to 26.5 GHz
• Switch Configuration: 1 SP6T (Single Pole, Six Throw)
• RF Connectors: SMA female
• Insertion Loss: Low, ensuring minimal signal degradation
• Impedance Matching: Excellent, maintaining signal integrity
• Switching Time: Extraordinarily short, enhancing measurement efficiency
