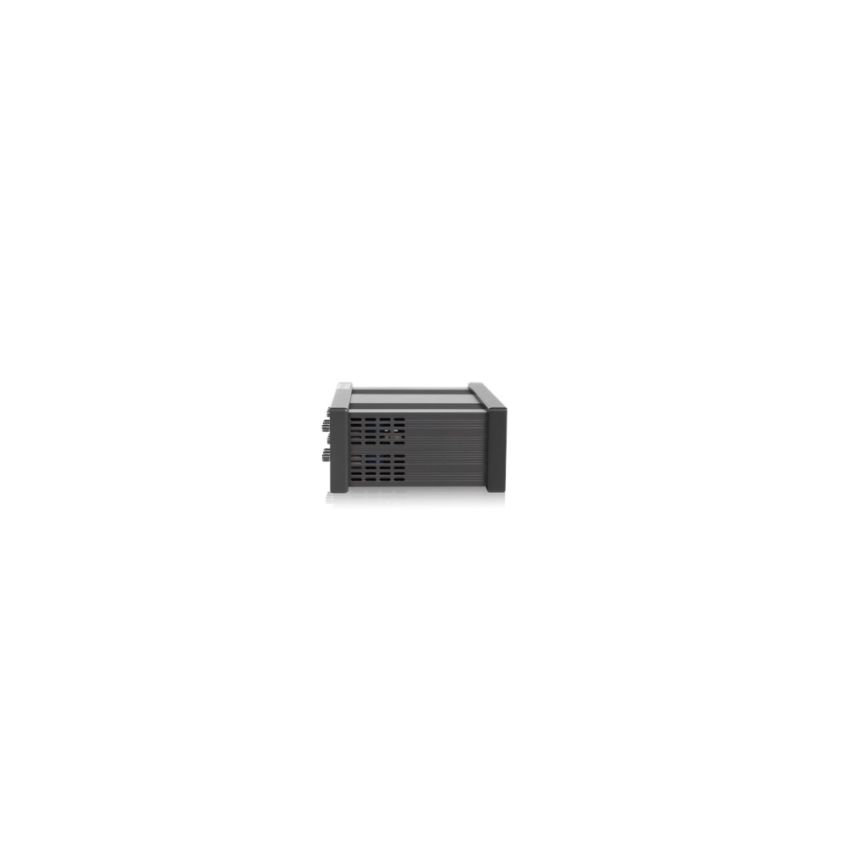

Siglent SSU5264A, RF Mechanical Switch (DC–26.5 GHz), 4 SPDT Ports, SMA Female

The Siglent SSU5264A is a high-performance RF mechanical switch designed for multi-port testing applications in the DC to 26.5 GHz frequency range. It features four Single Pole Double Throw (SPDT) switches, each with two test ports, enabling flexible routing in complex RF measurement setups. The switch is controlled via TTL logic levels and offers USB connectivity for integration with test systems. It is compatible with Siglent's EasySSU software and supports SCPI commands for remote control, making it ideal for automated testing environments.

Key Features

• Four independent SPDT switches for versatile multi-channel RF routing.
• Coverage from DC to 26.5 GHz—optimized for RF and microwave systems.
• Precision SMA female connectors deliver low insertion loss and 50 Ω integrity.
• Remote control via USB or SCPI using EasySSU/VISA for efficient automation.
• Compact 19″-friendly design (153 × 62.4 × 137.5 mm) for streamlined rack or bench integration.
• Includes essential setup accessories: USB cable, power adapter, and user manual.
