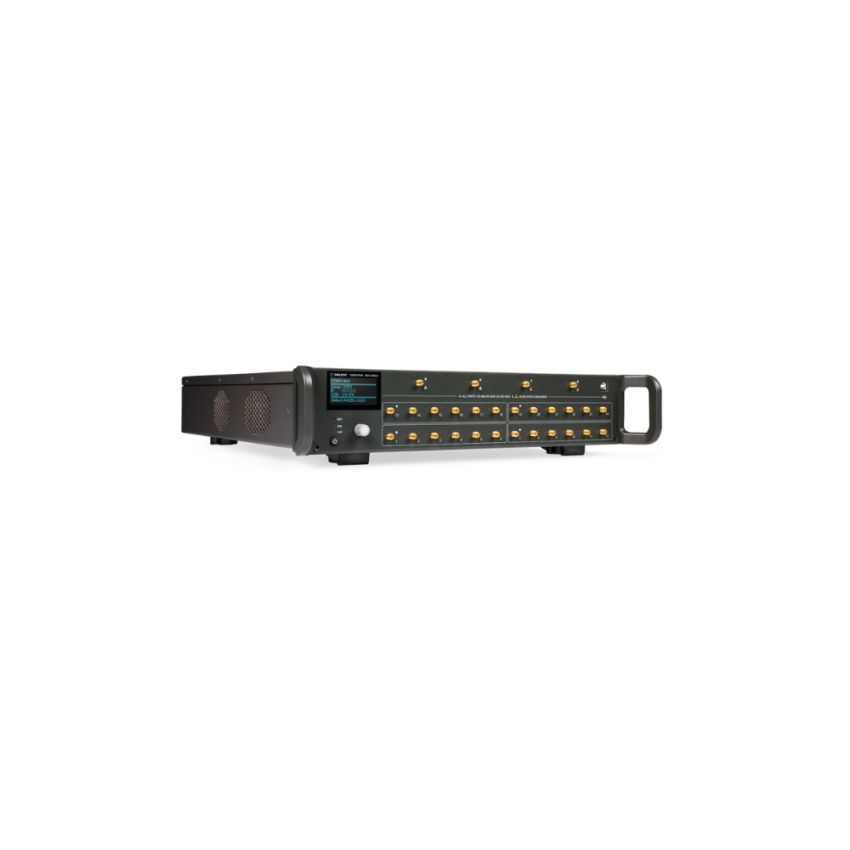

Siglent SSM5142A, RF Switch Matrix 4‑Input 12‑Output 9 kHz‑9 GHz

The Siglent SSM5142A is a high-performance 4×12 RF switch matrix expanding the port capacity of analyzers and signal sources. Covering 9 kHz to 9 GHz, it features 3.5 mm female connectors, a built-in 2.4‑inch LCD for configuration, and multiple remote interfaces. Ideal for automated testing, calibration, and multi‑port RF routing in labs and production environments.

Key Features

• Four RF input ports and twelve RF output ports with 3.5 mm female connectors
• Frequency range from 9 kHz to 9 GHz
• Maximum RF input power of 20 dBm and DC voltage tolerance up to 35 V
• 2.4‑inch LCD for local configuration and status display
• Interfaces include USB Host/Device, LAN, and Direct Control (in/out) for integration and remote control
• Simplified multi‑port calibration algorithm enhances efficiency in automated test systems
