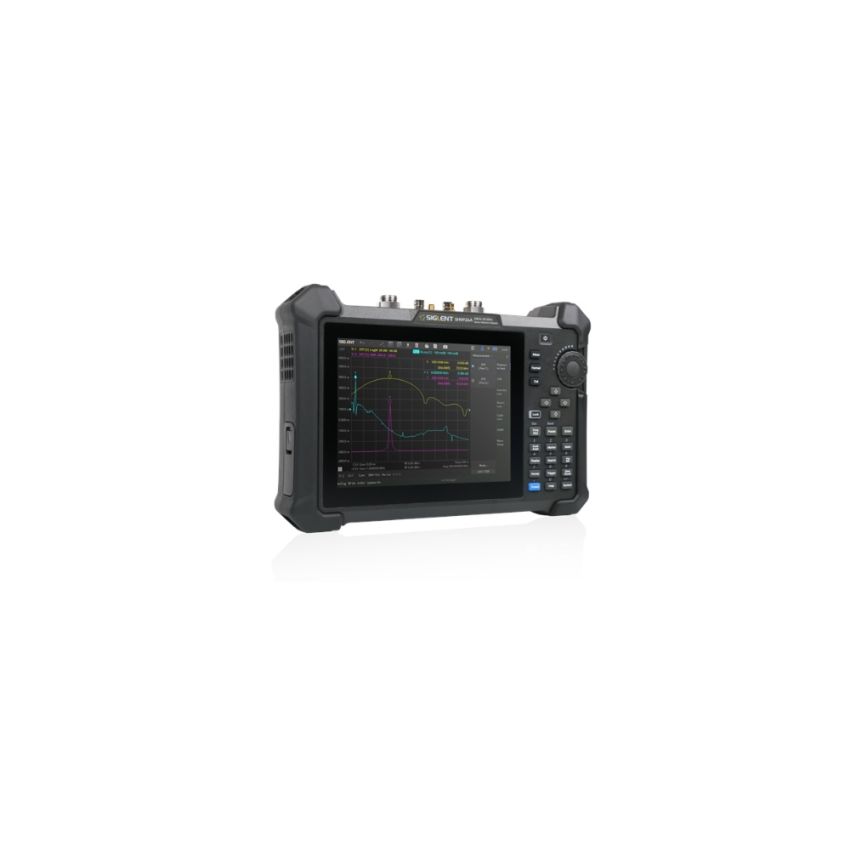

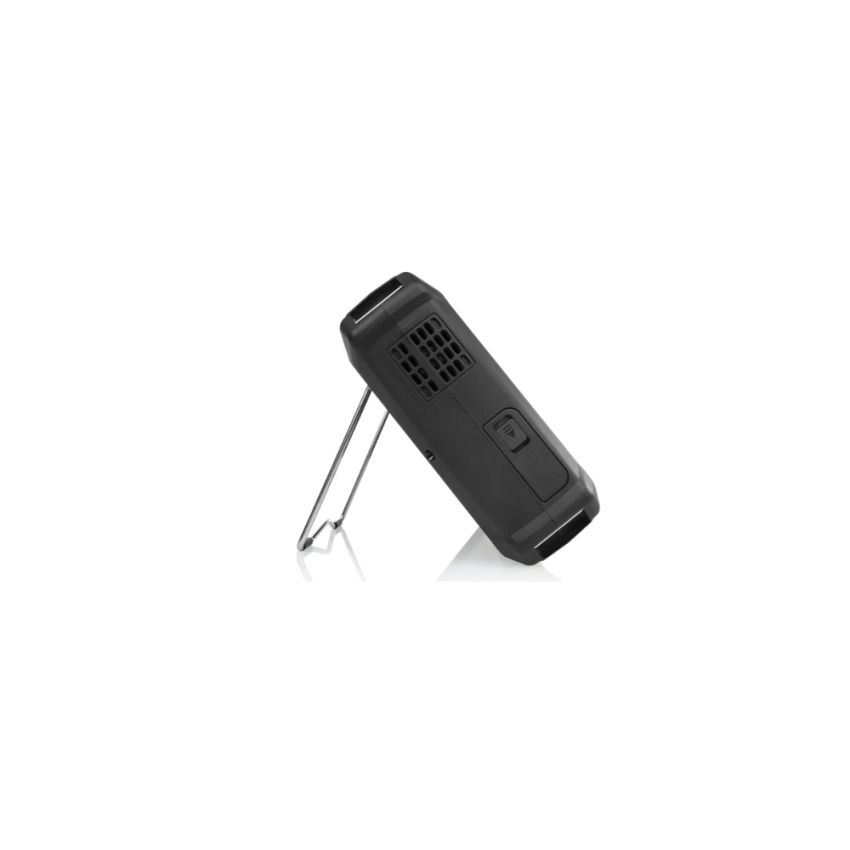

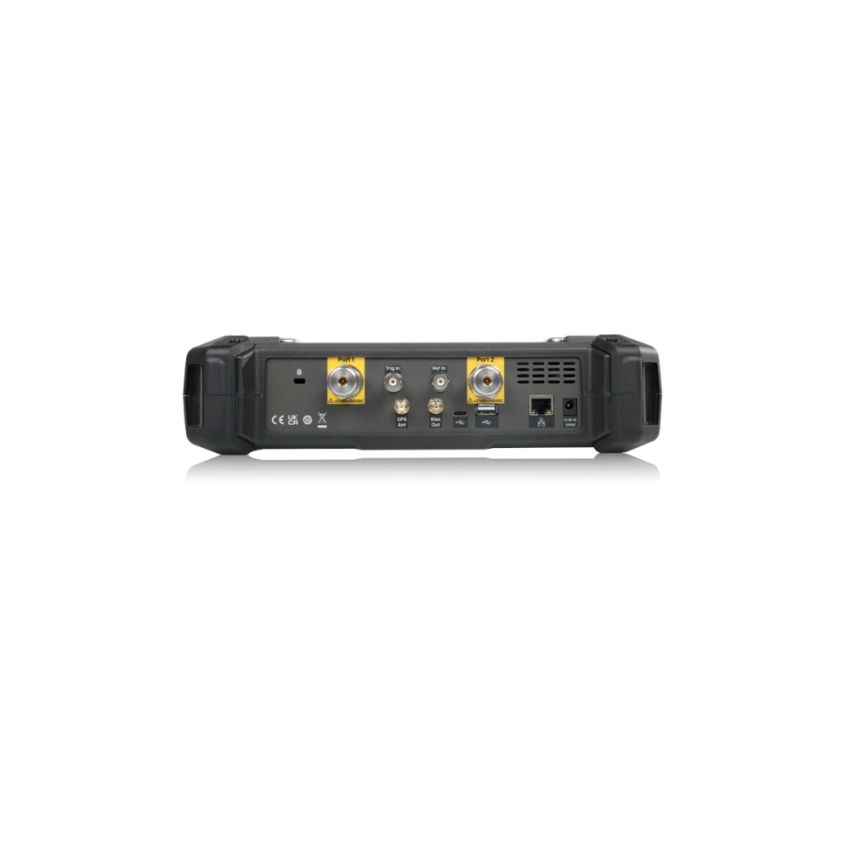

Siglent SHN926A, Portable Vector Network Analyzer, 30 kHz – 26.5 GHz, 2 Ports

The Siglent SHN926A is a handheld vector network analyzer designed for field and laboratory testing of RF components, cables, and antenna systems. With a frequency range extending from 30 kHz to 26.5 GHz, it offers comprehensive measurement capabilities including S-parameters, time-domain analysis, and pulse measurements. The device features a 2-port configuration, an 8.4-inch multi-touch display, and supports various calibration and measurement modes, making it suitable for applications in R&D, production, and maintenance of RF systems.

Key Features

• Portable dual-port VNA with frequency range of 30 kHz–26.5 GHz.
• Exceptional precision with 1 Hz frequency resolution and 0.01 dB amplitude resolution.
• High 110 dB typical dynamic range for handling a broad range of signal amplitudes.
• Includes essential features such as CAT/DTF, bias-tee, and GPS timestamping and location logging.
• Long-lasting Li-ion battery, lightweight (~3.2 kg), and up to 4 hours runtime.
• Multi-mode analysis capability including time-domain, optional enhancements (TDR, spectrum), flexible sweep types, and comprehensive calibration support.
