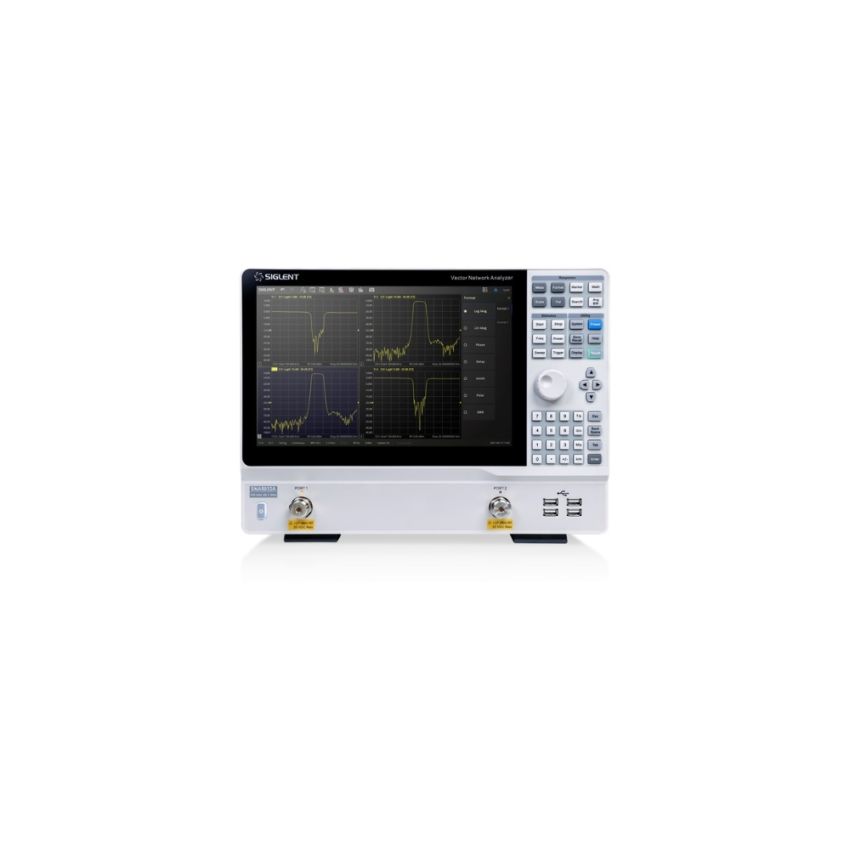

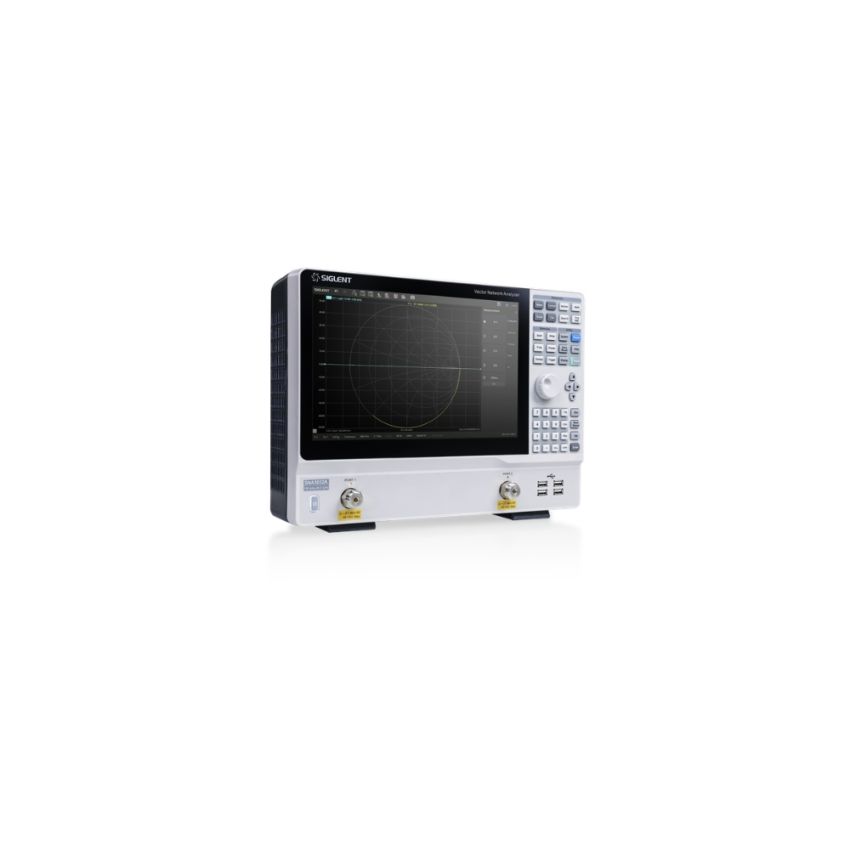

Siglent SNA5032A, 2-Port Vector Network Analyzer, 100 kHz–26.5 GHz, 12.1‑inch Touch Display

The Siglent SNA5032A is a precision 2-port vector network analyzer covering 100 kHz to 26.5 GHz. It supports full S-parameter and differential parameter measurements, as well as time-domain analysis. Equipped with a large 12.1-inch touch display and HDMI output, it offers intuitive control and enhanced visibility. Measurement capabilities include frequency-domain sweeps, bias‑tee support, fixture simulation, and multiple calibration methods (SOLT, TRL, enhanced response). Interfaces include LAN, USB Device, USB Host, and optional GPIB, with remote command support via SCPI, LabVIEW, IVI, VXI‑11, socket, telnet, or embedded Web Server.

Key Features

• Wideband coverage from 100 kHz to 26.5 GHz with dual‑port measurements.
• Ultra‑fine measurement precision with 1 Hz frequency resolution and 0.05 dB level resolution.
• High dynamic range of 125 dB, enabling sensitive and accurate measurements.
• Five sweep modes including Linear, Log-Frequency, Power, CW-Time, and Segment Sweep.
• Supports advanced calibration options: Response, Enhanced Response, TRL, SOLT, SOLR.
• Operated via a 12.1‑inch touch display, with full remote control via LAN, USB, GPIB, web interface, and SCPI/Telnet.
